- 79 -

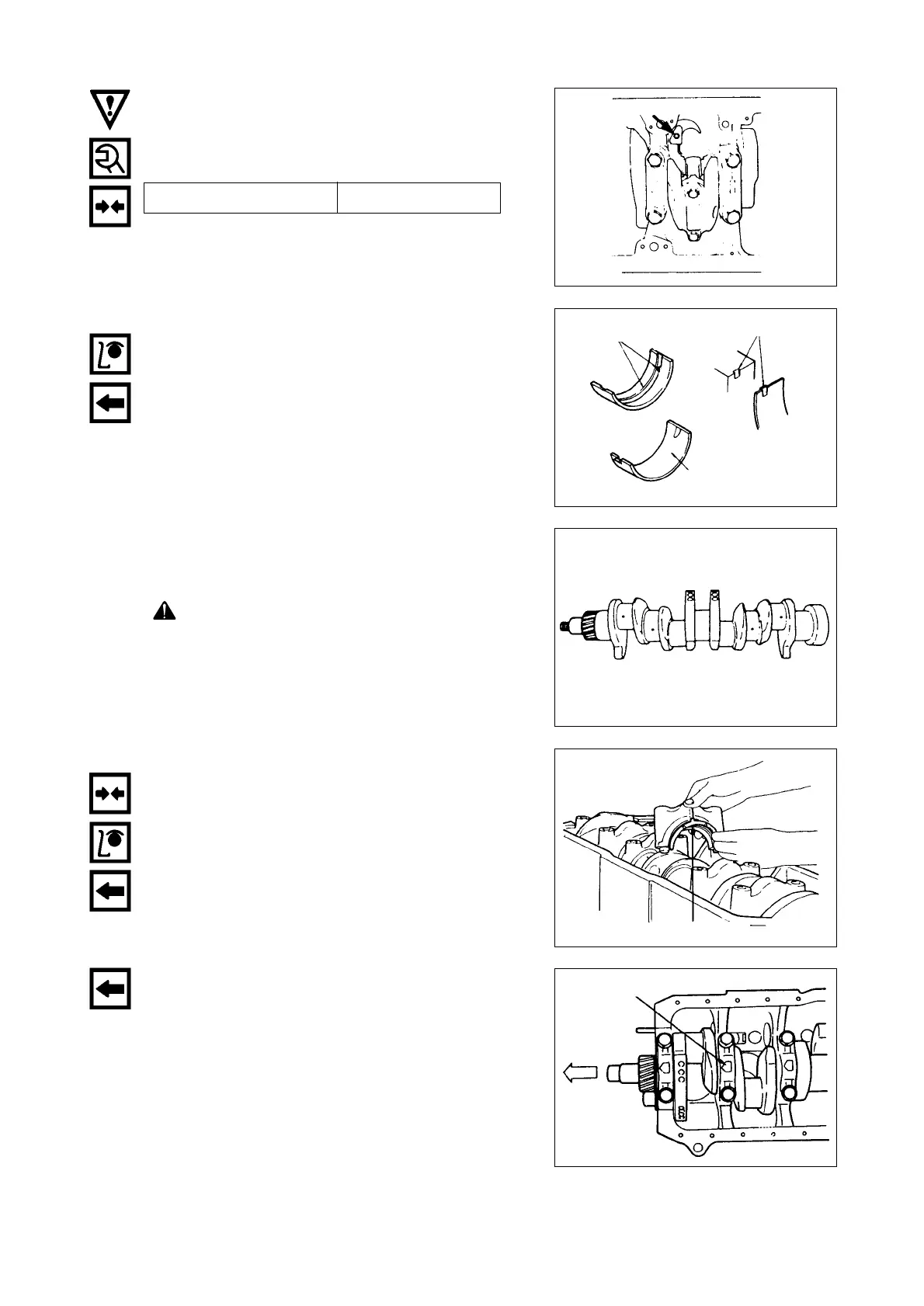

Oil Jet (DB58T)
Assemble the oil jet nozzle not so as to be
damaged it.
Caution
Crank shaft Bearing (Upper Half)
Crank shaft Bearing(Lower Half)
There are not oil port at centering of lower half
bearing, therefore
there are oil port and home at the other
bearing.
Crank shaft
Assemble the crank shaft gear so as to be front
combined side.
CAUTION
Make sure the part number
because it may be
difference upon engines.
Thrust washer
Assemble thrust washer so as to be connected
oil home in the bearing to crank shaft side.
Crank shaft Bearing Cap
1) Spread the engine oil at the bearing cap bolt.
2) Assemble the bearing cap at the crank shaft.
Rightly direct arrow to inside engine.
3) Systematically tighten bearing cap bolt as it
is a specified torque. (see figure)
EJM2121S
EJM2122S
EJM2123S
EJM2124S
EJM2125S
Oil Jet Torque 2.1±0.5 kg∙m
Oil port and oil
home (uppter part)
Rightly set up
No oil port and oil
home,
Center part.
Front
Front
Arrow
Oil home
