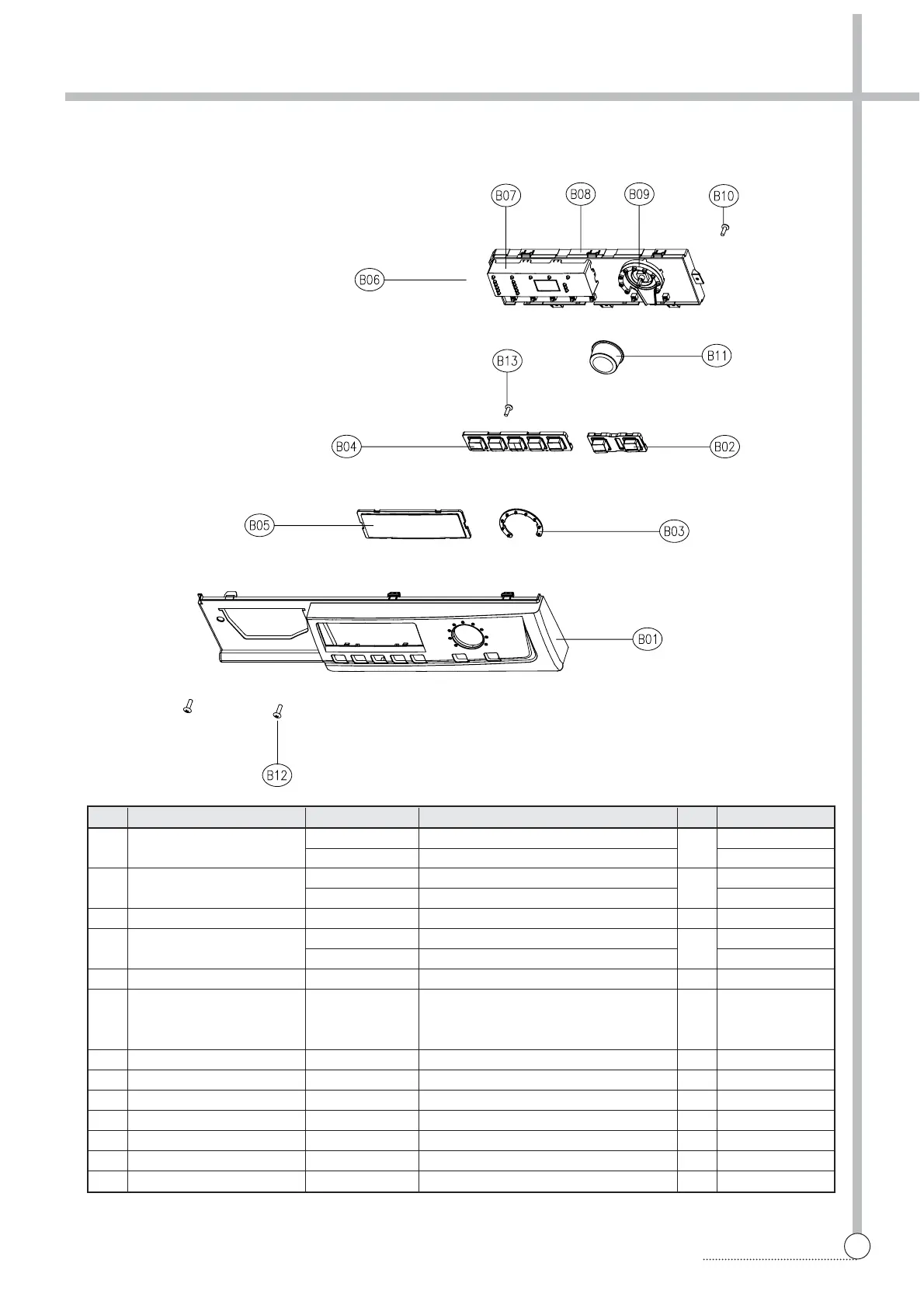

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-FT1X3X SERIES)
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
B01 PANEL F
3614285802 HIPS
1
DWD-FT1X31(2)
3614285810 ABS+SPRAY DWD-FT1X33
B02 BUTTON POWER
3616635300 ABS
1
DWD-FT1X31
3616635310 ABS+SPRAY DWD-FT1X32(3)
B03 WINDOW DIAL 3615504200 ABS-TR 1
B04 BUTTON SELECT
3616635400 ABS
1
DWD-FT1X31
3616635410 ABS+SPRAY DWD-FT1X32(3)
B05 WINDOW DISPLAY 3615504300 ABS-TR 1
Refer to
B06 PCB AS PRPSSWB--- DWD-FT1XXX SERIES 1
Detailed Part Code
of PCB AS
B07 HOLDER DISPLAY 3613051700 HIPS 1
B08 CASE PCB 3611143200 HIPS 1
B09 HOLDER DIAL 3613051500 HIPS 1
B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B11 KNOB DIAL 3613405210 ABS+SPRAY 1
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
B13 SCREW TAPPING 7122401211 T2S TRS 4x12 MFZN 2
To Next Page
