Daewoo DWD-FT1011 - Panel Front as (Dwd-Ft1 X4 X Series)

24

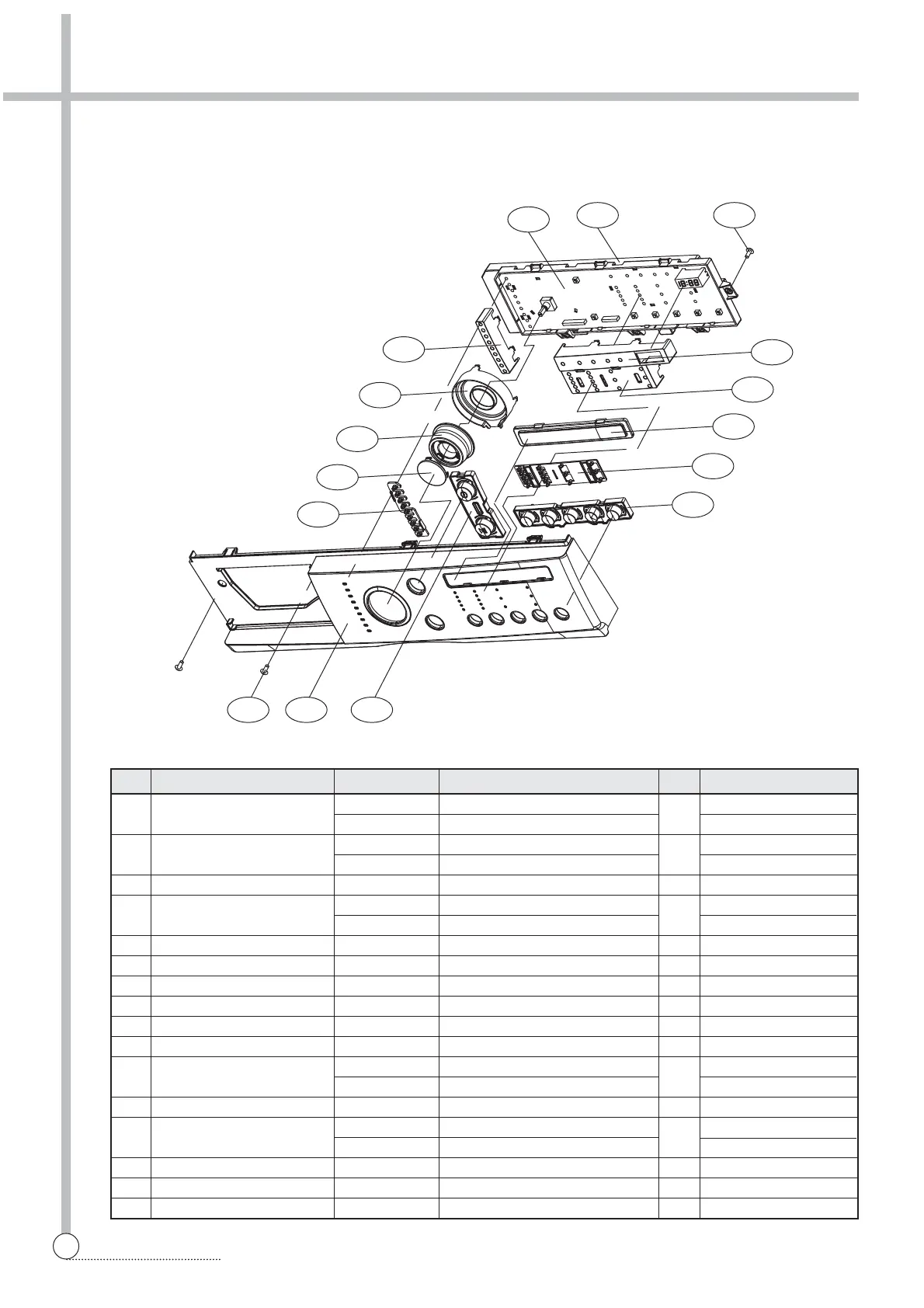

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-FT1X4X SERIES)
B02
B01
B14
B05
B07
B06
B08
B16
B15
B09
B11
B13
B03
B04
B12
B10
B01 PANEL F
36142T1502 HIPS
1
DWD-FT1X41(2)
36142T1510 ABS + SPRAY DWD-FT1X43
B02 BUTTON POWER
3616639100 ABS
1
DWD-FT1X41
3616639110 ABS + SPRAY DWD-FT1X42(3)
B03 WINDOW COURSE 3615507000 ABS-TR 1
B04 BUTTON SELECTION
3616639000 ABS
1
DWD-FT1X41
3616639010 ABS + SPRAY DWD-FT1X42(3)
B05 WINDOW DISPLAY 3615506800 ABS-TR 1
B06 PCB AS PRPSSWB--- DWD-FT1X4X SERIES 1
Refer to Detailed Part Code of PCB AS
B07 HOLDER LED SELECTION 3613055300 HIPS 1
B08 CASE PCB 36111T1500 HIPS 1
B09 HOLDER DIAL 3613055500 HIPS 1
B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4
B11 KNOB DIAL OUTER
3613406600 ABS
1
DWD-FT1X41
3613406610 ABS + SPRAY DWD-FT1X42(3)
B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
B13 KNOB DIAL INNER
3613406700 ABS
1
DWD-FT1X41
3613406710 ABS + SPRAY DWD-FT1X42(3)
B14 WINDOW SELECTION 3615506900 ABS-TR 1
B15 HOLDER LED COURSE 3613055400 HIPS 1
B16 DECORATOR WINDOW 3611689900 PC FILM 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
