DIRECTIONS

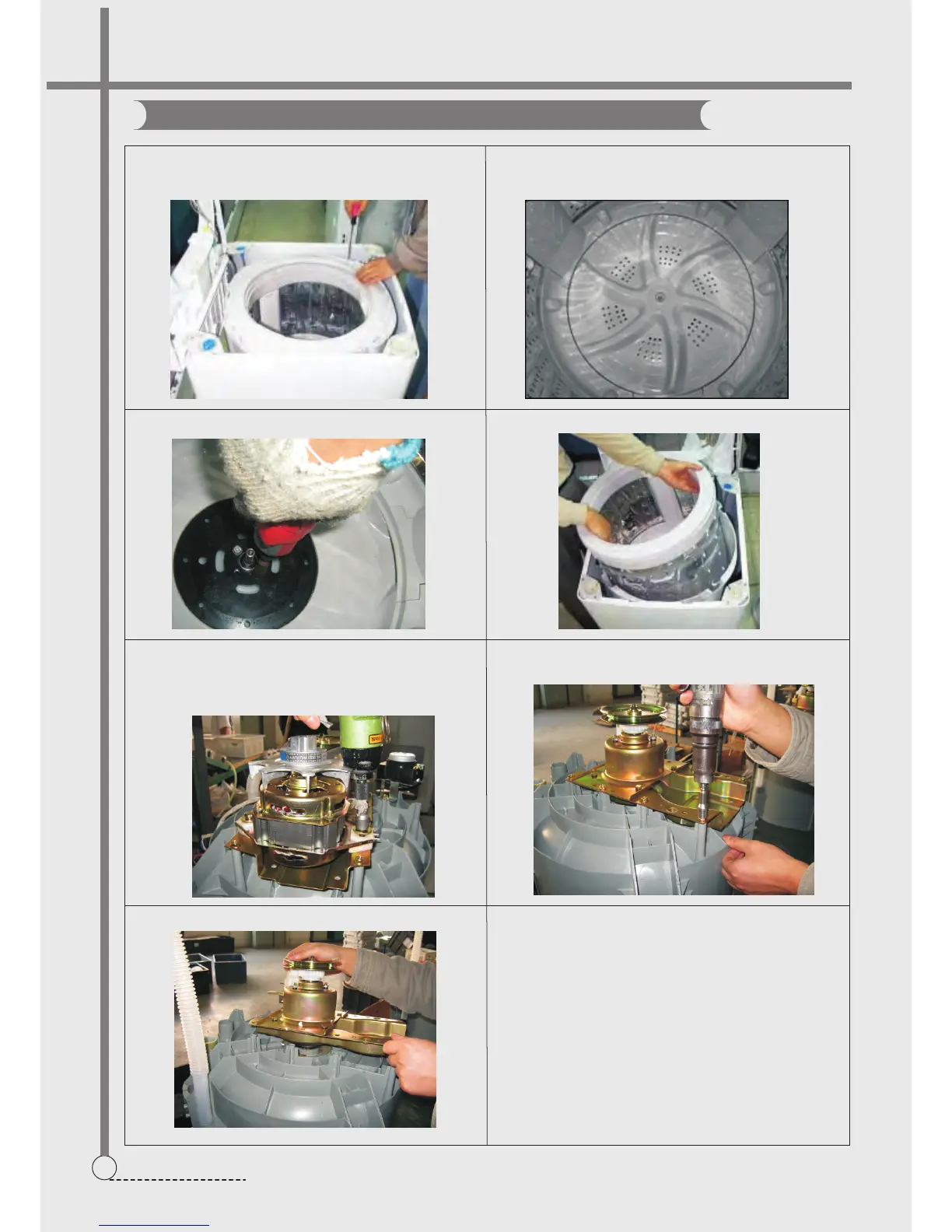

GEAR MECHANISM ASS’Y REPLACEMENT
1 Raise the control panel seat on the outer cabinet.
2 Loosen four screws mounting outer tub cover and
remove outer tub cover from the tub ass's.
3 Loosen the pulsator mounting screw and remove the
pulsator.
4 Remove the four screws by screw drive.
5 Remove the tub ass’y.
6 Lay the front of the washing machine on the floor.
7 Remove four screws
then remove gear protect.
8 Remove the V-belt.
9
Remove 2 special bolts of motor, then remove motor.
11 Pull out the gear mechanism ass’y.
10 Remove several special bolts of gear mechanism ass’y
by using a box wrentch.
To Next Page
