8
FEATURE

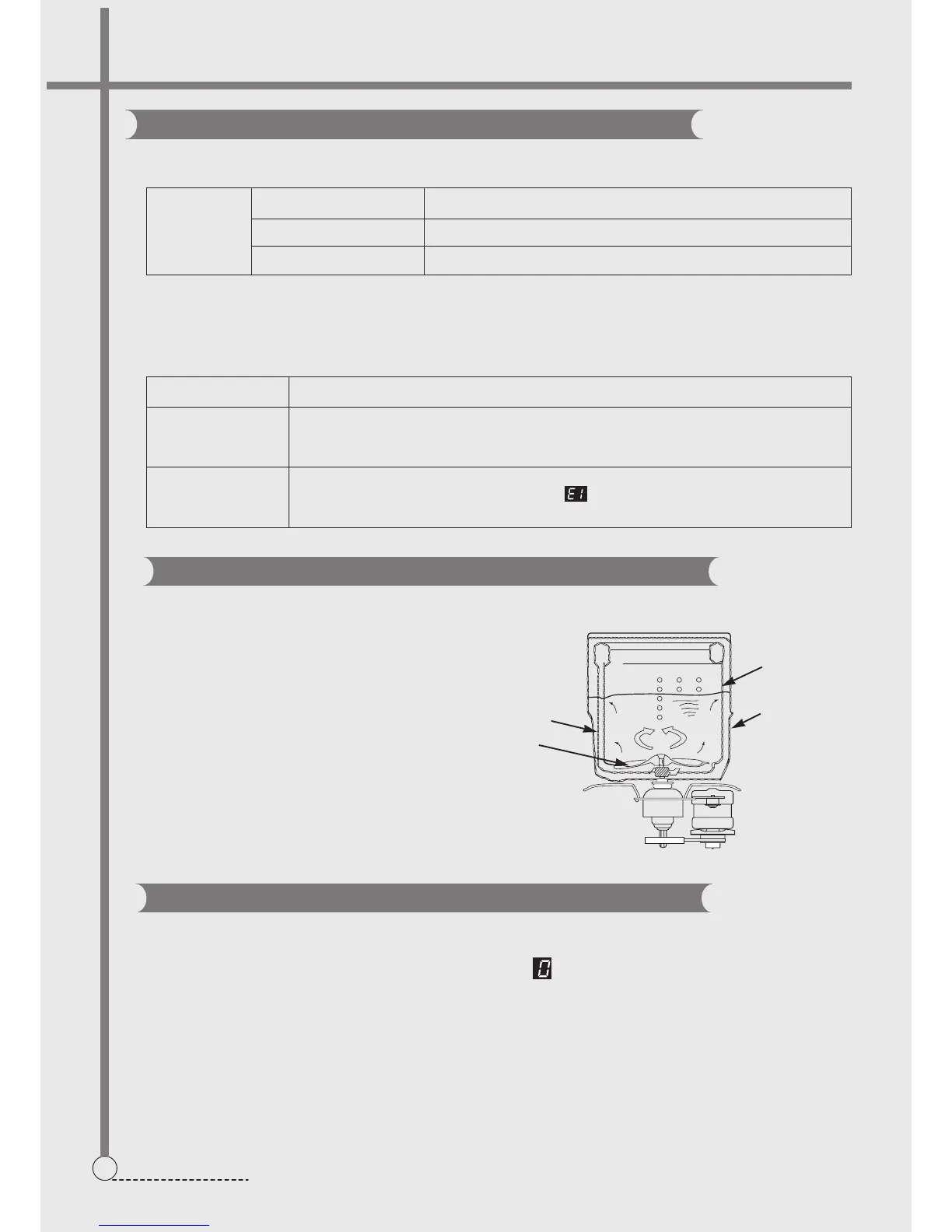

FUNCTIONAL PRINCIPLE
The micom can remember the time from the begining of drain to reset point when the pressure switch reaches
to”OFF”point
Draining
Good draining The washer begins spin process after drainage.
condition
Bad draining Draininig time is prolonged.
No draining Program is stopped and gives the alarm.
vement of the Program
Drain Time
Mo
Less than
Continue draining
4 minutes
More than
Program stops and gives the alarm with blinked on display lamp.
4 minutes
AUTOMATIC DRAINNING TIME ADJUSTMENT
This system adjusts the draining time automatically according to the draining condition.
CIRCULATING-WATER COURSE AND LINT FILTER
Tub
Outer tub
Water
channel
Pulsator
CIRCULATING-WATER
The washing and rinsing effects have been
improved by adopting the water system in
which water in the tub is circulated in a
designed pattern.
When the pulsator rotates during the washing
or rinsing process, the water below the pul-
sator fans creates a water currents as shown
in figure.
The water is then discharged from the upper
part of the tub through the water channel.
About 40 L/min. water is circulated at the "8"
water level, standard wash load and standard
water currents.
When the START/PAUSE button is pressed, the residual time (min.) is displayed on the time indicator, and it will be
counted down according to process.
When operation is finished, the TIME INDICATOR will light up .
RESIDUAL TIME DISPLAY
