G424 Service Manual Base Engine Service Procedure133
Rocker Arms And Camshaft
Removal and Installation

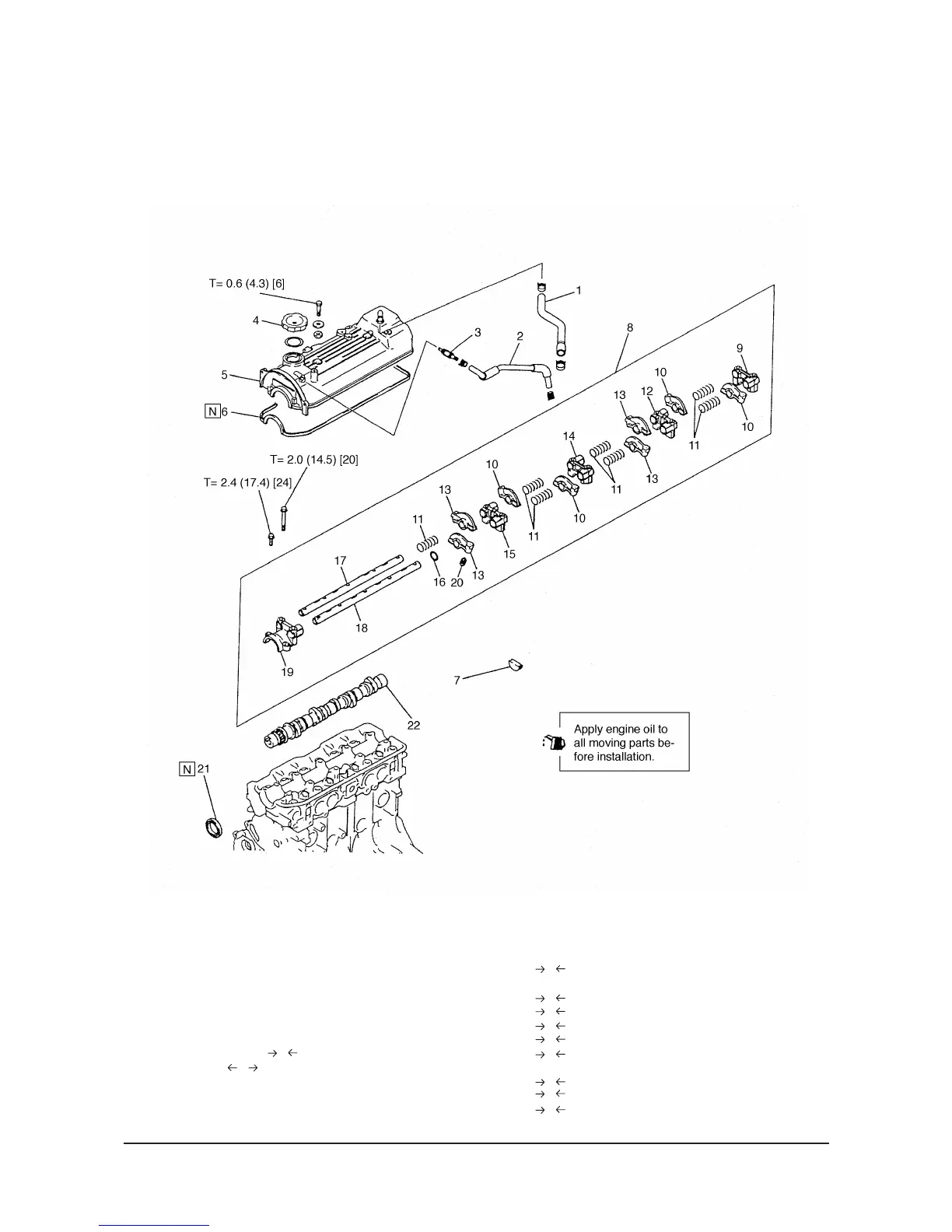

Removal steps
1. Breather hose
2. P.C.V. hose
3. P.C.V. valve
4. Oil filler cap
5. Rocker cover
6. Gasket
7. Semi-circular packing
8. Rocker arms and rocker shafts
9. Rear bearing cap
10. Rear arm D
11. Spring
12. Bearing cap No. 4
13. Rocker arm C
14. Bearing cap No. 3
15. Bearing cap No. 2
16. Wave washer
17. Right rocker shaft
18. Left rocker shaft
19. Front bearing cap
20. Lash adjuster
21. Oil seal
22. Camshaft
D
D
D
C
B
B
E
F
A
G
A
6EN1896
