Daewoo GC30E-3 - Cylinder Head and Valves

G424 Service Manual Base Engine Service Procedure139
Cylinder Head And Valves
Removal and Installation

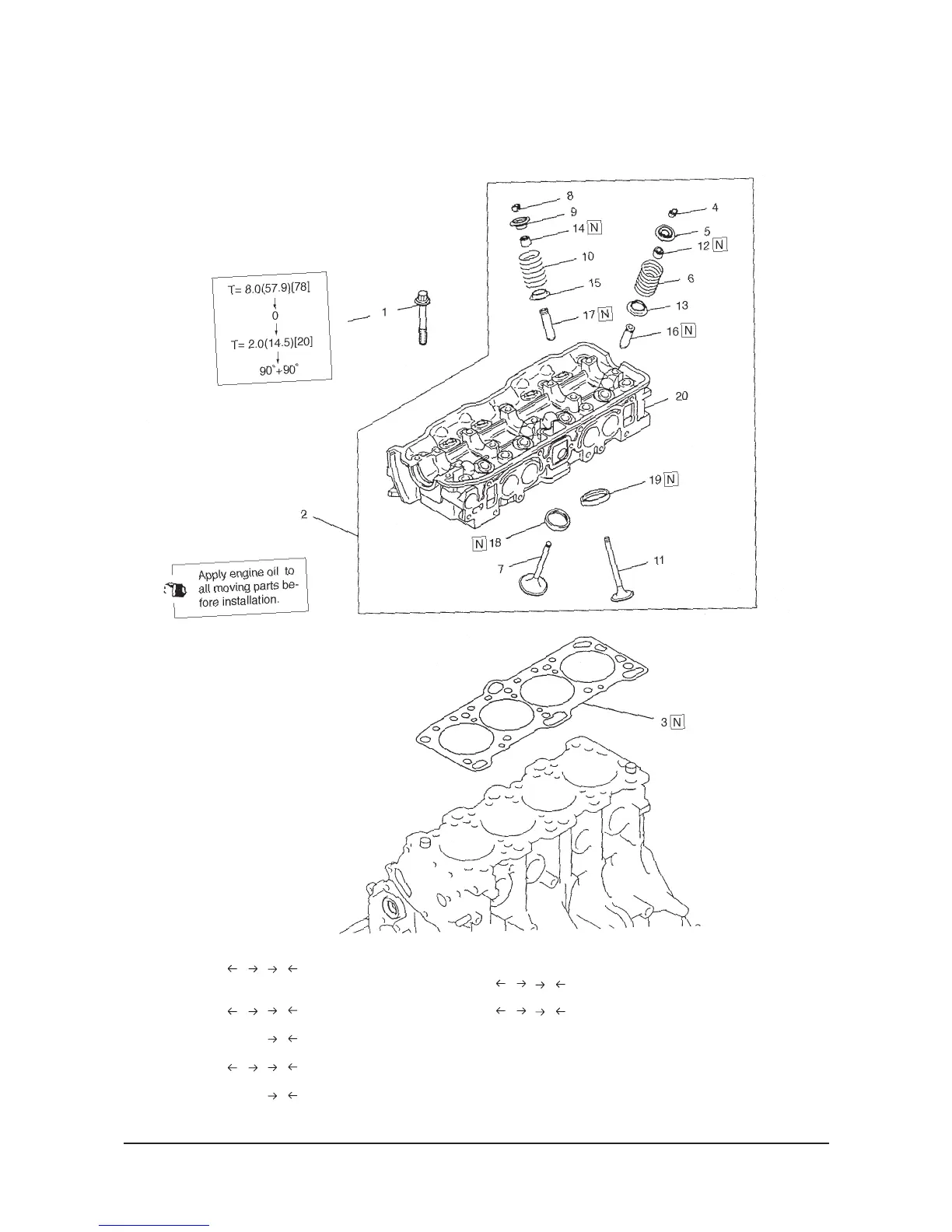

Removal steps
1. Cylinder head bolt
2. Cylinder head assembly
3. Cylinder head gasket
4. Retainer lock
5. Valve spring retainer
6. Valve spring
7. Intake valve
8. Retainer lock
9. Valve spring retainer
10. Valve spring
11. Exhaust valve
12. Valve stem seal
13. Valve spring seat
14. Valve stem seal
15. Valve spring seat
16. Intake valve guide
17. Exhaust valve guide
18. Intake valve seat
19. Exhaust valve seat
20. Cylinder head
A
A
C
C
D
C
B
C
B
A
B
B
6EN1897
