G424 Service Manual Gasoline Fuel System64

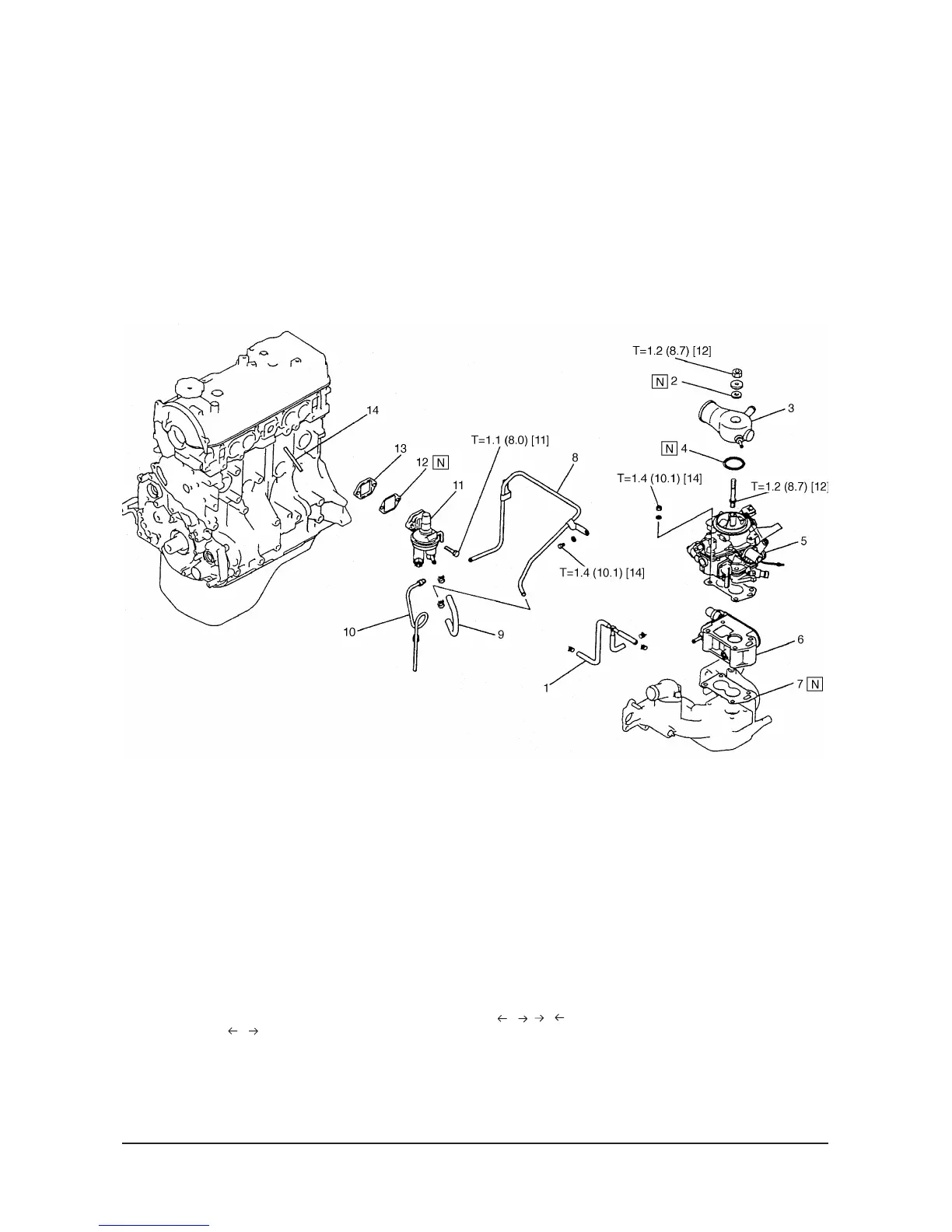

Removal and Installation
Removal steps
1. Return set hose assembly
2. Oil seal
3. Air horn
4. Gasket
5. Carburetor
6. Air governor
7. Gasket
8. Fuel pipe
9. Fuel hose
10. Fuel pipe
11. Fuel pump
12. Gasket
13. Insulator
14. Push rod
AB
A
6EN1893
