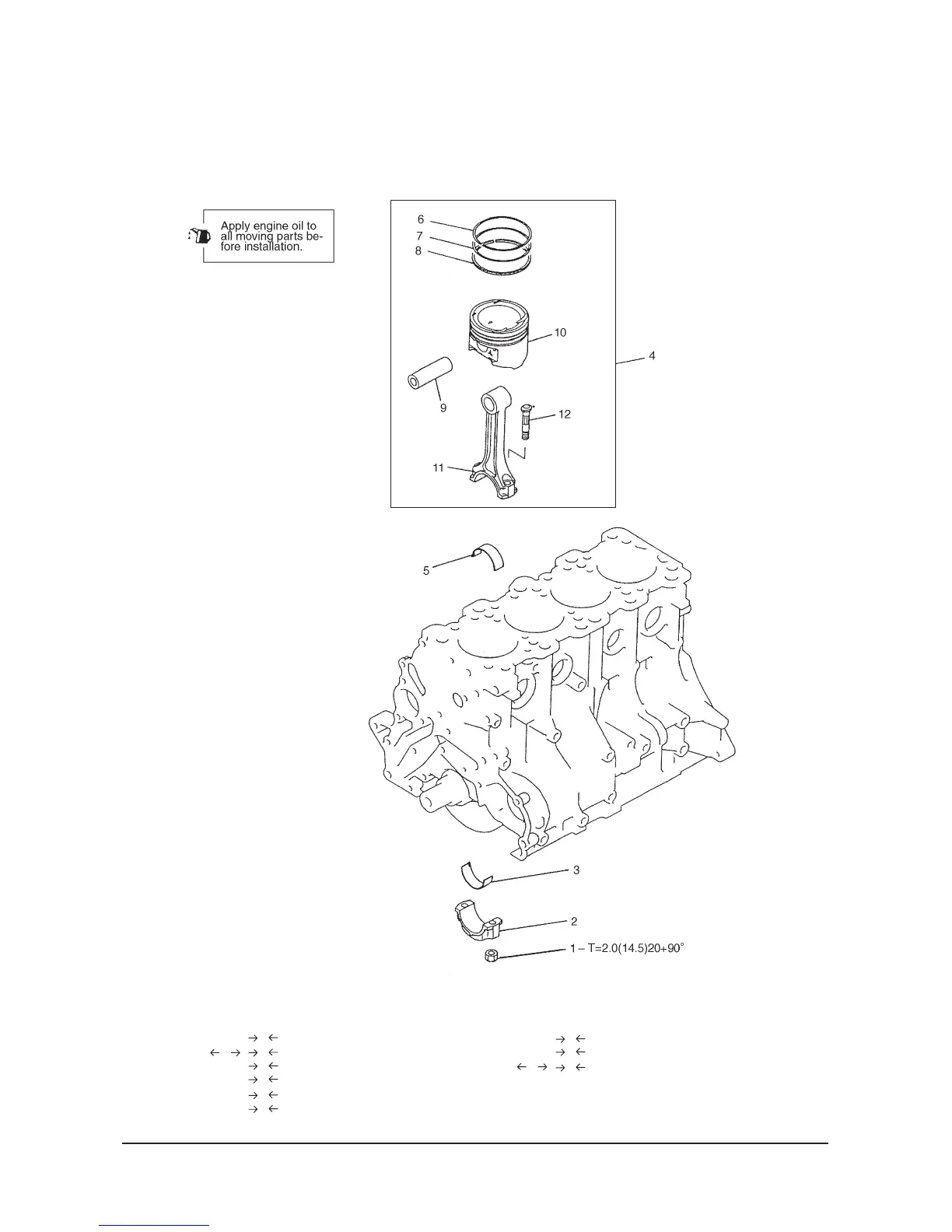

G424 Service Manual Base Engine Service Procedure154
Piston And Connecting Rod
Removal and Installation
Removal steps
1. Nut
2. Connecting rod cap
3. Connecting rod bearing
4. Piston and connecting rod assembly
5. Connecting rod bearing
6. Piston ring No. 1
7. Piston ring No. 2
8. Oil ring
9. Piston pin
10. Piston
11. Connecting rod
12. Bolt
C
B
AB
G
F
E
D
E
C
A
6EN1899
