G424 Service Manual Base Engine Service Procedure162

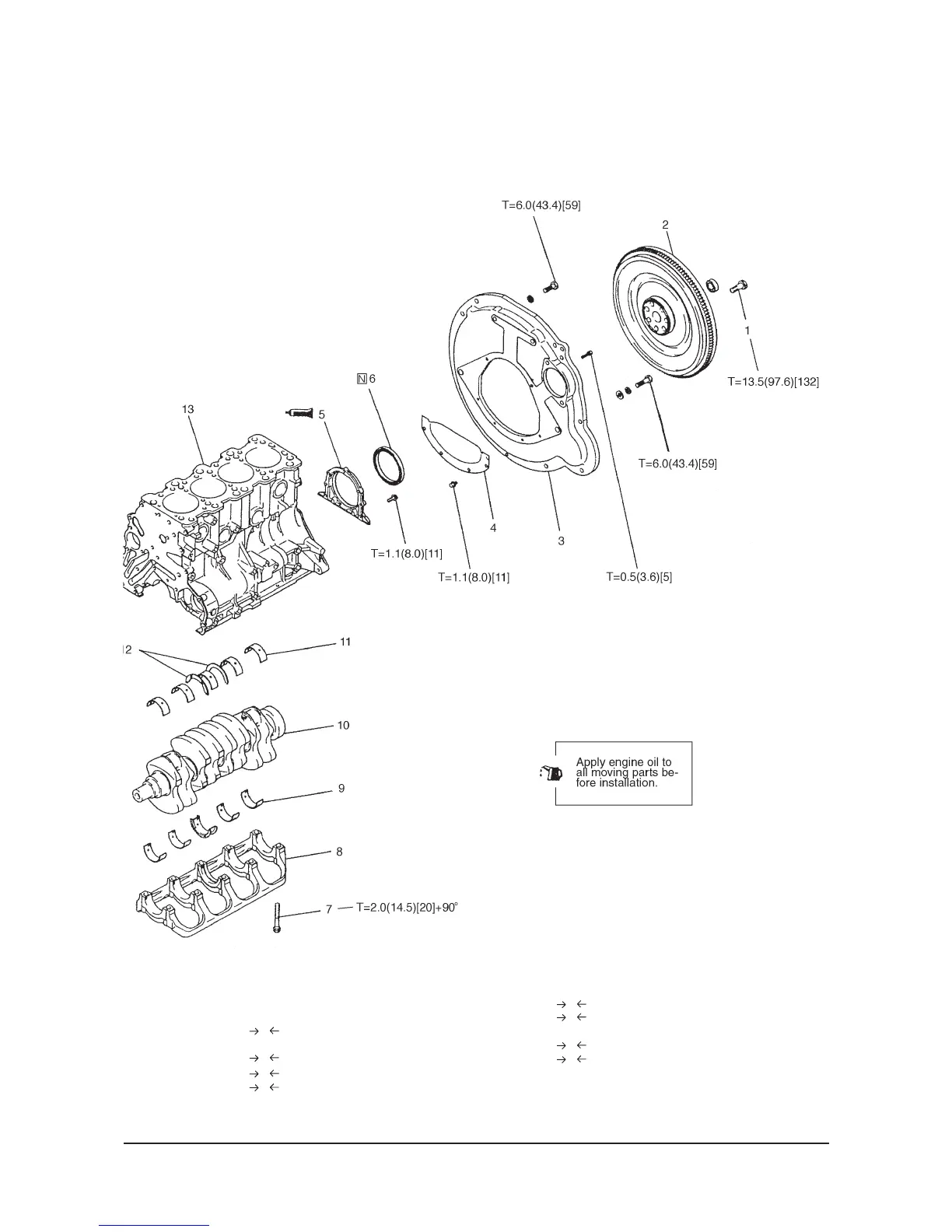

Crankshaft And Cylinder Block
Removal and Installation
Removal steps
1. Flywheel bolt
2. Flywheel
3. F/W Housing
4. Cover - F/W Housing
5. Oil seal case
6. Oil seal
7. Crankshaft bearing cap bolt
8. Crankshaft bearing cap
9. Crankshaft bearing lower
10. Crankshaft
11. Crankshaft bearing upper
12. Thrust bearing
13. Cylinder block
C
B
B
B
F
E
D
C
6EN1900
To Next Page
