ADJUSTMENT OF BUCKET POSITION SWITCH
MEGA 200-V
When bucket lever is held in crowd detent position, after bucket has been dumped, bucket will pivot toward
crowd position. Once full crowd position has been reached, bucket lever will automatically return to
"NEUTRAL" position. If bucket is lowered after lever returns to "NEUTRAL," bucket will automatically
position itself to be in a preselected digging position (usually flat). To adjust bucket to desired preselected
digging position, perform the following steps.
1. Operate controls to place bucket on ground and in desired digging position (usually flat). Return
bucket lever to its "NEUTRAL" position.
2. Shut down engine.

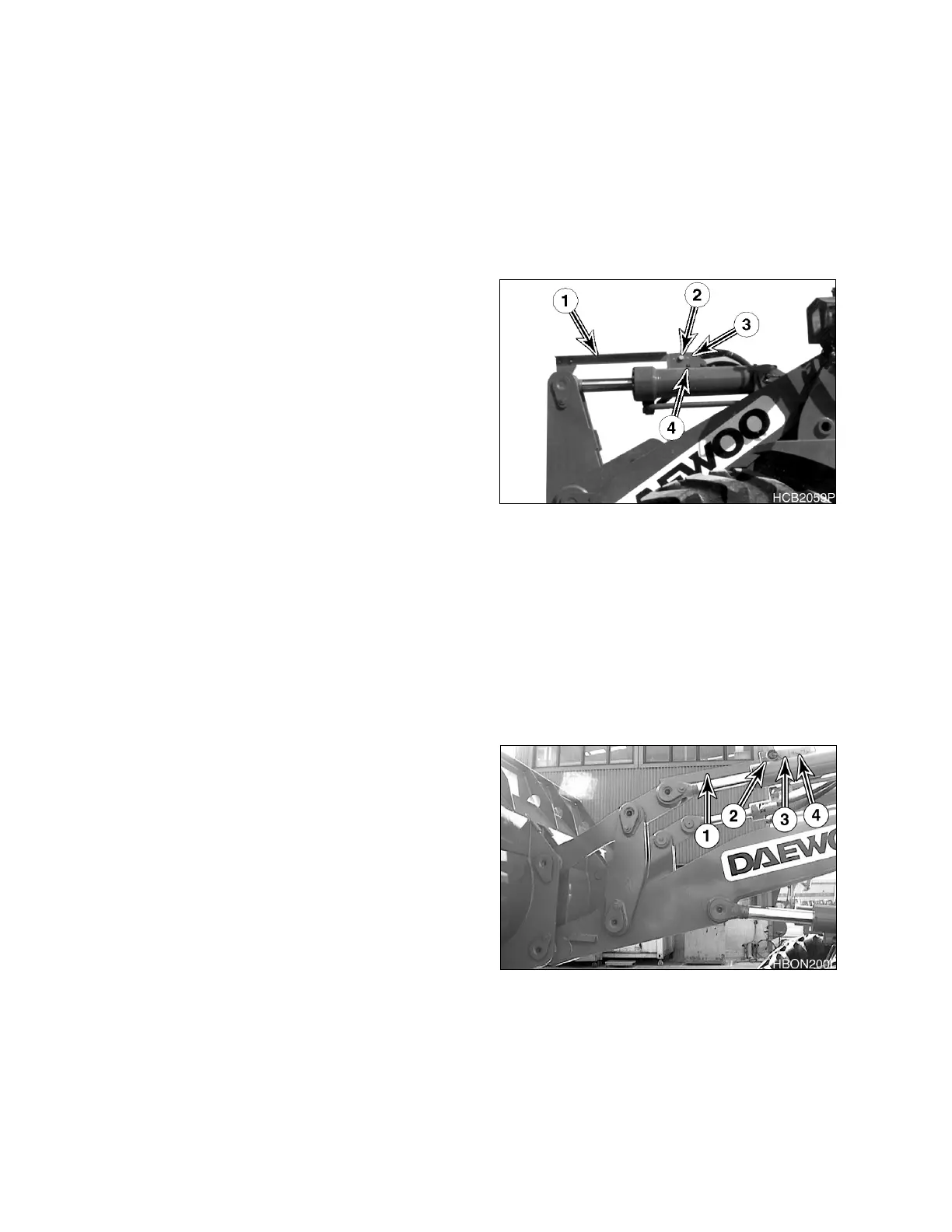

3. Loosen bolts (4, Figure 41) on bracket (3).
4. Position bracket (3, Figure 41) so that end
of arm (1) is aligned with center of
magnetic switch (2).
5. Tighten bolts (4, Figure 41).
6. Start engine. Raise boom, dump bucket,
then move bucket lever into crowd detent
position. Now lower boom and check to
see that bucket has stopped at required
position. A small readjustment of bracket
(3, Figure 41) may be necessary.
MEGA 200-VTC
When bucket lever is held in crowd detent position, after bucket has been dumped, bucket will pivot toward
crowd position. Once full crowd position has been reached, bucket lever will automatically return to
"NEUTRAL" position. If bucket is lowered after lever returns to "NEUTRAL," bucket will automatically
position itself to be in a preselected digging position (usually flat). To adjust bucket to desired preselected
digging position, perform the following steps.
1. Operate controls to place bucket on ground. Operate controls to place bucket in desired preselected
digging position (usually flat). Return bucket lever to its "NEUTRAL" position.
2. Shut down engine.
3. Loosen bolts (4, Figure 42) on bracket (3).
4. Position bracket (3, Figure 42) so that end
point of arm (1) is aligned with center of
magnetic switch (2).
5. Tighten bolts (4, Figure 42).
6. Start engine. Raise boom, dump bucket,
then move bucket lever into crowd detent
position. Now lower boom and check to
see that bucket has stopped at required
position. A small readjustment of bracket
(2, Figure 42) may be necessary.
Figure 41
Figure 42
