022-00028AE Operation and Maintenance Manual Operating Controls 2-27

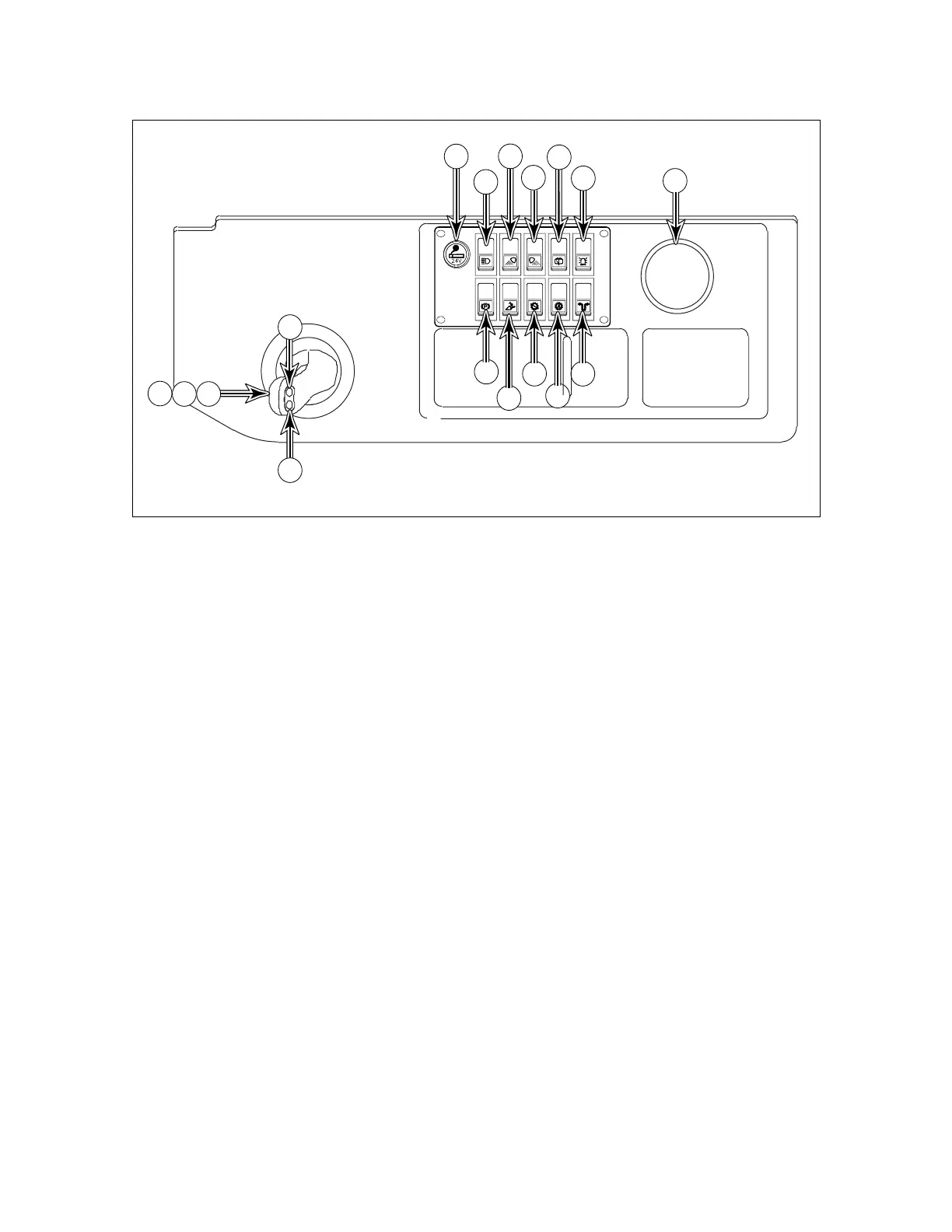

RIGHT SIDE SWITCH PANEL
1. PILOT CONTROL VALVE LEVER
(JOYSTICK)
1A. PILOT CONTROL VALVE LEVER
(OPTION)
1B. ERGO-II PILOT CONTROL VALVE LEVER
(JOYSTICK) (OPTION)
2. KICK-DOWN SWITCH
3. HORN SWITCH
4. CIGAR LIGHTER
5. HEADLIGHT SWITCH
6. FRONT WORK LIGHT SWITCH
7. REAR WORK LIGHT SWITCH
8. REAR WIPER SWITCH
9. ROTATING BEACON SWITCH (OPTION)
10. CUP HOLDER
11. PARKING BRAKE SWITCH
12. PILOT CUTOFF SWITCH
13. TRANSMISSION CUTOFF SWITCH
14. AUTOMATIC TRANSMISSION SWITCH
15. EMERGENCY STEERING TEST SWITCH
(OPTION)
10
11
13
9
8
7
6
4
5
12
3
2
11A
14
15
AJO0070L
1B
Figure 46
