2-28 Operating Controls 022-00028AE Operation and Maintenance Manual
1. PILOT CONTROL VALVE LEVER
(JOYSTICK)
Used to position bucket and boom. This
lever is capable of raising or lowering
boom, and crowding or dumping bucket.
When machine is being traveled, the lever
(joystick) can be "LOCKED" out, to prevent
any movement of bucket or boom. To
"LOCK" out lever (joystick), place pilot
cutoff switch in "LOCKED" position.

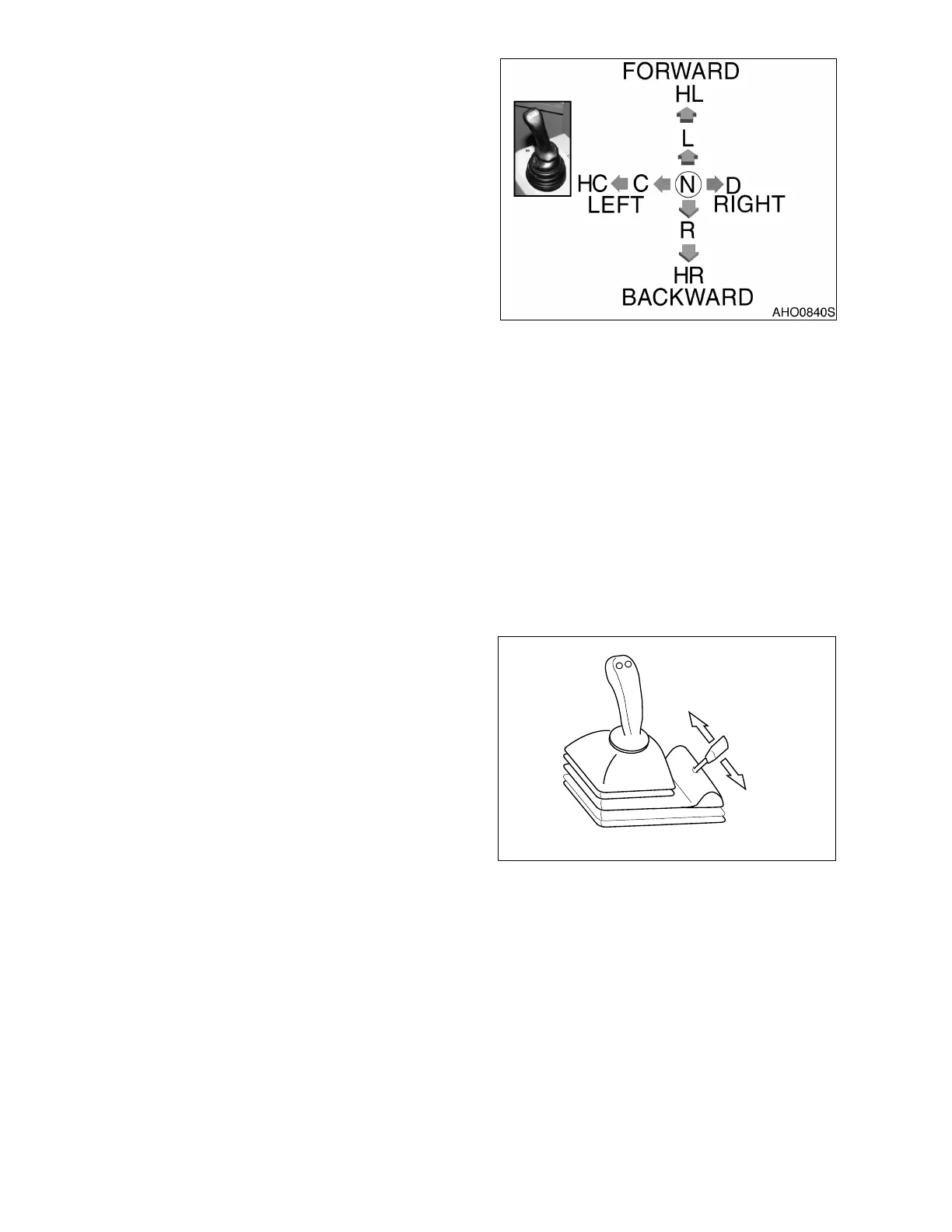

Pilot control valve lever (joystick) operating
pattern and description of operation.
1A. PILOT CONTROL VALVE LEVER
(OPTION)
If loader is equipped with log forks this
lever controls boom, bucket and log forks.
The boom and bucket operating pattern of
this lever is the same as above.
A. When the log forks control lever is
pushed forward the log forks are
allowed to open.
B. When the log forks control lever is
pulled back the log forks are allowed
to close.
HL
. Hold lever in
lower mode
L
.Lower
HC
. Hold lever in
Bucket Crowd
C
.Bucket Crowd
N
. Neutral
D
.Bucket Dump
R
.Raise
HR
. Hold lever in
Raise Mode
Figure 47
Figure 48
A
B
AJO0600L
