FUSE BOX/RELAY
FUSE BOXES
There are two fuse boxes inside the
cab.
Fuse box one (1, Figure 102) is in the
rear side of right control stand. A usage
diagram of fuses is shown inside of fuse
box. Spare fuses are mounted on the
inside of fuse box cover (10A - Qty. 1,
15A - Qty. 1, 20A - Qty. 1 and 30A - Qty.
1).
Fuse box two (2, Figure 102) is just
above the windshield washer fluid tank.
WARNING!
If any fuse is blown, turn "OFF" the
starter switch and shut off the
power supply. Remedy the cause if
needed and replace the fuse with a
new one.

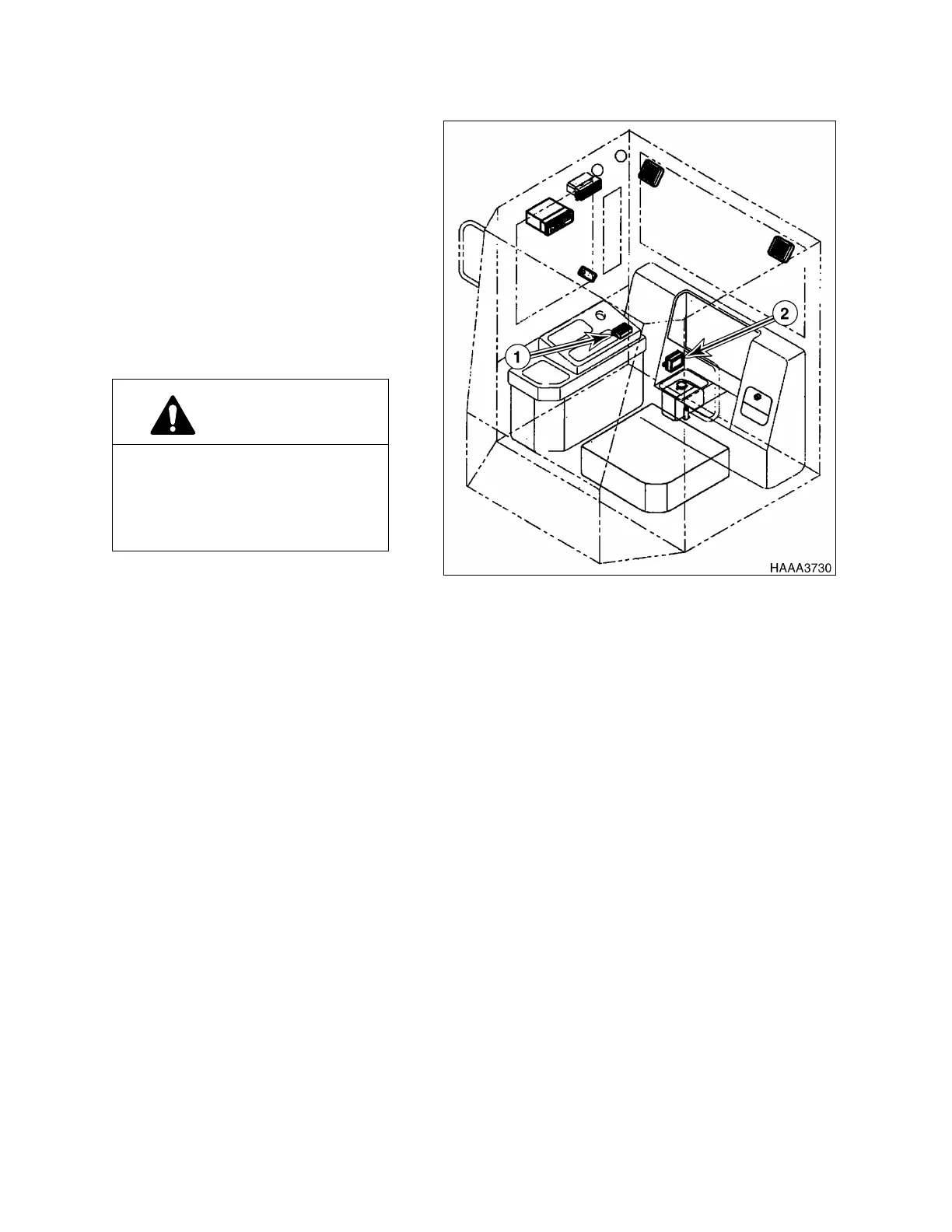

Figure 102
