2-56 Operating Controls 022-00028AE Operation and Maintenance Manual
Fuse Box One
No. Name Capacity
1 Gauge Panel 15A
2 Transmission 15A
3 Front Wiper, Horn 15A
4 Parking Brake,
Pilot Cutoff, Log Fork
(Option)
15A
5 Headlight, Stop Light 20A
6 Condenser Fan, Preheat 15A
7 Emergency Steer (Option),
Spare
15A
8 Air Conditioner, Heater 30A
9 Working Light (Front),
Rotating Beacon (Option)
15A
10 Working Light (Rear) 15A
11 Turn Signal Light, Hazard
Light, Indicate Light
15A
12 Stereo, Cab Light,
Fuel Pump, Engine Stop
15A
13 Memory Backup,
Pilot Buzzer
10A
14 Starter Switch 10A
Fuse Box Two
No. Name Capacity
1 Cigar Lighter 15A
2 Rear Wiper 15A
3 Position Light (Right) 10A
4 Position Light (Left) 10A
5 Auto-Detent, LIS (Option) 15A
6 Spare 30A
AJO0470L

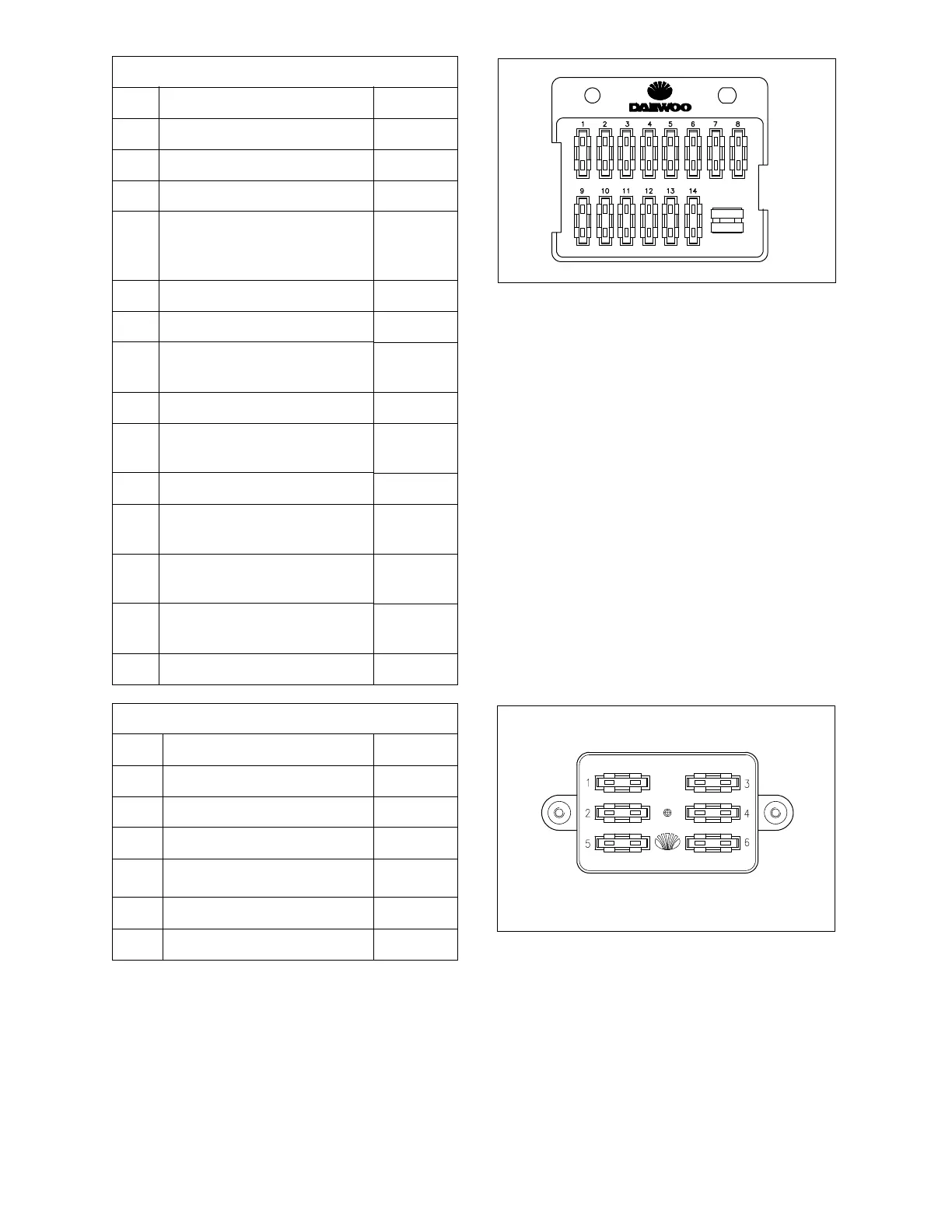

Figure 103
FUSE BOX ONE
AJO0480L
Figure 104
FUSE BOX TWO
