2-20 Operating Controls 022-00028AE Operation and Maintenance Manual

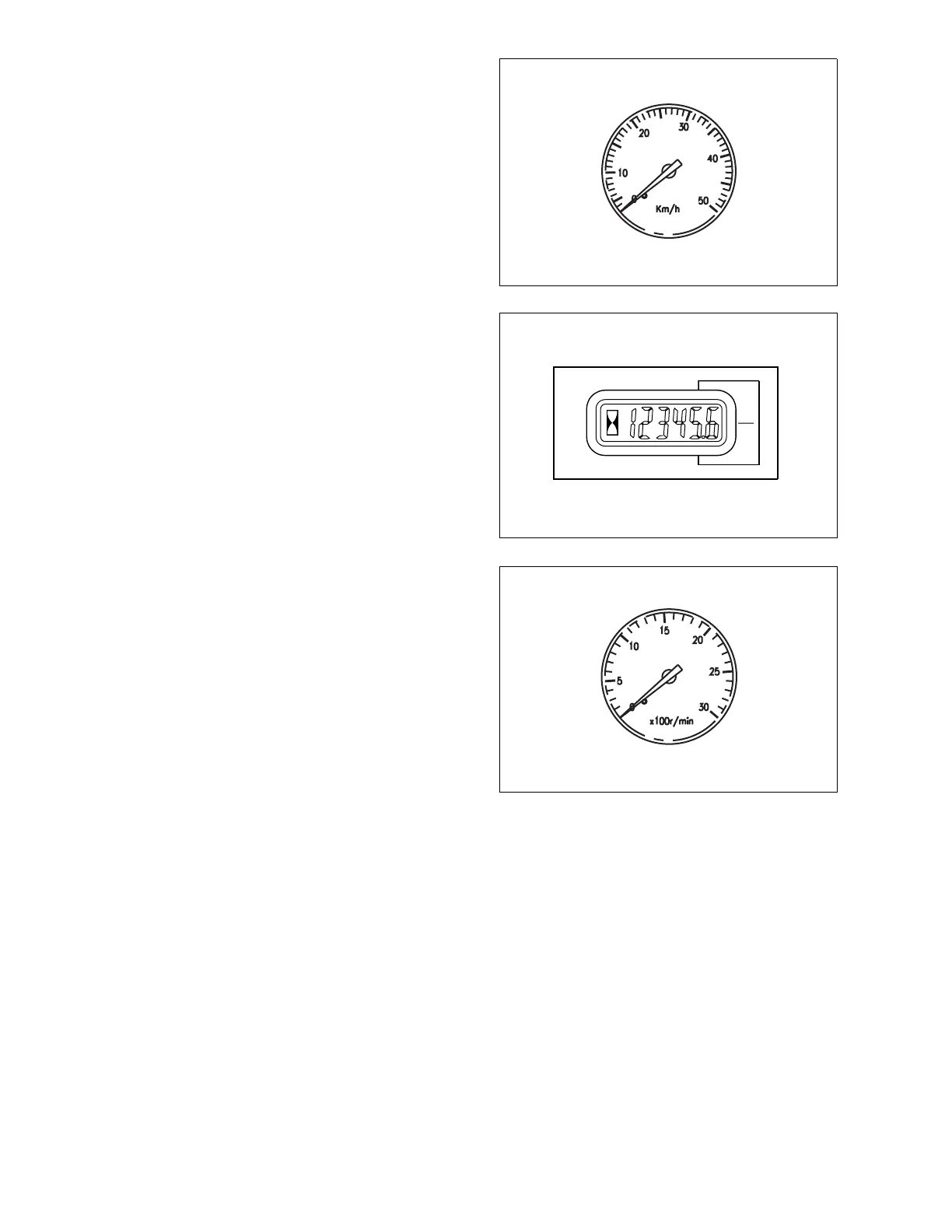

2. SPEEDOMETER
This meter displays speed at which vehicle
is traveling.
3. HOUR METER
A LCD meter that records total time that
starter switch is turned "ON" up to
99,999.9 hours. When engine is running,
the hourglass icon blinks every four
seconds. This shows that the hour meter is
working.
4. TACHOMETER
This meter displays engine speed in
revolutions per minute.
HBOI230L
Figure 26
Figure 27
10
1
HA0O2012
HBOI240L
Figure 28
To Next Page
