022-00028AE Operation and Maintenance Manual Operating Controls 2-23

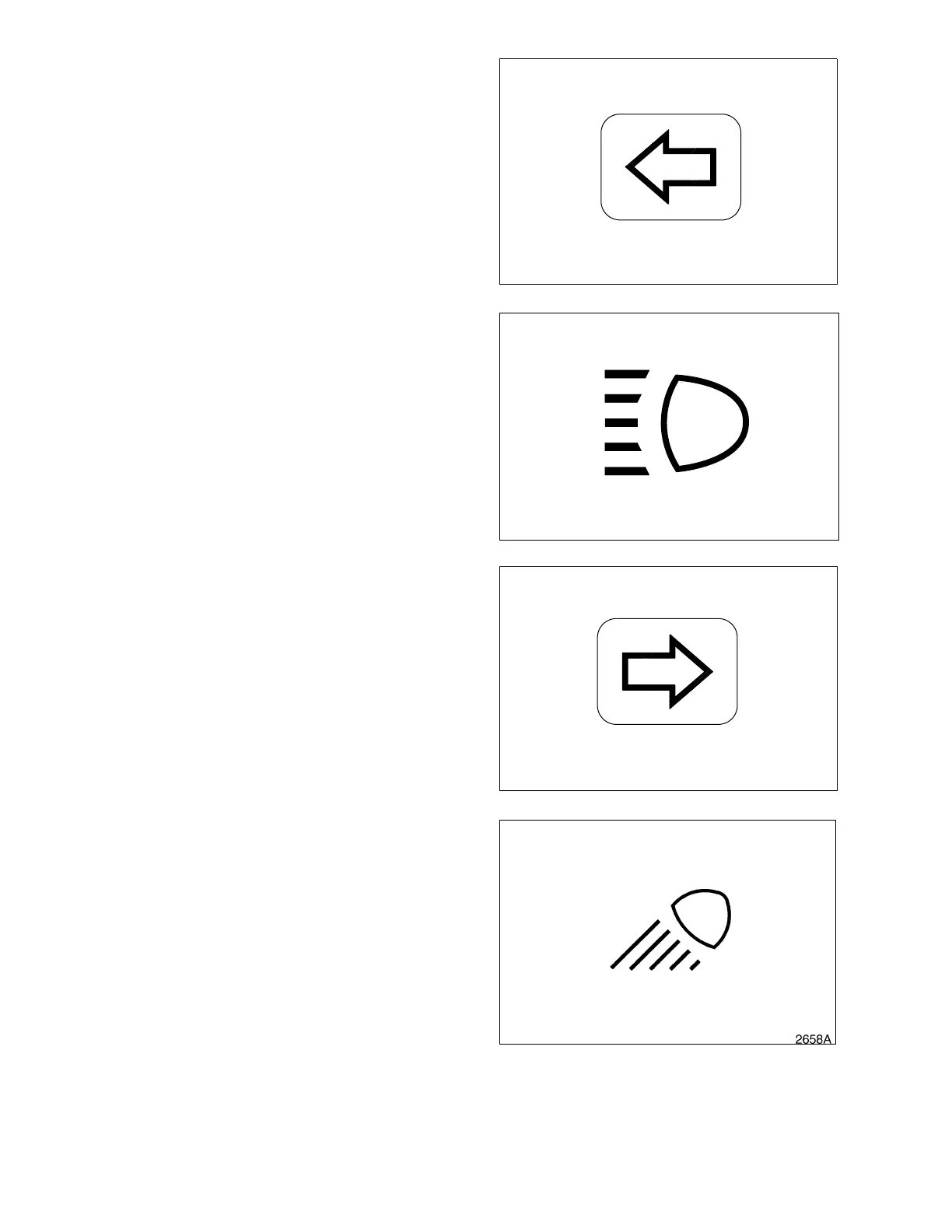

12. LEFT TURN AND HAZARD WARNING
LIGHT
This light blinks when left turn signal is
turned "ON." Both lights blink when
warning lights are turned "ON."
NOTE:
If left and right turn indicators
blink together, or if they blink
faster than normal, a light bulb
is not operating or flasher
solenoid is damaged.
13. HIGH BEAM INDICATOR LIGHT
This light turns "ON" when headlights are
turned to "HIGH BEAM."
14. RIGHT TURN AND HAZARD WARNING
LIGHT
This light blinks when right turn signal is
turned "ON." Both lights blink when
warning lights are turned "ON."
NOTE:
If left and right turn indicators
blink together, or if they blink
faster than normal, a light bulb
is not operating or flasher
solenoid is damaged.
15. WORK LIGHT INDICATOR LIGHT
This light should turn "ON" when the front
work lights are activated.
ACO0240L
Figure 36
HAOD394L
Figure 37
ACO0241L
Figure 38
Figure 39
