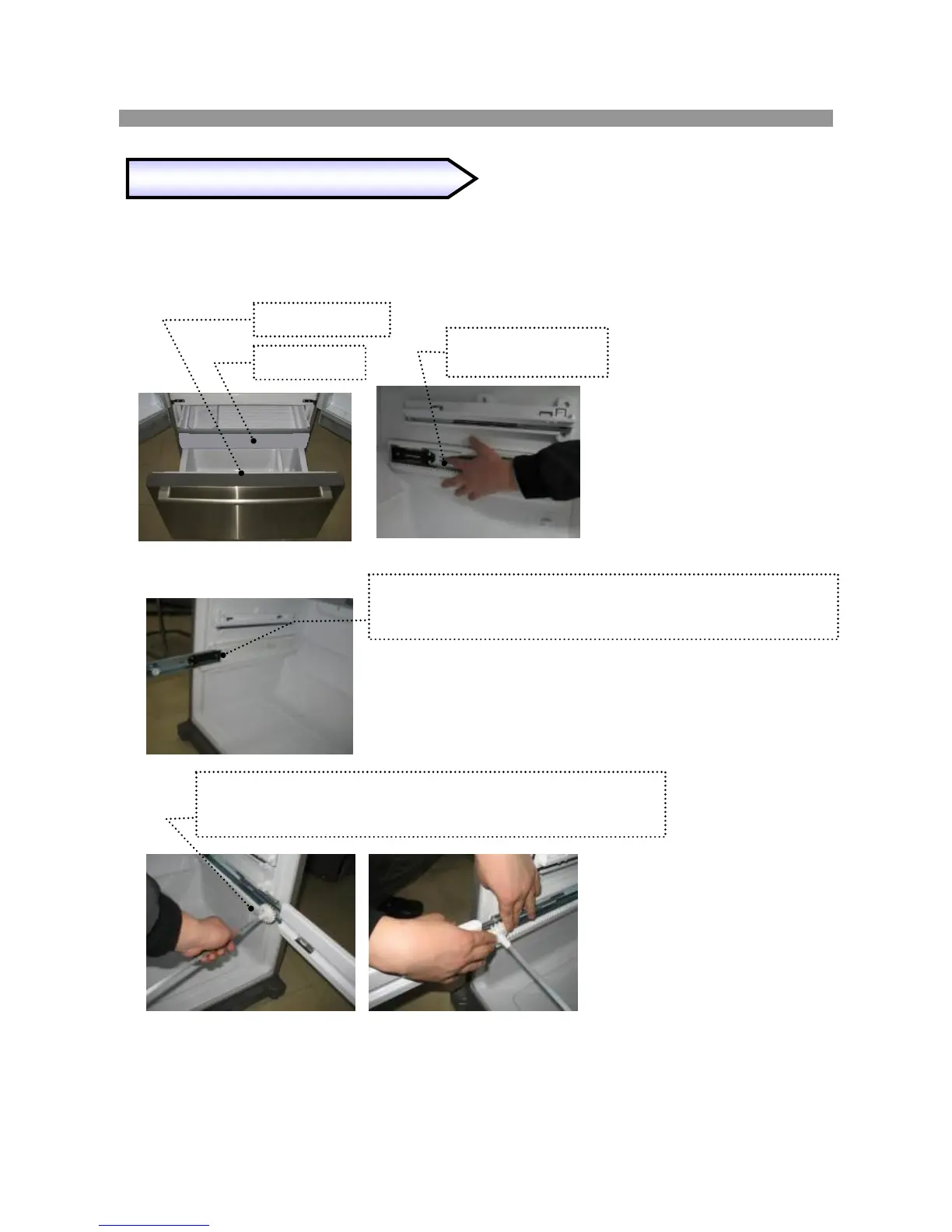

(1) Remove foods.
(2) Remove F Draw Case & F Case in freezer compartment.
Removing and replacing Freezer parts
1) Disassembling F Door procedure
Pull up F Case
and remove
Pull up F Draw Case
and remove
Push lock(both side) and
pull forward F Door and
remove F Door AS
2) Assembling F Door procedure
1. Align end of rail(both side) with Supporter F Draw Rail
2. Fully push & close F Door. And check locking rail with lock of supporter
※ Up to this time, Fixture Rail Gear(steel stick) & gear Rail M have not to be
assembled.
3. Fully open F door.
4. Assemble one Gear Rail M in Supporter F Rail Gear.
5. Push and assemble another one Gear Rail M on opposite side of rail.
※ Check both side Gap of Door & Cabinet.
