Installation 5

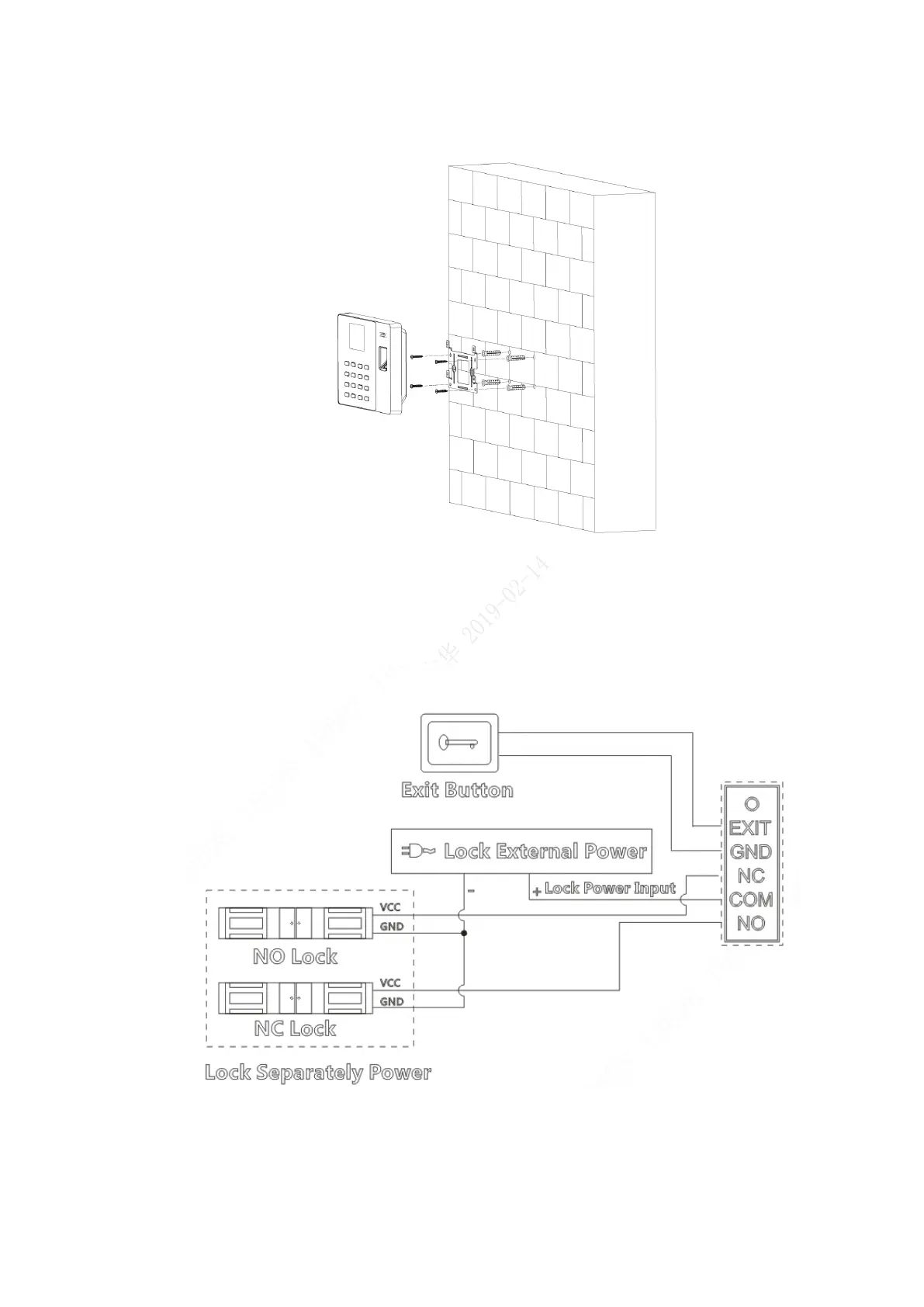

Installed through the bracket
Installed through bracket Figure 2-3
Cable Connection 2.2
The terminal can be connected to exit button to control the door. See Figure 2-4.
Cable connectionFigure 2-4
