User’s Manual
67
1) Select the checkbox of event type.

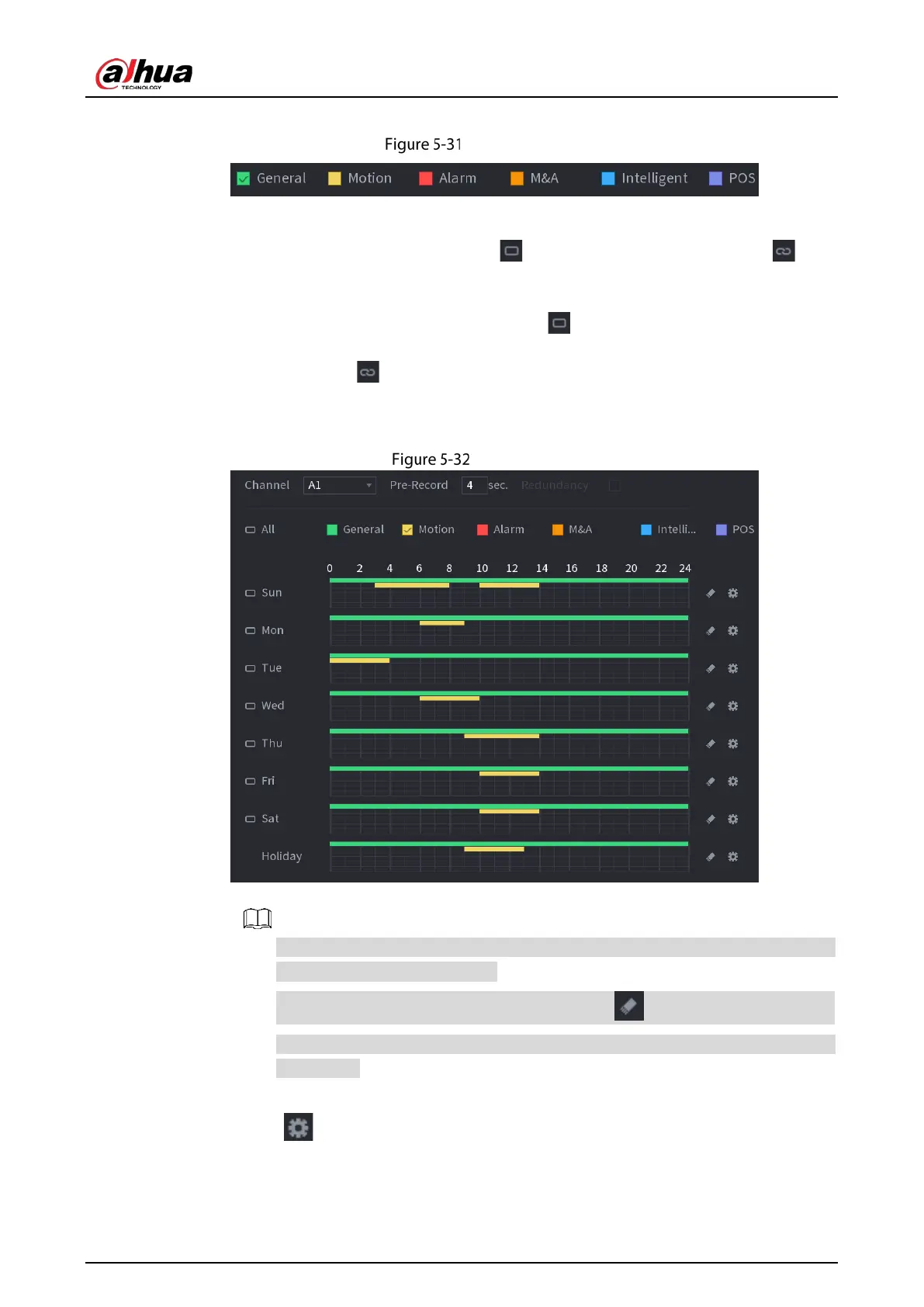

Event type
2) Define a period. The system supports maximum six periods.
Define for the whole week: Click next to All, all the icon switches to , you
can define the period for all the days simultaneously.
Define for several days of a week: Click before each day one by one, the icon
switches to . You can define the period for the selected days simultaneously.
3) On the timeline, drag to define a period. The Device starts recoding the selected event
type in the defined period.
Timeline
The color bar indicates the event type that is effective in a defined period:
Recording priority in case of event types are overlapped: M&A > Alarm >
Intelligent > Motion > General.
Select the checkbox of event type, and then click to clear the defined period.
When selecting MD&Alarm, the MD and Alarm checkboxes will be cleared
respectively.
Define the period by editing. Take Sunday as an example.
4) Click .
