Installation Guide 9
detector and IR detector etc..
When external alarm is triggered, all doors are linked
to be normally open.

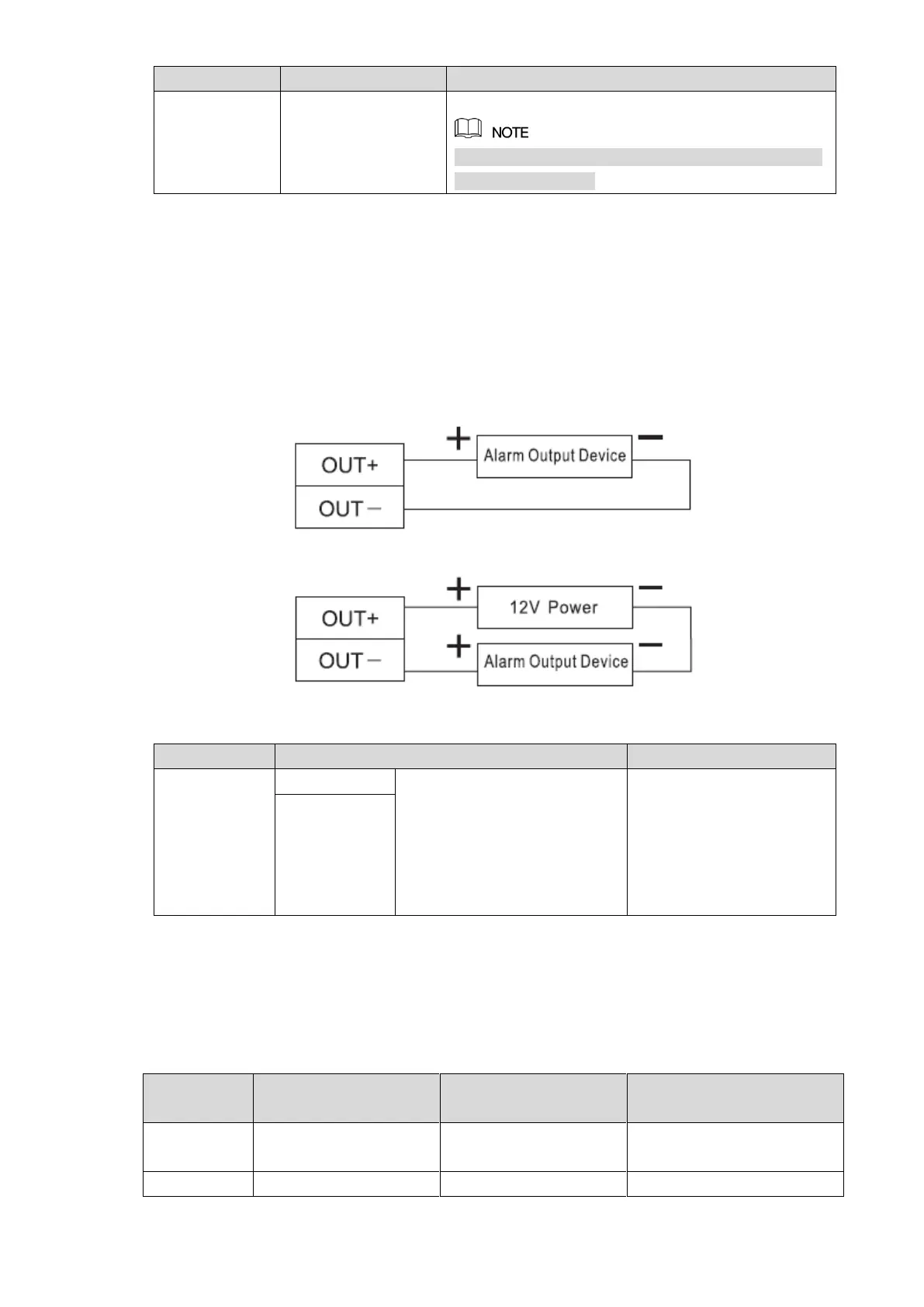

2.3.6 Wiring Description of Alarm Output
With 1-ch alarm output, after internal alarm input (such as door timeout) or external alarm input
triggers an alarm, the alarm output device gives an alarm for 15s.
There are two connection modes of alarm output, depending on alarm device. For example,
IPC can use Mode 1, whereas audible and visual siren can use Mode 2, as shown in Figure
2-10 and Figure 2-11. Please refer to Table 2-6 for descriptions about wiring terminals.
Figure 2-10
Figure 2-11
Table 2-6
output.
Door timeout and intrusion
alarm output.
Tamper alarm output of
Internal and external alarm
output ports are able to
connect audible and visual
sirens.
2.3.7 Description of Alarm Input and Output Rule
In case of alarm event, the alarm continues for 15s. Please refer to Table 2-7 for detailed alarm
input and output rules.
Table 2-7
Link all doors to be normally
open.
Door timeout, intrusion alarm
