Dahua Digital VTH Series

Network Diagram 16
3.2 Digital System
Digital system network consist of two types:

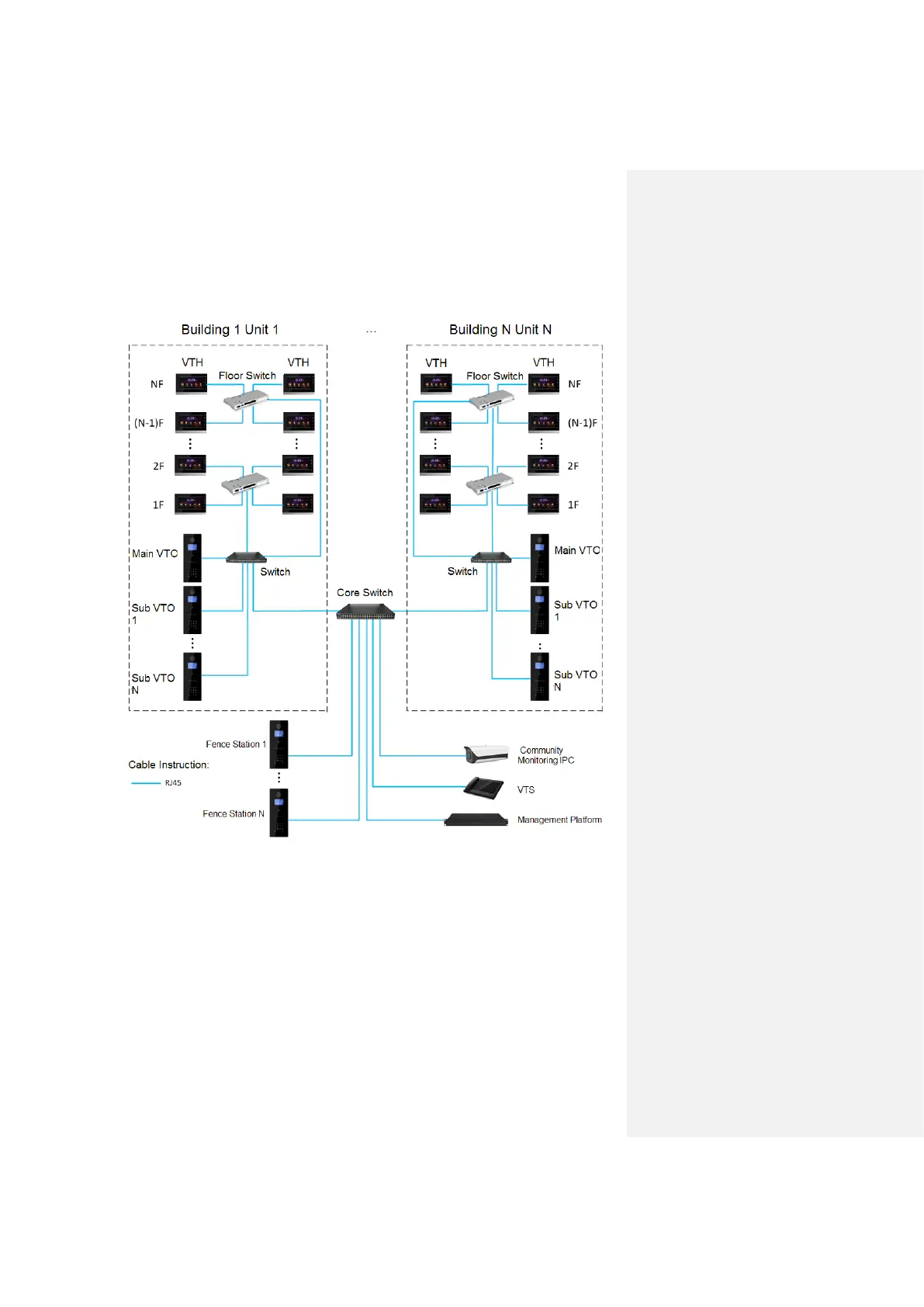

 VTH adopts PoE power supply from floor switch, as shown in Figure 3-2.
Figure 3-2
 VTH adopts independent power supply from power supply device, as shown in Figure 3-3.
