Dahua IPC-KW10

HD Cube Network Camera User’s Manual
6
2 Framework
2.1 Device Components
You can refer to the following figure for component information. See Figure 2-1.

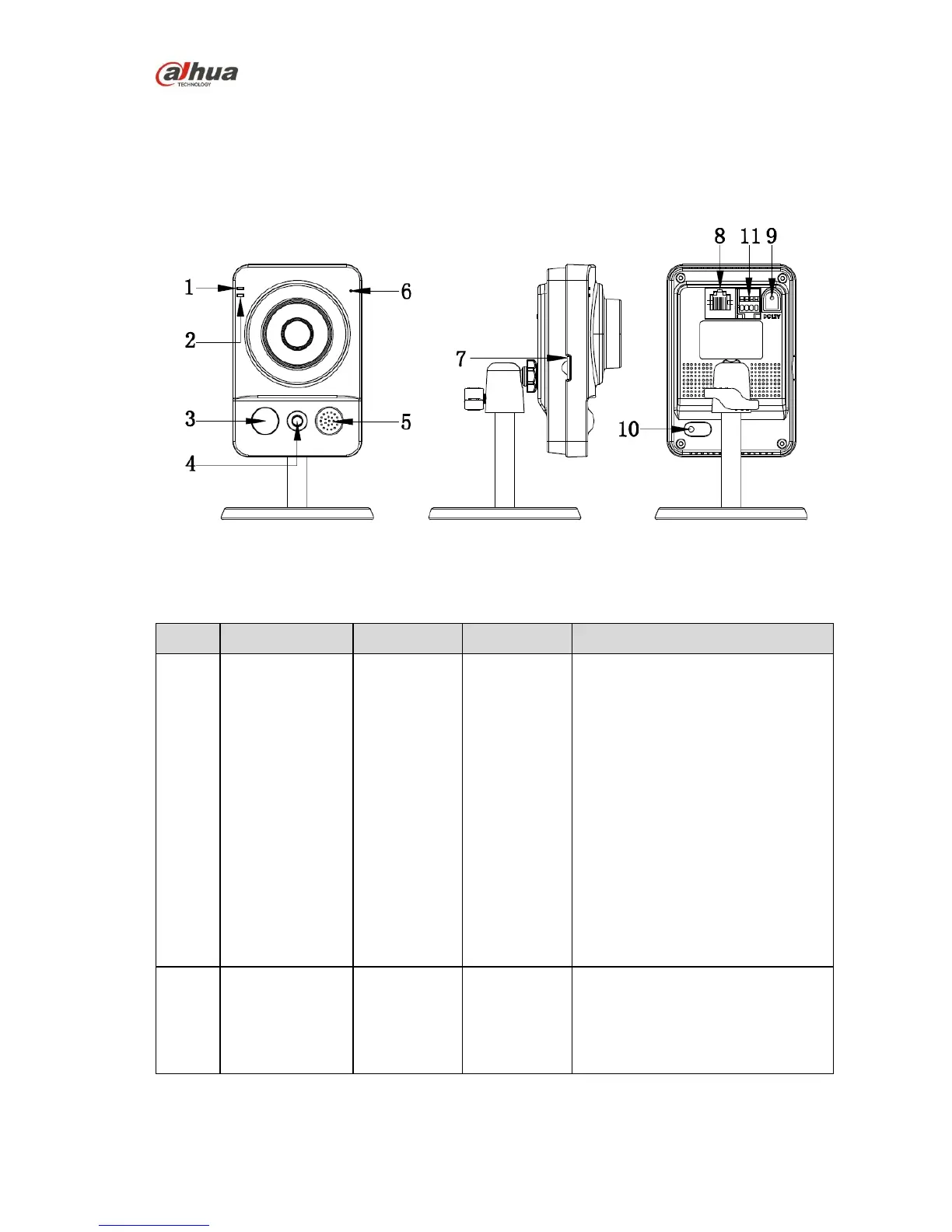

Figure 2-1 Component
Please refer to the following sheet for detailed information.
SN
Port Name
Indicator
Connector
Note
1
Power indicator
light
POWER
/
 Green light on: System boots
up.
 Green light flashed (frequency=
0.5s).
 System upgrade
 Alarm
 Wireless alarm study
(optional, supports by
some model only)
 Green light flashes
(frequency=1s): Arming delay
(optional, supports by some
model only)
2
Network
indicator light
NET
/
 Wire network connection-Red
light is on.
 Wireless network connection-
Green light is on.
