Figure 3-9
3.5.10 NVR74-8P/74-16P Series

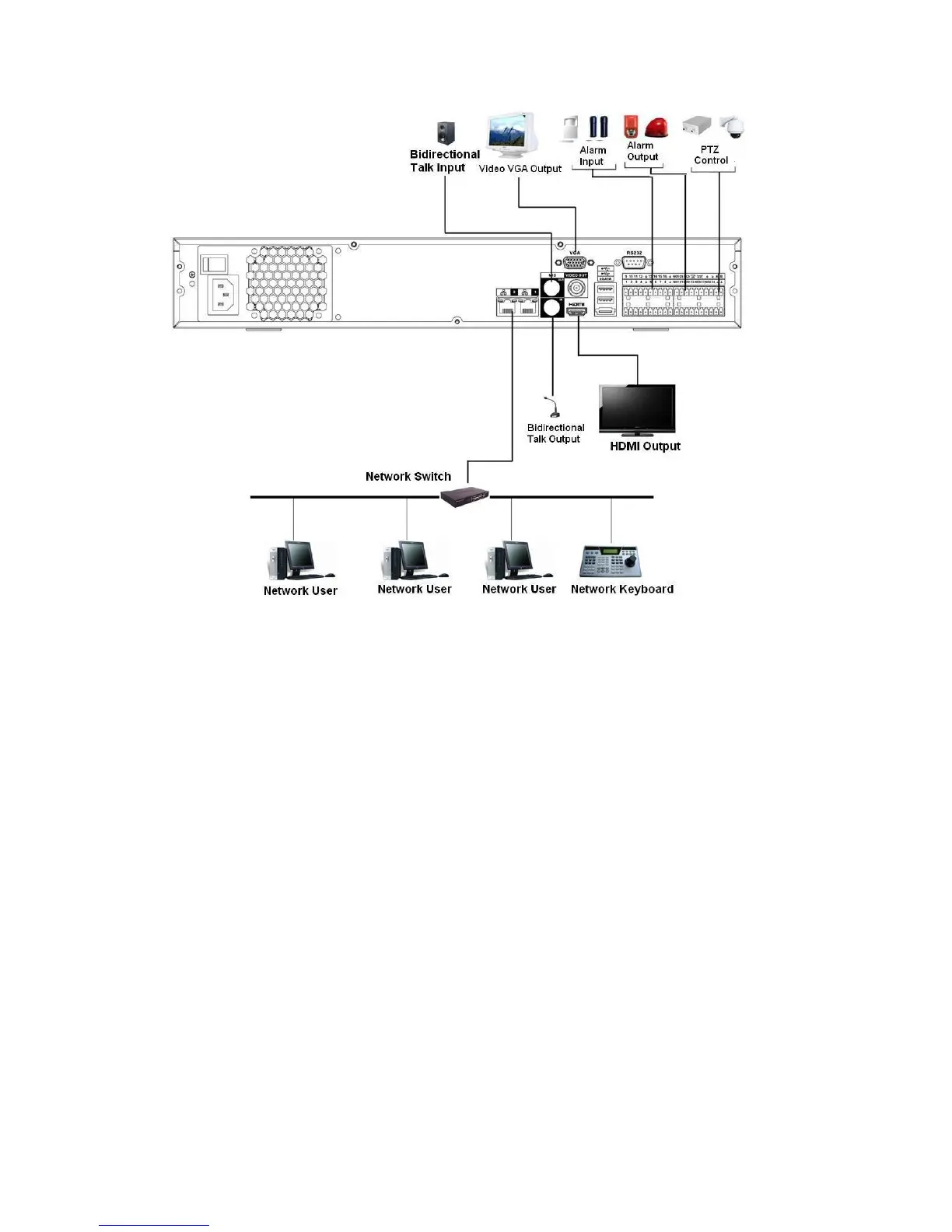

Please refer to Figure 3-10 for connection sample.
The following figure is based on the NVR74-8P series product.
