Figure 3-4
3.5.5 NVR44/44-8P/44-16P Series

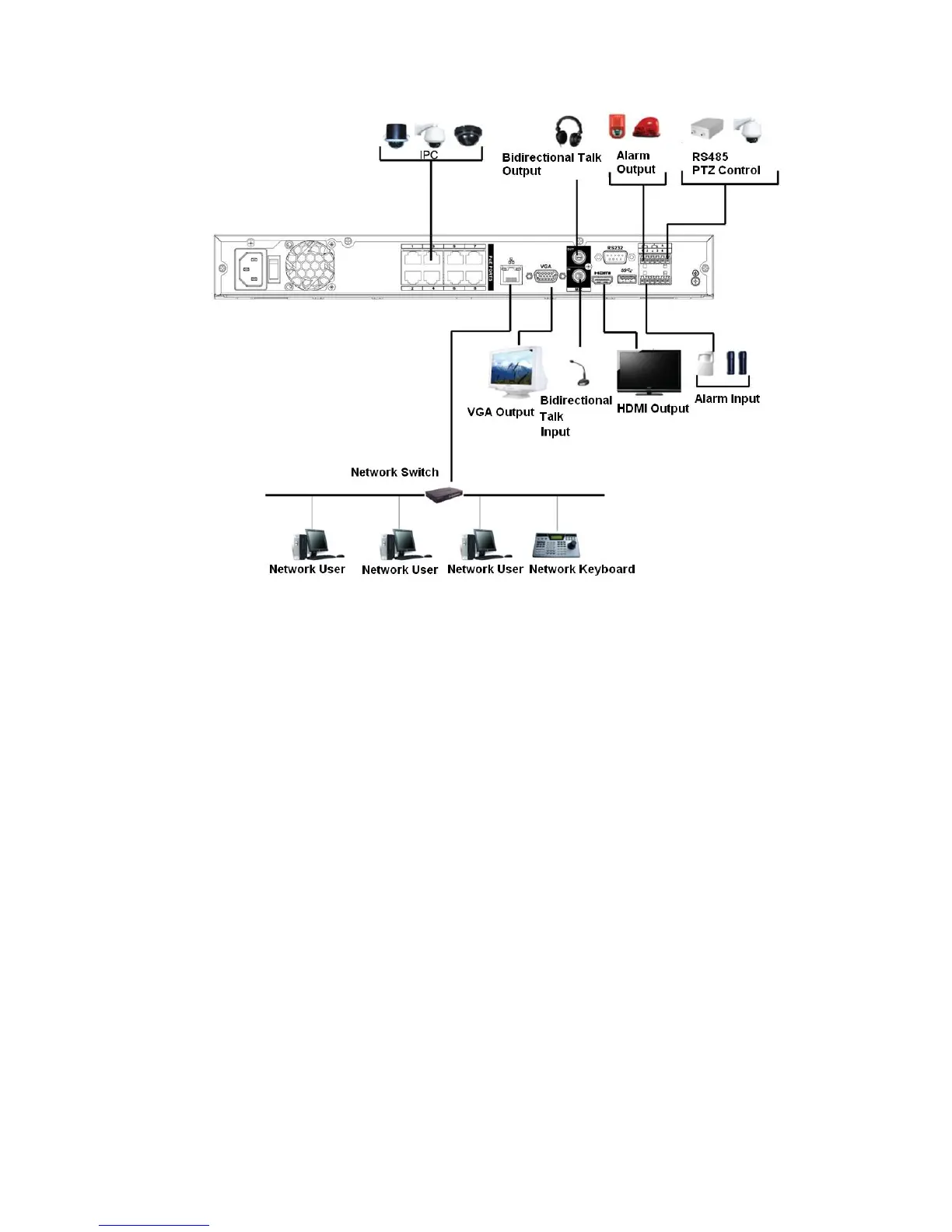

Please refer to Figure 3-5 for connection sample.
The following interface is based on the 44-8P series product.
