Dahua NVR4108-P User Manual

29
Icon
Name
Function
NET
Network status
indicator light
The red light becomes on when the network
connection is abnormal.
PWR
Power indicator
light
The red light becomes on when the power
connection is OK.
HDD
HDD status
indictor light
The red light becomes on when HDD is abnormal.
IR
Remote control
receiver
It is to receive signal from the remote control.

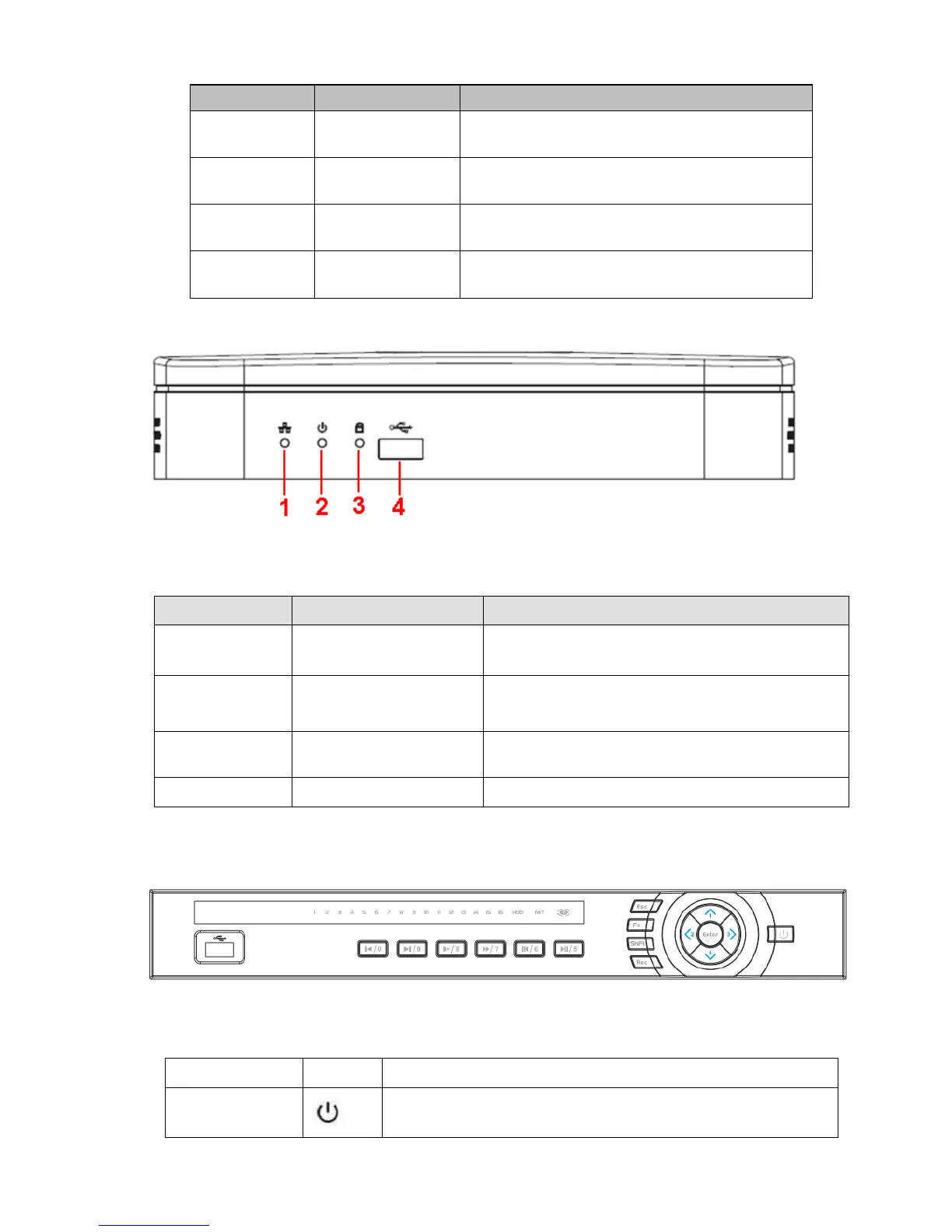

2.1.3 NVR41-8P Series
The front panel is shown as below. See Figure 2-3.
Figure 2-3
Please refer to the following sheet for detailed information.
SN
Name
Function
1
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
HDD status indictor light
The red light becomes on when HDD is abnormal.
4
USB
USB port
2.1.4 NVR42/42-P/42-8P/72/72-8P Series
The front panel is shown as below. See Figure 2-4.
Figure 2-4
Please refer to the following sheet for front panel button information.
Name
Icon
Function
Power button
Power button, press this button for three seconds to boot up
or shut down NVR.

Dahua NVR4108-P Specifications

General

Brand	Dahua
Model	NVR4108-P
Category	Network Hardware
Language	English
