Dahua NVR4108-P User Manual

69
Name
Function
NO
Normal open
Normal open alarm output port.
Network port
10M/100M/1000Mbps self-adaptive Ethernet port.
Connect to the network cable.
USB3.0 port
USB3.0 port. Connect to mouse, USB storage device,
USB burner and etc.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
VGA
VGA video
output port
VGA video output port. Output analog video signal. It
can connect to the monitor to view analog video.
PoE
PORT
/
Bult-in Switch. Support PoE.
The 8 PoE series product supports total 48V 120W.
One PoE port max supports 15W.
2.3 Alarm Connection
2.3.1 Alarm Port

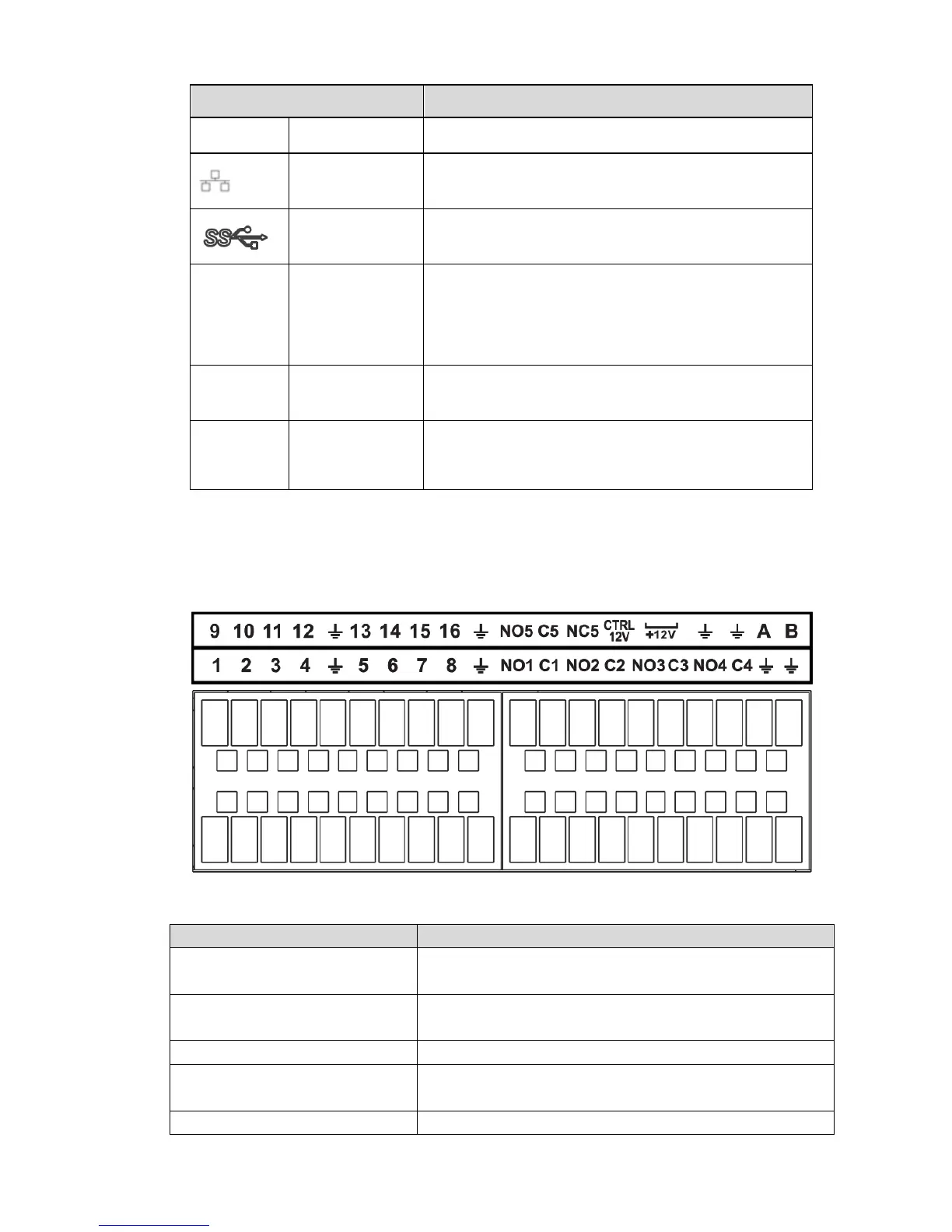

The alarm port is shown as below. See Figure 2-40. The following figure is based on the 78 series.
Figure 2-40
Icon
Function
1～16
ALARM1～ALARM16. The alarm becomes activated in the
low level.
NO1 C1，NO2 C2，NO3 C3，NO4
C4
Four NO activation output groups. (On-off button).
NO5 C5 NC5
One NO/NC activation output group. (On-off button).
CTRL 12V
Control power output. Disable power output when alarm is
canceled. Current is 500mA.
＋12V
Rated current output. Current is 500mA.
