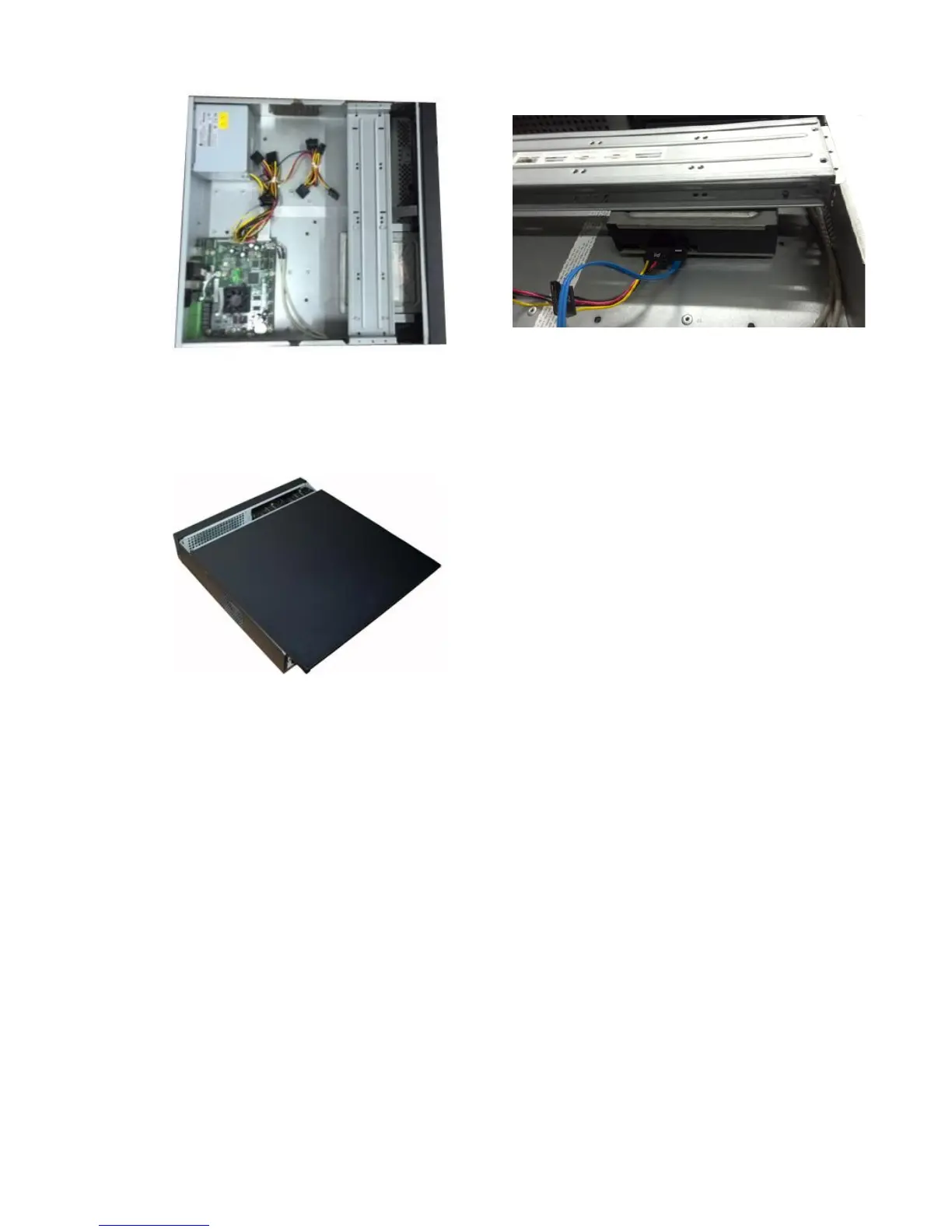

⑦ Put the bracket back. Please adjust the
CD-ROM to the proper position so that
the button of the front panel is directly
facing the pop-up button of the
CD-ROM.
⑧ Connect the SATA cable and power wire.
⑨ Secure the HDD bracket and put the
top cover back.
3.5 Connection Sample
3.5.1 NVR100/NVR100-P Series
Please refer to Figure 3-1 for connection sample.
Here we take NVR100-P as an example.
