Dahua VTH Series User Manual

8
3 Wiring
At most 2 VTOs and 3 VTHs can be wired in one communication system.
Preparations

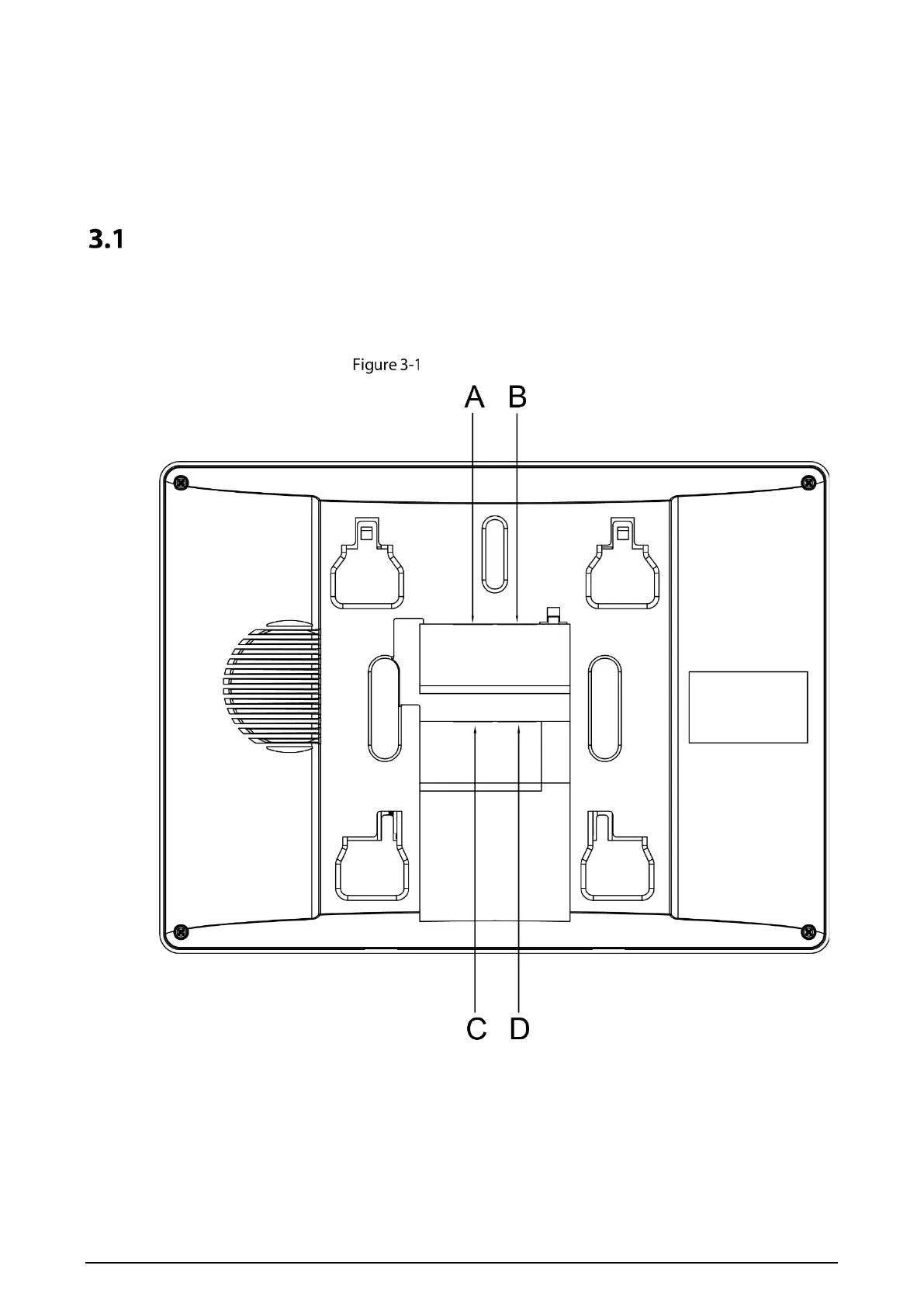

3.1.1 Port Connection Rules
Port connection rules
 Port A of an VTH can be connected to Port C of another VTH to do data communication.
 Port B of an VTH can be connected to Port D of another VTH to do data communication.
 Port A of an VTH cannot be connected to Port B or D of another VTH to do data communication.
 Port C of an VTH cannot be connected to Port B or D of another VTH to do data communication.
3.1.2 Cord Specification

Dahua VTH Series Specifications

General

Touch Screen	Yes
Display Type	TFT LCD
Video Compression	H.264
Display Size	7 inch
Resolution	1024 x 600
Network	Ethernet
Operation Method	Touch buttons
Audio	G.711
Network Interface	RJ45
Operating Temperature	-10°C to +55°C
