Dahua VTH Series User Manual

4
Rear Panel
There might be slight differences in the real panel among different models. But they have the same
function ports.

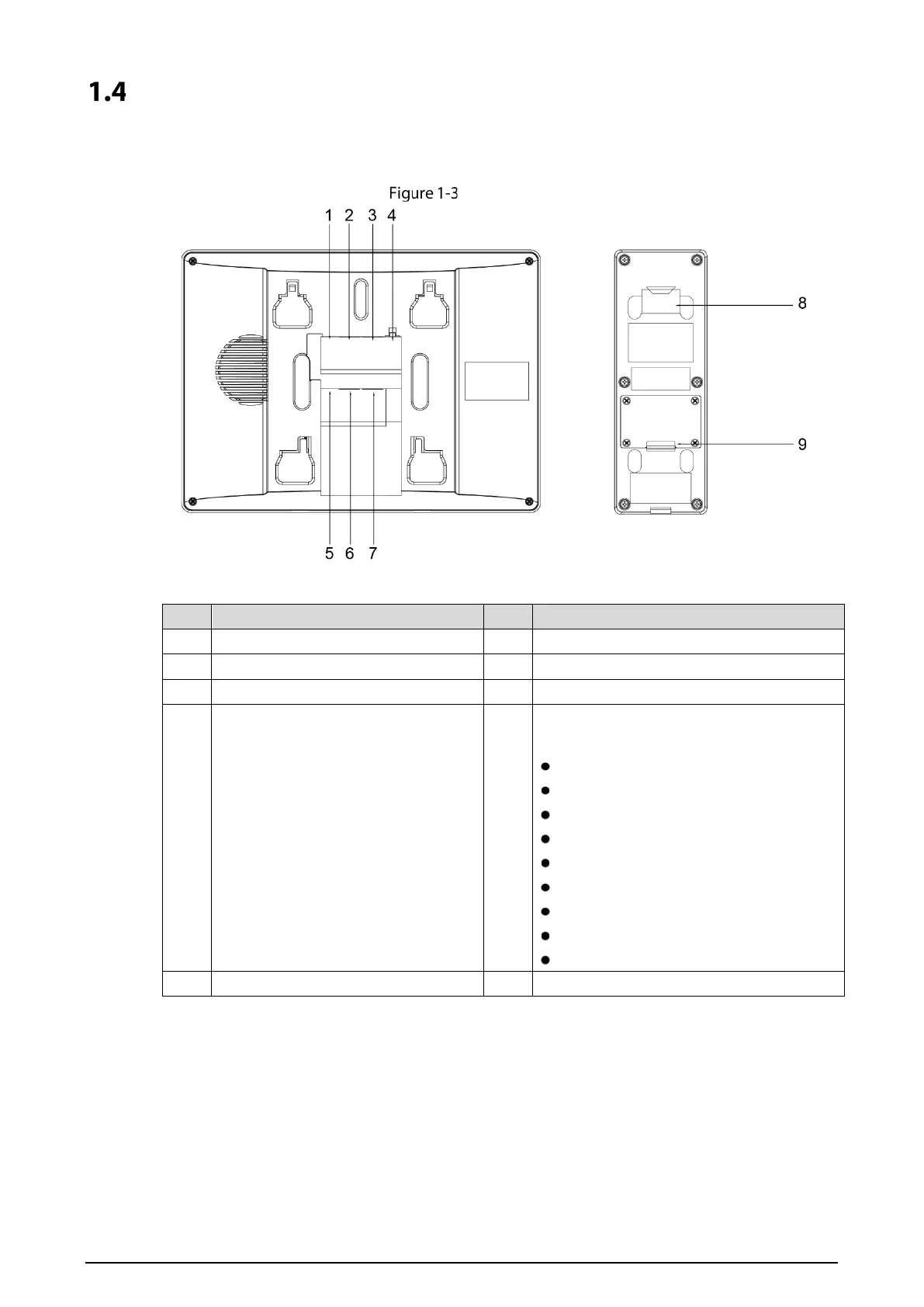

Rear panel
Table 1-2 Rear panel
No. Description No. Description
1 Analog camera port 1. 6 VTH cascading port 1.
2 VTO port 1. 7 VTH cascading port 2.
3 VTO port 2. 8 VTO hanging slot.
4 Power input. 9
Wires: The color of the wires represents
different port functions.
Red: power.
Yellow: video.
White: audio.
Black: GND.
Green: exit button.
Orange: feedback.
Purple: NO.
Blue: COM.
Brown: NC.
5 Analog camera port 2. – –

Dahua VTH Series Specifications

General

Touch Screen	Yes
Display Type	TFT LCD
Video Compression	H.264
Display Size	7 inch
Resolution	1024 x 600
Network	Ethernet
Operation Method	Touch buttons
Audio	G.711
Network Interface	RJ45
Operating Temperature	-10°C to +55°C
