Dahua XVR5104C-S2 - HCVR51 XXHC; HCVR51 XXHC-V2; HCVR71 XXHC-V2 Series

187
2.1.3 HCVR51XXHC/ HCVR51XXHC-V2/ HCVR71XXHC-V2 Series

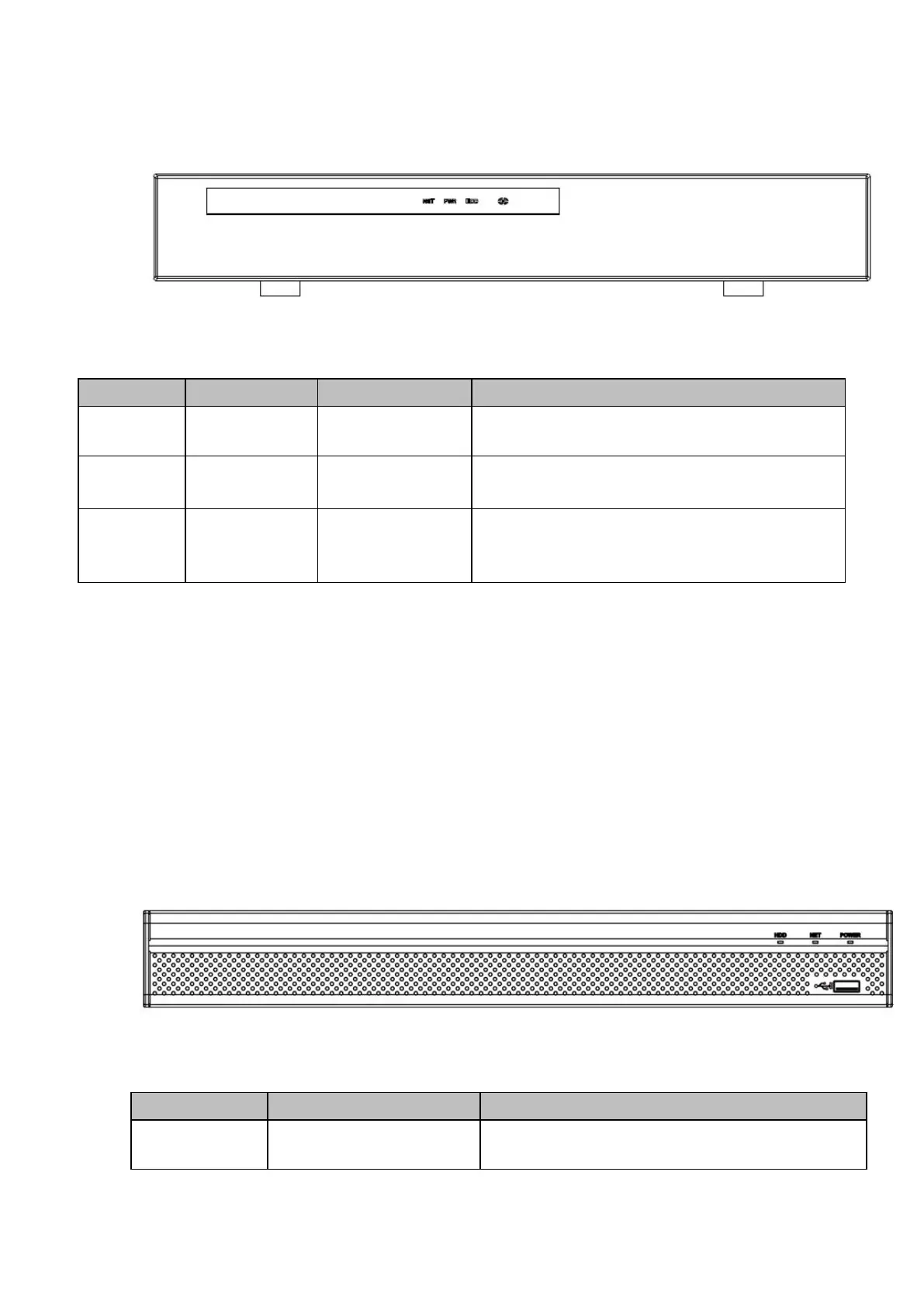

The interface is shown as below. See Figure 2- 3.
Figure 2- 3
Please refer to the following sheet for front panel button information.
SN
Icon
Name
Function
1
NET
Network abnormal
indicator light
Network error occurs or there is no network
connection, the light becomes red to alert you.
2
PWR
Power indicator
light
The red light becomes on when the power
connection is OK.
3
HDD
HDD abnormal
indicator light
HDD error occurs or HDD capacity is below
specified threshold value, the light becomes red
to alert you.
2.1.4 HCVR41XXHE-S2/ HCVR51XXH-S2/ HCVR51XXHE-S2/
HCVR710XH-S2/ HCVR710XHE-S2/
HCVR41XXHE-S3/HCVR51XXH-S3/HCVR51XXHE-S3/HCVR71X
XH-S3/HCVR71XXHE-S3 /HCVR41XXHS-S2/ HCVR21XXHS-S2/
HCVR21XXHS-S3/HCVR41XXHS-S3/51XXHS-S3/7104HS-S3/
XVR41XXHE/XVR51H/XVR51XXHE/XVR71XXH/XVR71XXHE
/HCVR41XXHS-S2/ HCVR21XXHS-S2/
XVR21XXHS/XVR41XXHS/XVR51XXHS/XVR7104HS/HCVR71XX-
4M/HCVR710XH-4K/XVR51XXHS-4M/XVR51XXHS-4KL/XVR51X
XH-4M/ XVR51XXH-4KL/
XVR71XXHE-4KL/XVR51XXH-S2/XVR51HE-S2/ XVR41XXHS-S2/
XVR51XXHS-S2 Series
The front panel is shown as below. See Figure 2- 4.
Figure 2- 4
Please refer to the following sheet for front panel button information.
Icon
Name
Function
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
