Dahua XVR5104C-S2 - HCVR7104;7108 HE-S2 Series

226
video and multiple-channel data
to the HDMI port of the display
device.
9
Network port
100M Ethernet port
10
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
11
GND
Ground end
2.2.21 HCVR7104/7108HE-S2 Series

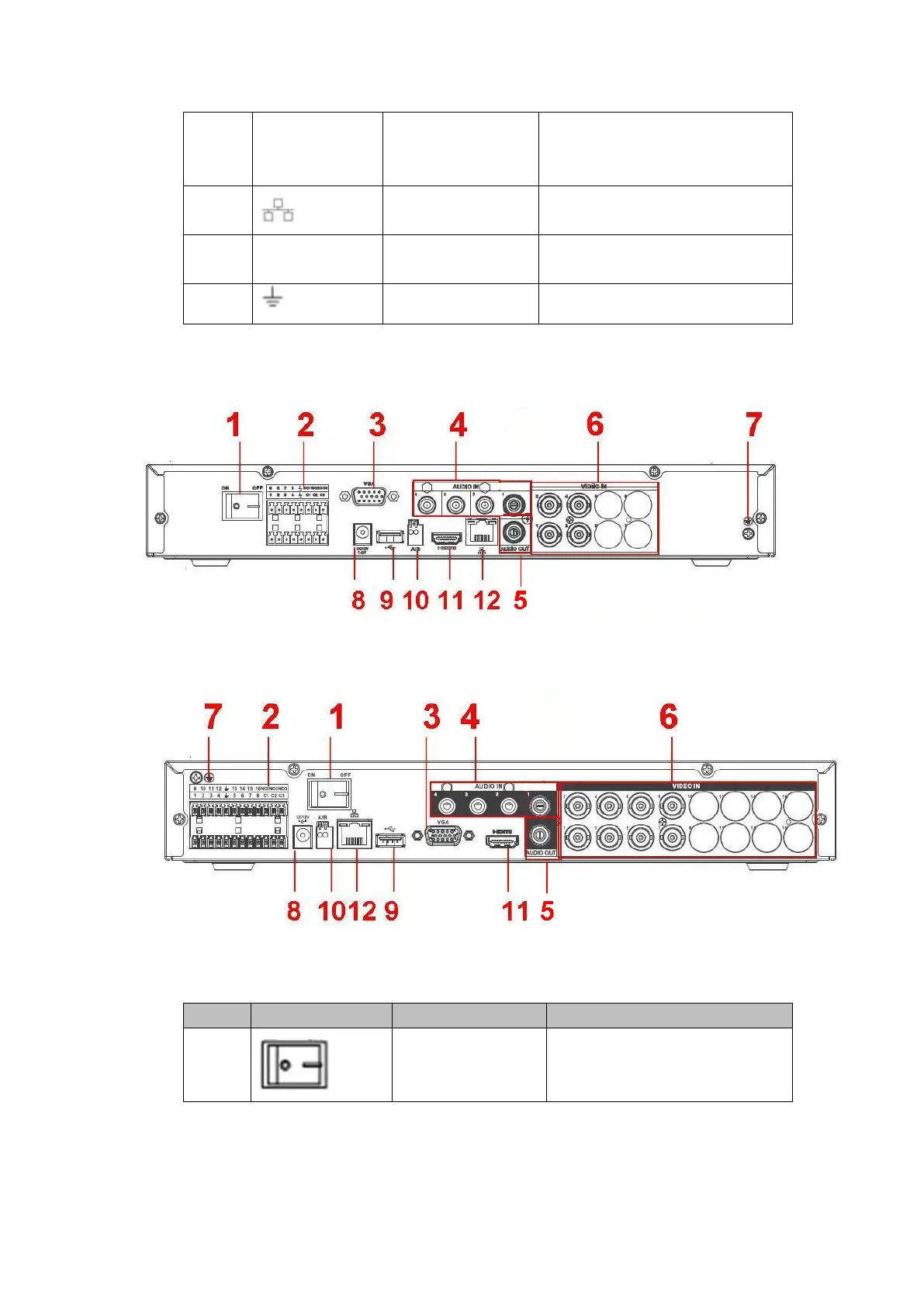

The HCVR7104HE-S2 series rear panel is shown as below. See Figure 2- 53.
Figure 2- 53
The HCVR7108HE-S2 series rear panel is shown as below. See Figure 2- 54.
Figure 2- 54
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off
button
Power on/off button.
