Dahua XVR5104C-S2 - HCVR5104;5108;5116 H-S2 Series

220
6
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
7
GND
Ground end 0
8
Power input port
Input 12V DC.
9
A
RS485（RS-485）
communication
port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control
devices such as speed dome
PTZ.
10
USB2.0 port
Connect to USB storage
device, mouse, burning
DVD-ROM and etc.
11
Network port
100M Ethernet port
12
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
2.2.18 HCVR5104/5108/5116H-S2 Series

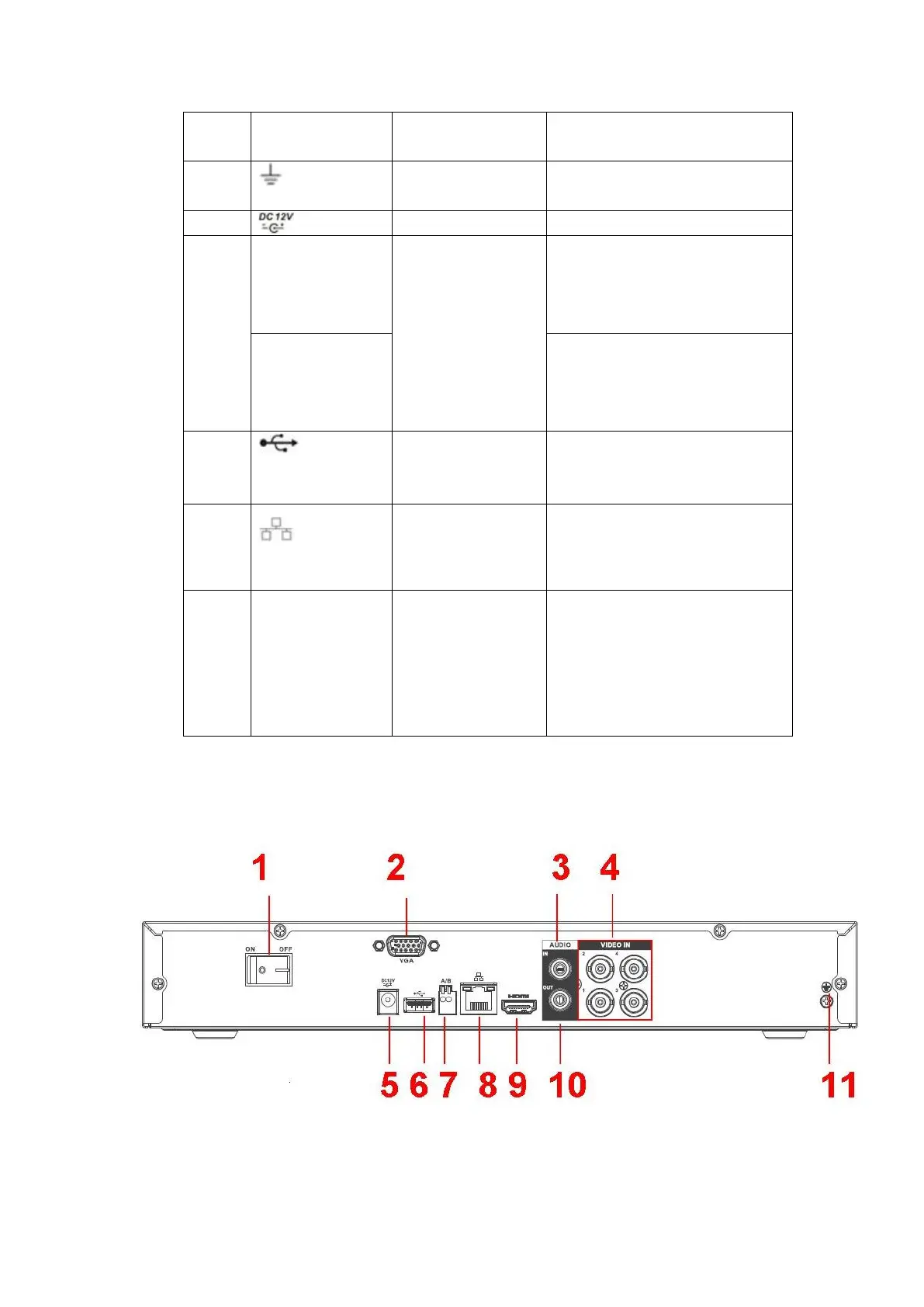

The HCVR5104H-S2 series rear panel is shown as below. See Figure 2- 45.
Figure 2- 45
The HCVR5108H-S2 series rear panel is shown as below. See Figure 2- 46.
