The following figure is based on the HCVR2116HS-S3/HCVR4116HS-S3/5116HS-S3
/XVR2116HS/XVR4116HS/XVR5116HS series product.
Figure 2- 60

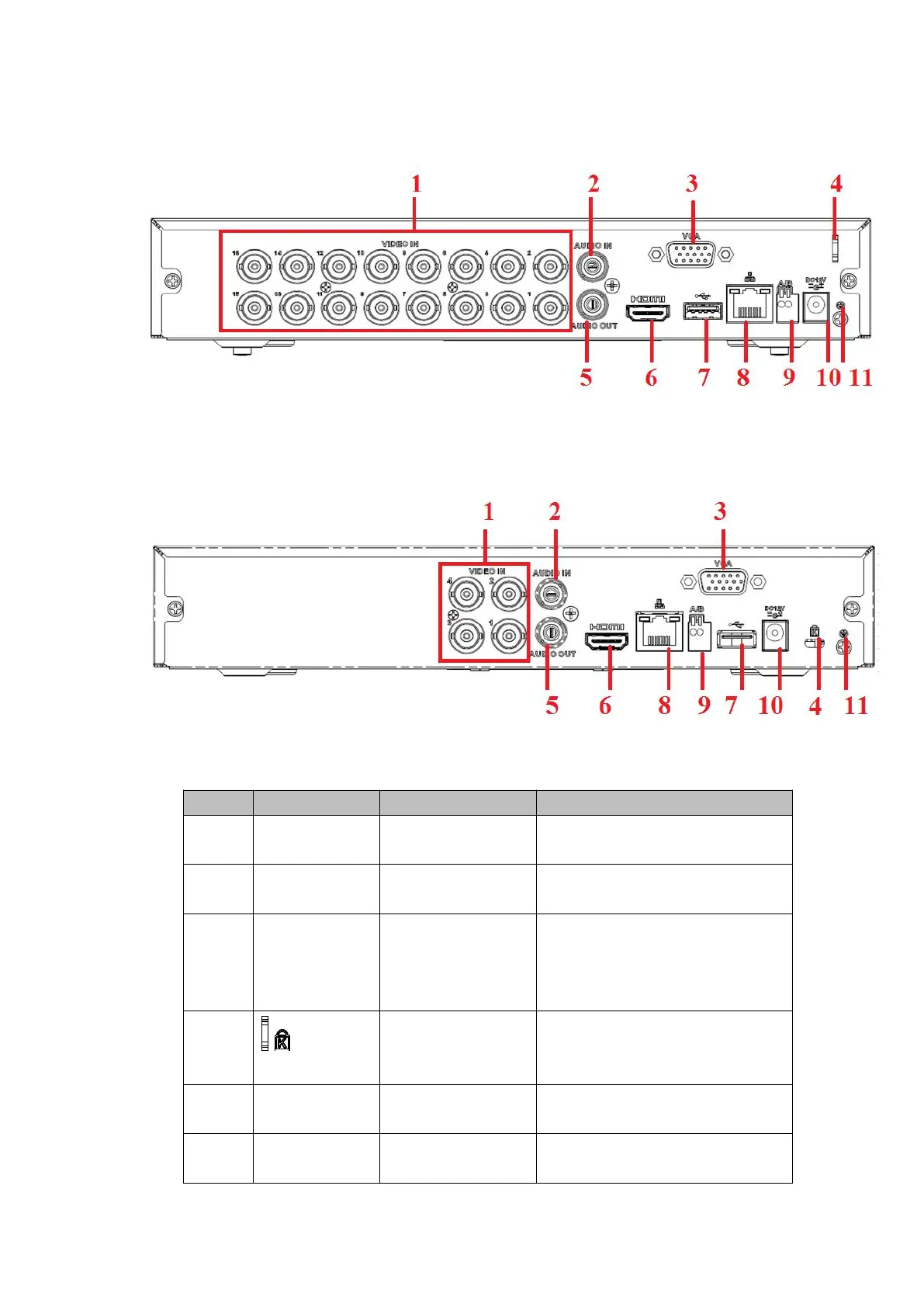

The HCVR7104HS-S3/XVR7104HS/XVR41XXHS-S2/XVR51XXHS-S2 series rear panel
is shown as below. See Figure 2- 61.
Figure 2- 61
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view analog
video output.
4
/
Power cable
fastener
Use clamp to secure the power
cable on the device in case there
is any loss.
5
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
6
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
