Dahua XVR5104C-S2 User Manual

359

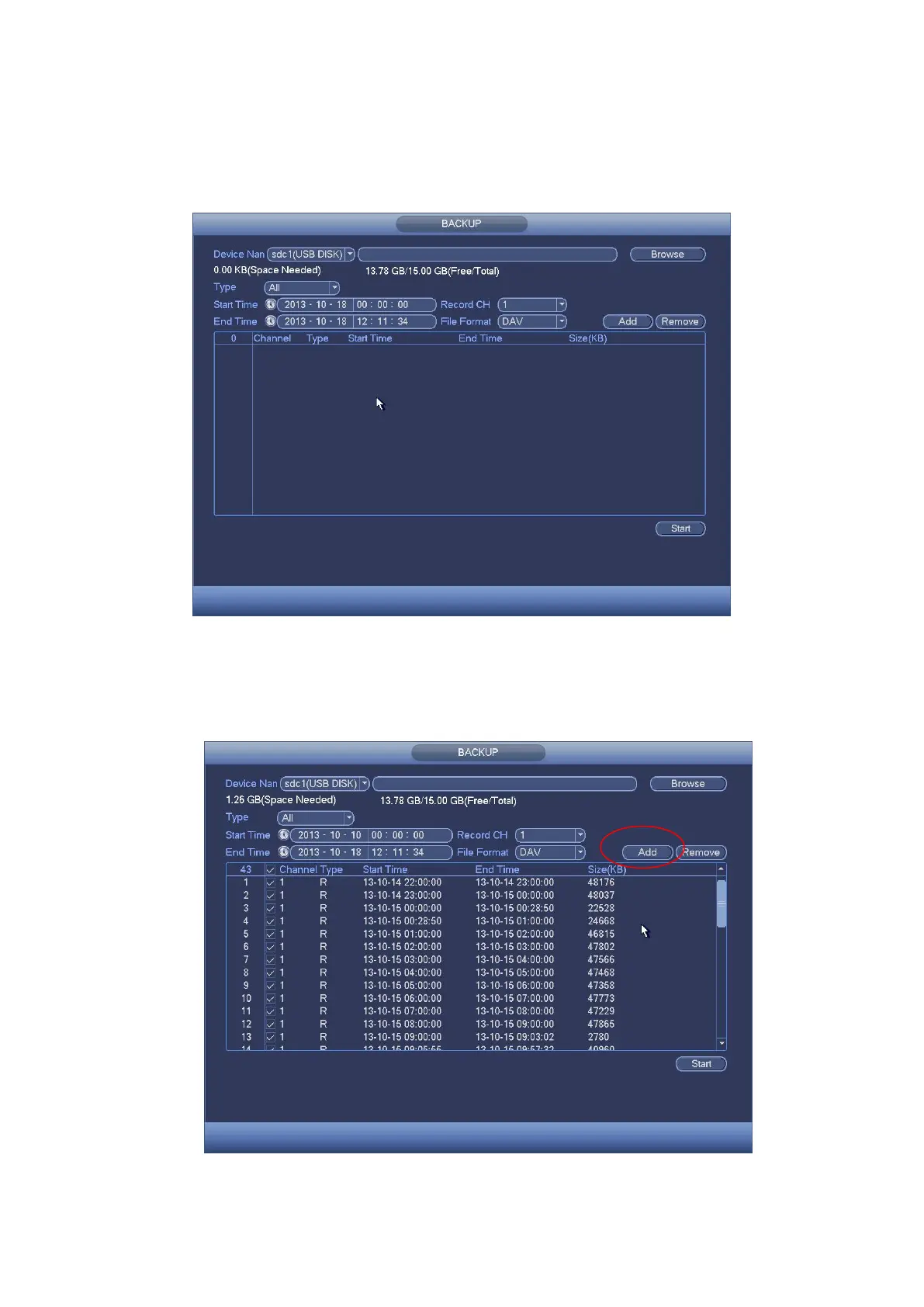

Click backup button, you can see an interface is shown as in Figure 4- 79. Here is for
you to view devices information.
You can view backup device name and its total space and free space. The device
includes CD-RW, DVD burner, USB device, flash disk, eSATA backup.
Figure 4- 79
Select backup device and then set channel, file start time and end time.
Click add button, system begins search. All matched files are listed below. System
automatically calculates the capacity needed and remained. See Figure 4- 80.
Figure 4- 80
