6 | Unit installation
Installer reference guide
27
2(A)MXM40+50 + 2(A)MXF40+50
R32 Split series
4P600463-2C – 2020.08
WARNING
The appliance shall be stored in a room without continuously operating ignition
sources (example: open flames, an operating gas appliance or an operating electric
heater).

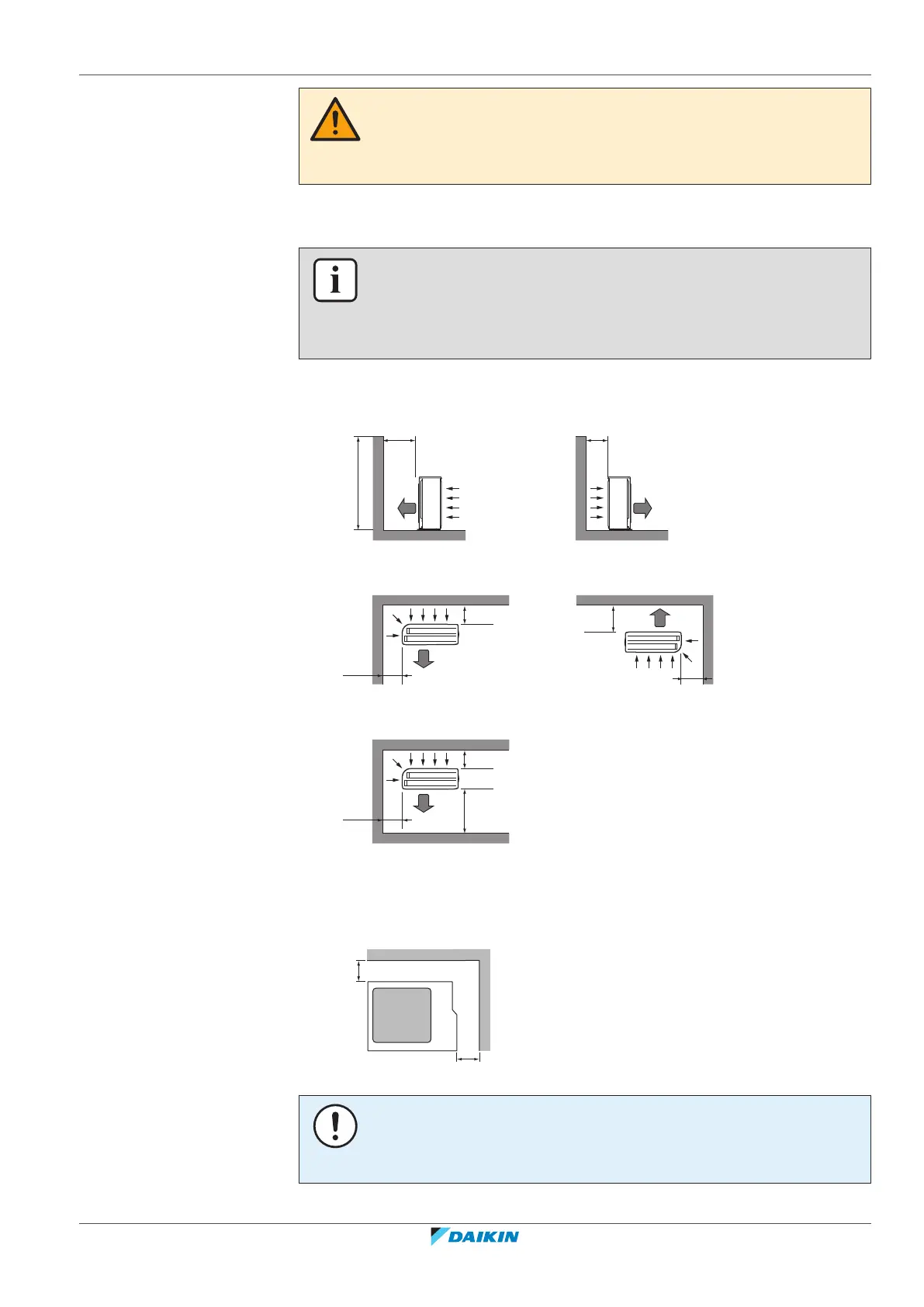

6.1.1 Installation site requirements of the outdoor unit
INFORMATION
Also read the following requirements:
▪ "2General safety precautions"[45].
▪ "7.1.3Refrigerant piping length and height difference"[435].
Mind the following spacing guidelines:
▪ Wall facing 1 side:
(mm)
>50
a
b
>100
<1200
a
b
▪ Wall facing 2 sides:
(mm)
>100
>50
b
a
>150
>50
b
a
▪ Wall facing 3 sides:
(mm)
>150
>50
>300
b
a
a Air outlet
b Air inlet
Allow 300mm of work space below the ceiling surface and 250mm for piping and
electrical servicing.
>250
>300
(mm)
NOTICE
▪ Do NOT stack the units on each other.
▪ Do NOT hang the unit on a ceiling.
