9 | Electrical installation
Installer reference guide
53
2(A)MXM40+50 + 2(A)MXF40+50
R32 Split series
4P600463-2C – 2020.08

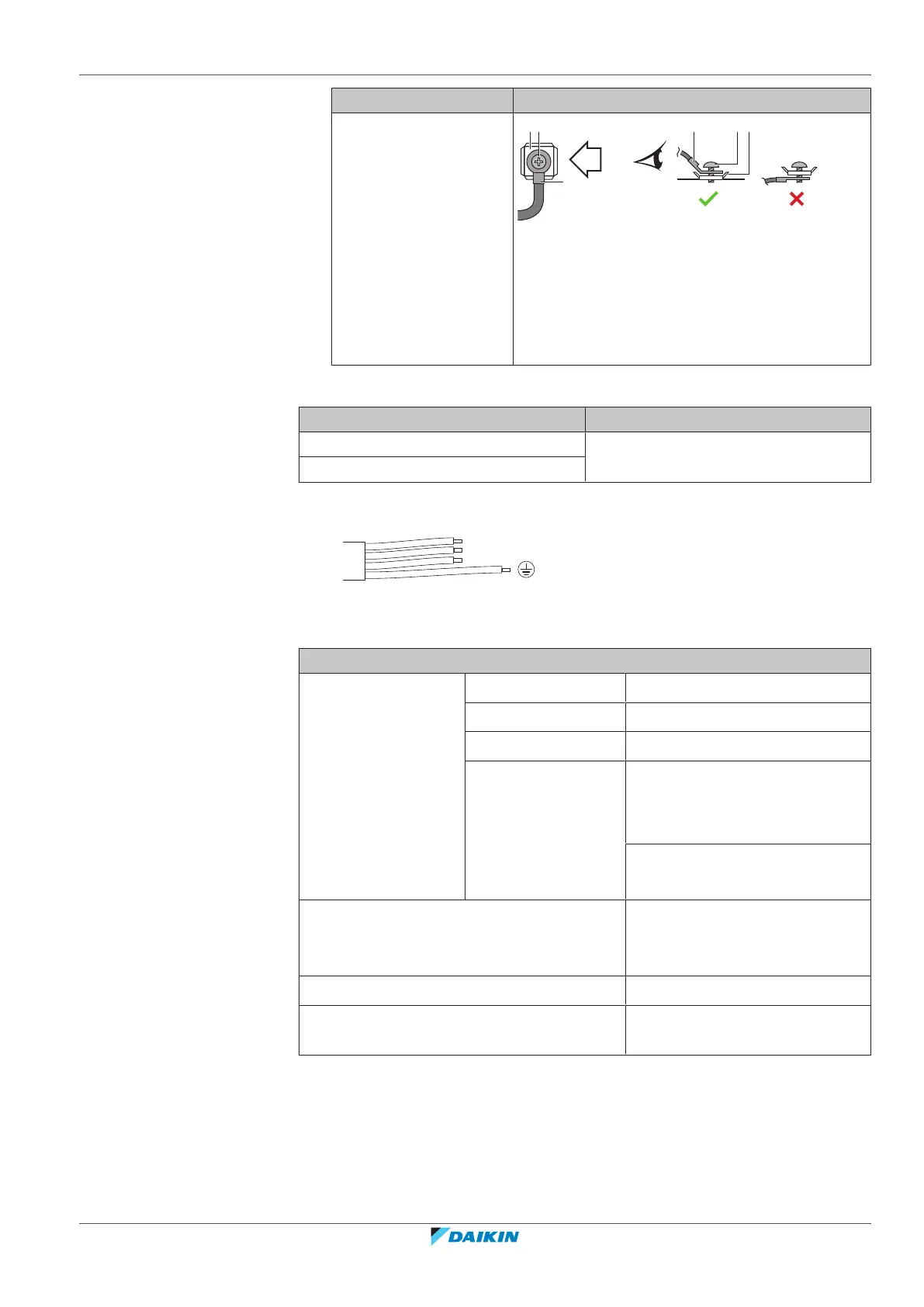

Wire type Installation method
Stranded conductor wire
with round crimp-style
terminal
c b ba c
a
B
B
a Terminal
b Screw
c Flat washer
O Allowed
X NOT allowed
Tightening torques
Item Tightening torque (N•m)
M4 (X1M) 1.2
M4 (earth)
▪ The earth wire between the wire retainer and the terminal must be longer than
the other wires.
1-3
9.1.3 Specifications of standard wiring components
Component
Power supply cable Voltage 220~240V
Phase 1~
Frequency 50Hz
Wire type 3-core cable 2.5mm
2
H05RN-F (60245 IEC 57)
H07RN-F (60245 IEC 66)
3-core cable 4.0 mm
2
H07RN-F (60245 IEC 66)
Interconnection cable (indoor↔outdoor) 4-core cable 1.5mm
2
or 2.5mm
2
and applicable for 220~240V
H05RN-F (60245 IEC 57)
Recommended circuit breaker 16A
Residual current device MUST comply with applicable
legislation
9.2 To connect the electrical wiring to the outdoor unit
1 Remove the switch box cover (2 screws).
