ESIE16-02B | Part 5. Appendix 5.5. Component overview of unit
RA R32 Split & multi split M-Series
Page 110 4/04/17 | Version 1.1
5.5. Component overview of unit
5.5.1. Indoor unit
Not available yet.
5.5.2. Outdoor unit

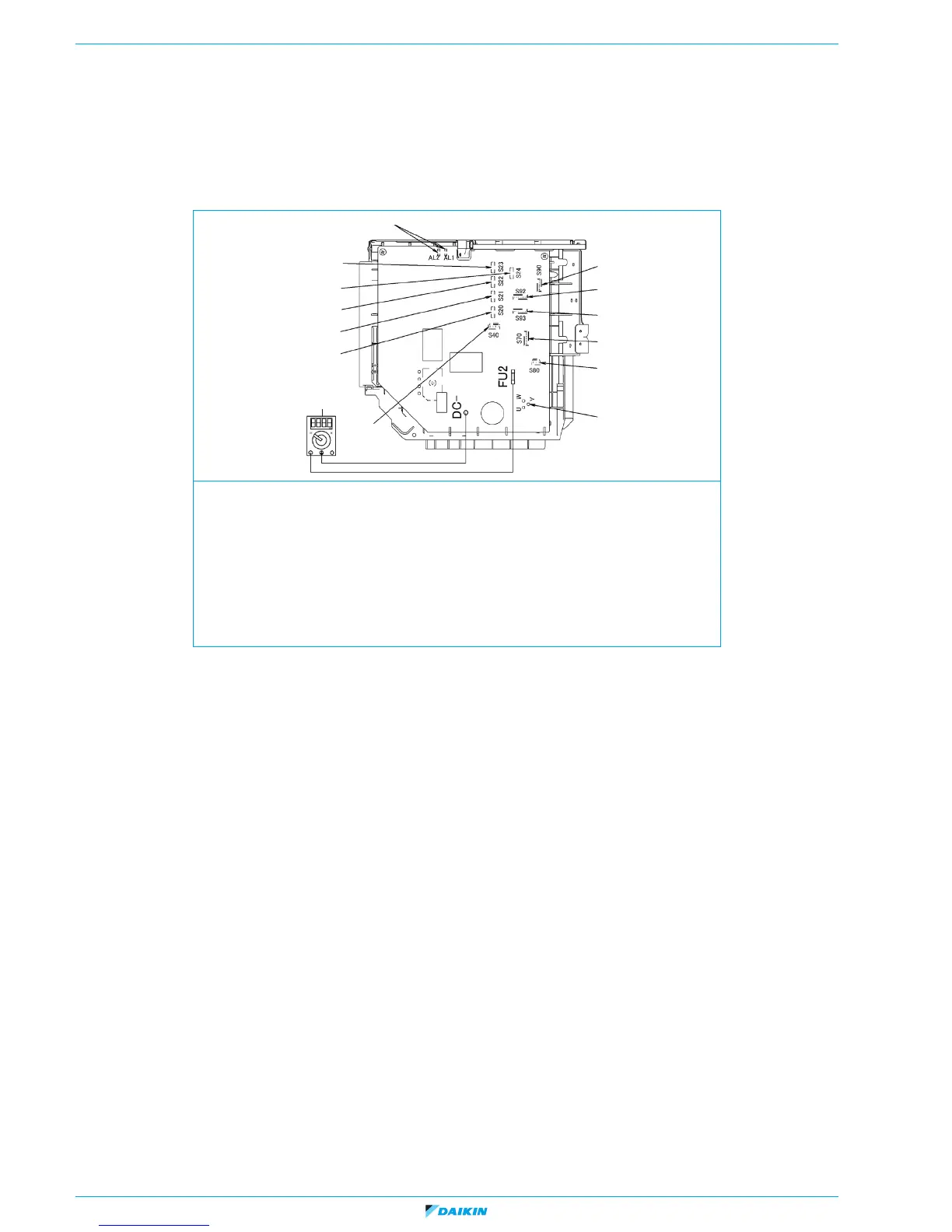

Figure 5-27: Component overview - outdoor unit
1. Thermistor lead wire connector 8. Multimeter (DC voltage range)
2. Thermistor lead wire connector (gas pipe) 9. Electronic expansion valve coil lead wire connection
(room - A)
3. Thermistor lead wire connector (liquid pipe) 10. Electronic expansion valve coil lead wire
connection (room - B)
4. Fan motor lead wire connector 11. Electronic expansion valve coil lead wire
connection (room - C)
5. Four way valve lead wire connector 12. Electronic expansion valve coil lead wire
connection (room - E) *
6. Compressor lead wire connector 13. Electronic expansion valve coil lead wire
connection (room - D) *
7. OL lead wire connector * high pressure switch 14. Solenoid valve lead wire connector *
* may not be present depending on the model
1
2
3
4
5
6
7*
8
9
10
11
12*
13*
14*
