Daikin 4MXM-M

ESIE16-02B | Part 3. Repair 3.3. Unit specific repair procedures
Page 68 4/04/17 | Version 1.1
RA R32 Split & multi split M-Series
3.3.2. Outdoor unit
3.3.2.1. Basic removal
3.3.2.1.1 Single fan outdoor unit
3.3.2.1.2 Removing refrigerant connection cover
PRELIMINARY ACTIONS
1. Switch off the Daikin unit via the user interface.
2. Switch off the Daikin unit with the field supplied circuit breaker.
PROCEDURE
Removal
1. Loosen and remove 1 screw (1) that fix the refrigerant connection cover.

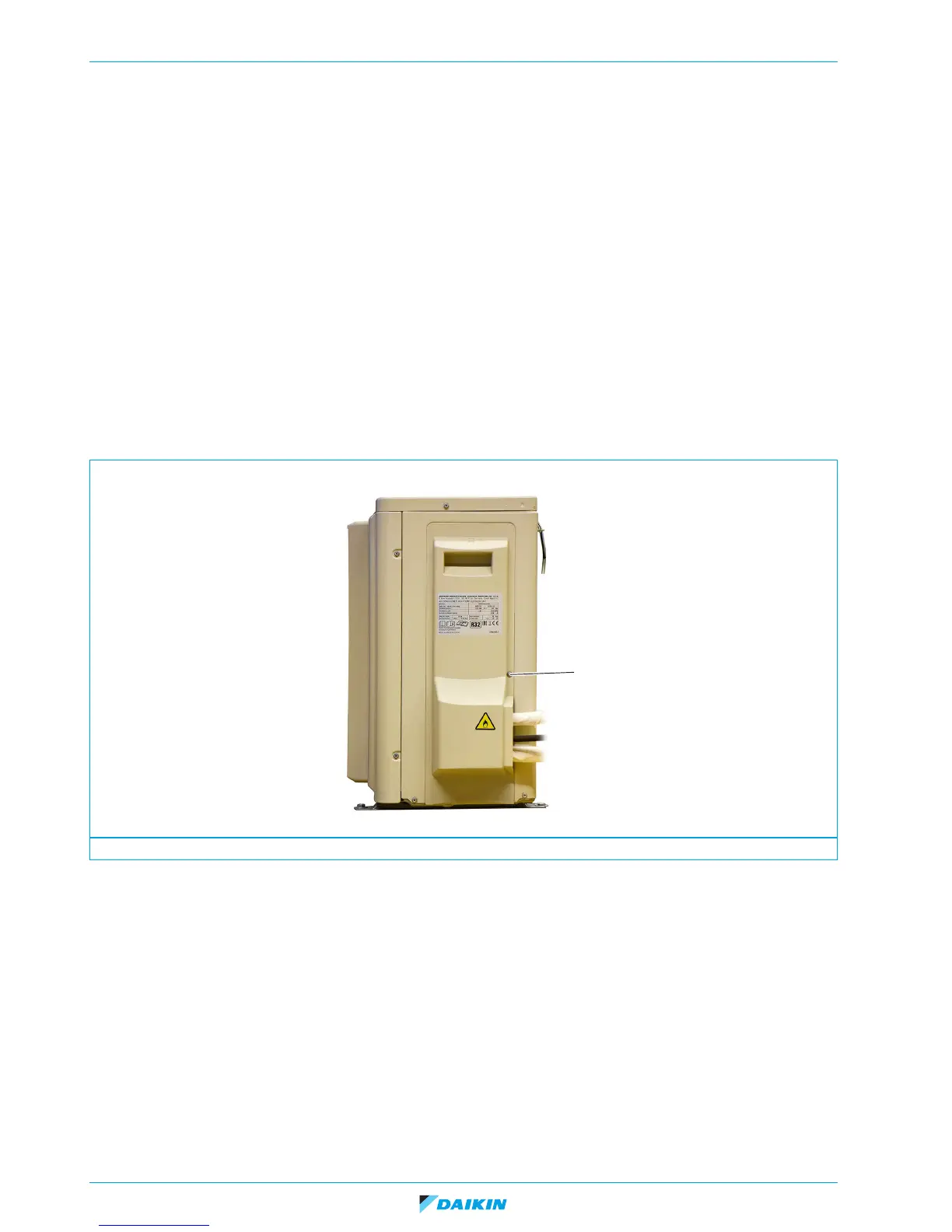

Figure 3-3: Removing refrigerant connection cover
3.3.2.1.3 Removing the top plate
PRELIMINARY ACTIONS
1. Switch off the Daikin unit via the user interface.
2. Switch off the Daikin unit with the field supplied circuit breaker.
PROCEDURE
Removal
1. Loosen and remove the 2 screws (1) that fix the top plate.
1. Screw
1
