Daikin 910193131 - Thermostat Overview and Controls; Thermostat Controls and Specifications

2

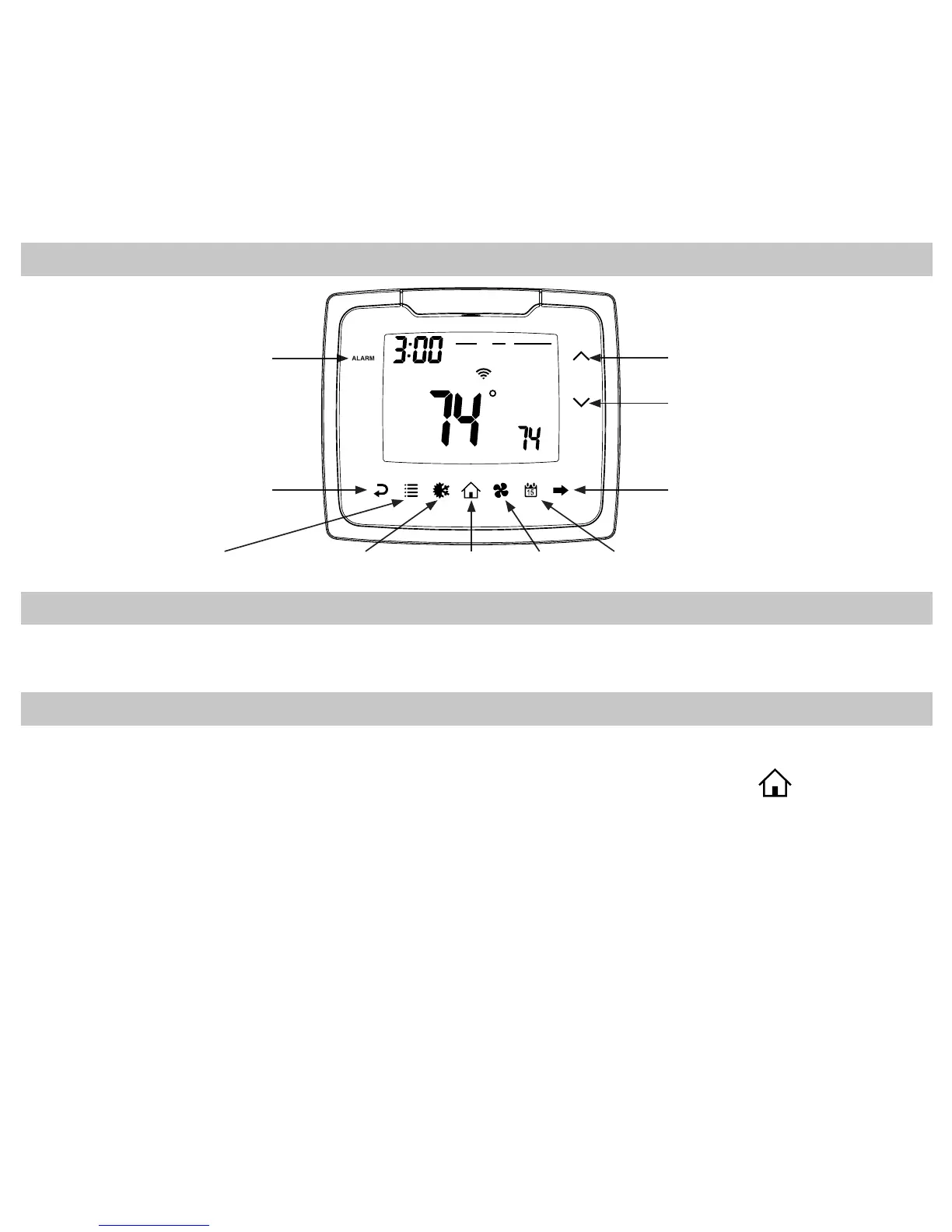

Thermostat Controls
Left Arrow
(Go Back)
Alarm
Right Arrow
(Forward)
Down Arrow
Up Arrow
HomeMenu Mode (Heat/Cool) Fan Schedule
Package Contents/Tools Required
Package includes: Thermostat, base, wiring labels, screws, wall anchors, and Installation, Operation and Application Guide.
Tools required for installation: Drill with 3/16” bit, hammer, screwdriver
AUTO
SCHEDULE
COOL
FAN
COOL
MODE
PM
OFF
Wed
Specifications
Electrical Rating: 24 VAC (18-30 VAC), 1 amp maximum per output terminal, 5 amp maximum total load
Temperature Control Range: 45°F to 90°F (7°C to 32°C) Accuracy: ±1°F (±0.5°C)
Anti-short Cycle: 4 minutes (bypass anti-short cycle delay by returning to OFF mode and pressing the icon)
Backlight Operations: 15 seconds
Water Source Heat Pump Configurations:
Daikin P/N I3 Wi-Fi Thermostats
910193130 2-stage heat, 2-stage cool, 2 speed fan, Wi-Fi
910193131 2-stage heat, 2-stage cool, Wi-Fi
910193132 2-stage heat, 3-stage cool, Wi-Fi
910193133 3-stage heat, 2-stage cool, Wi-Fi
910193134 2-stage heat, 2-stage cool, dehumidification, Wi-Fi
