Indoor Unit SiUS181305E

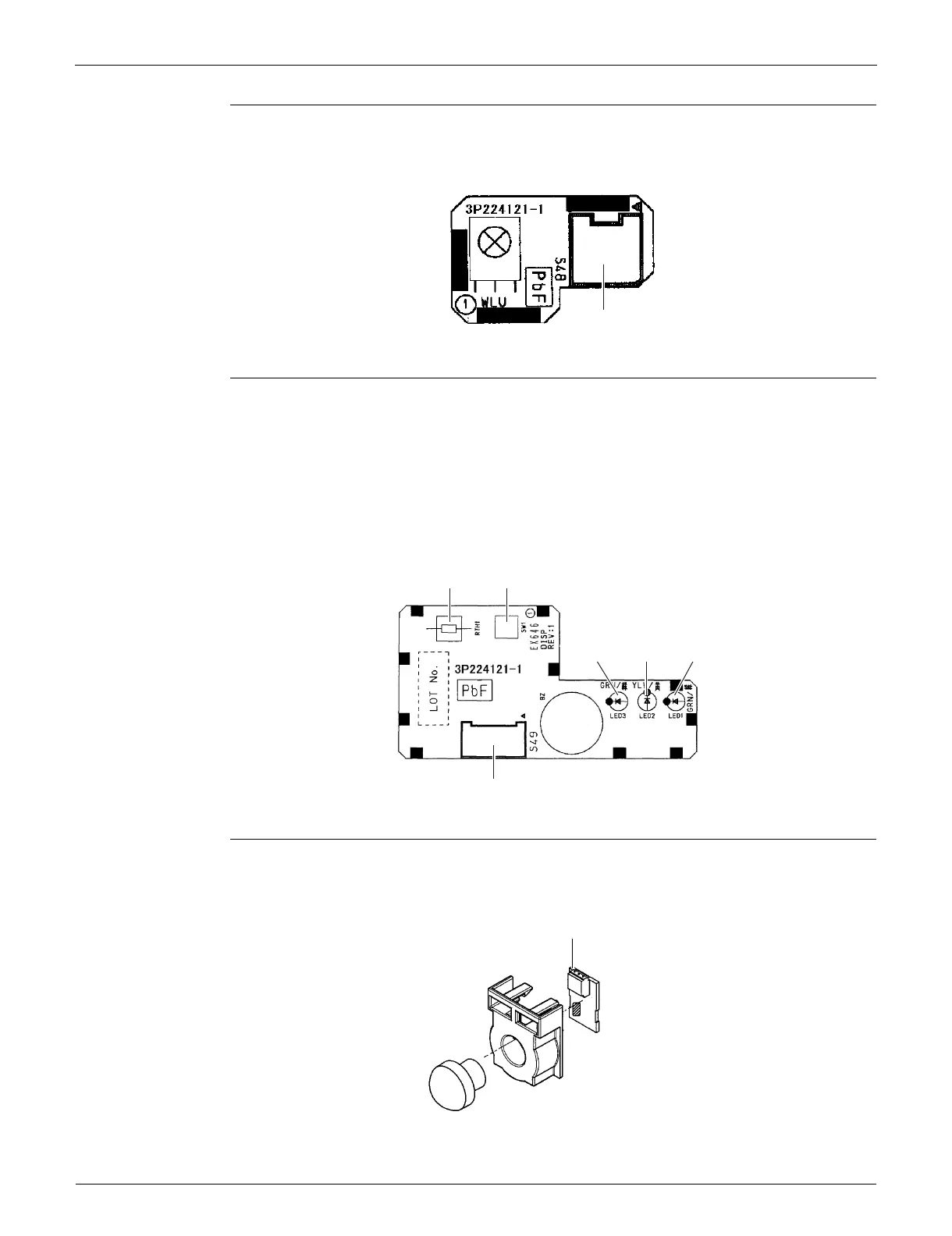

23 Printed Circuit Board Connector Wiring Diagram
Signal Receiver
PCB
Display PCB
INTELLIGENT
EYE Sensor PCB
1) S48 Connector for control PCB
1) S49 Connector for control PCB
2) SW1 Forced operation ON/OFF button
3) LED1 (H1P) LED for operation (green)
4) LED2 (H2P) LED for timer (yellow)
5) LED3 (H3P) LED for INTELLIGENT EYE (green)
6) RTH1 (R1T) Room temperature thermistor
3P224121-1
RTH1 SW1
LED3 LED2 LED1
S49
1) S36 Connector for control PCB
To Next Page
