Control Devices EDUS39-605
42 Controls

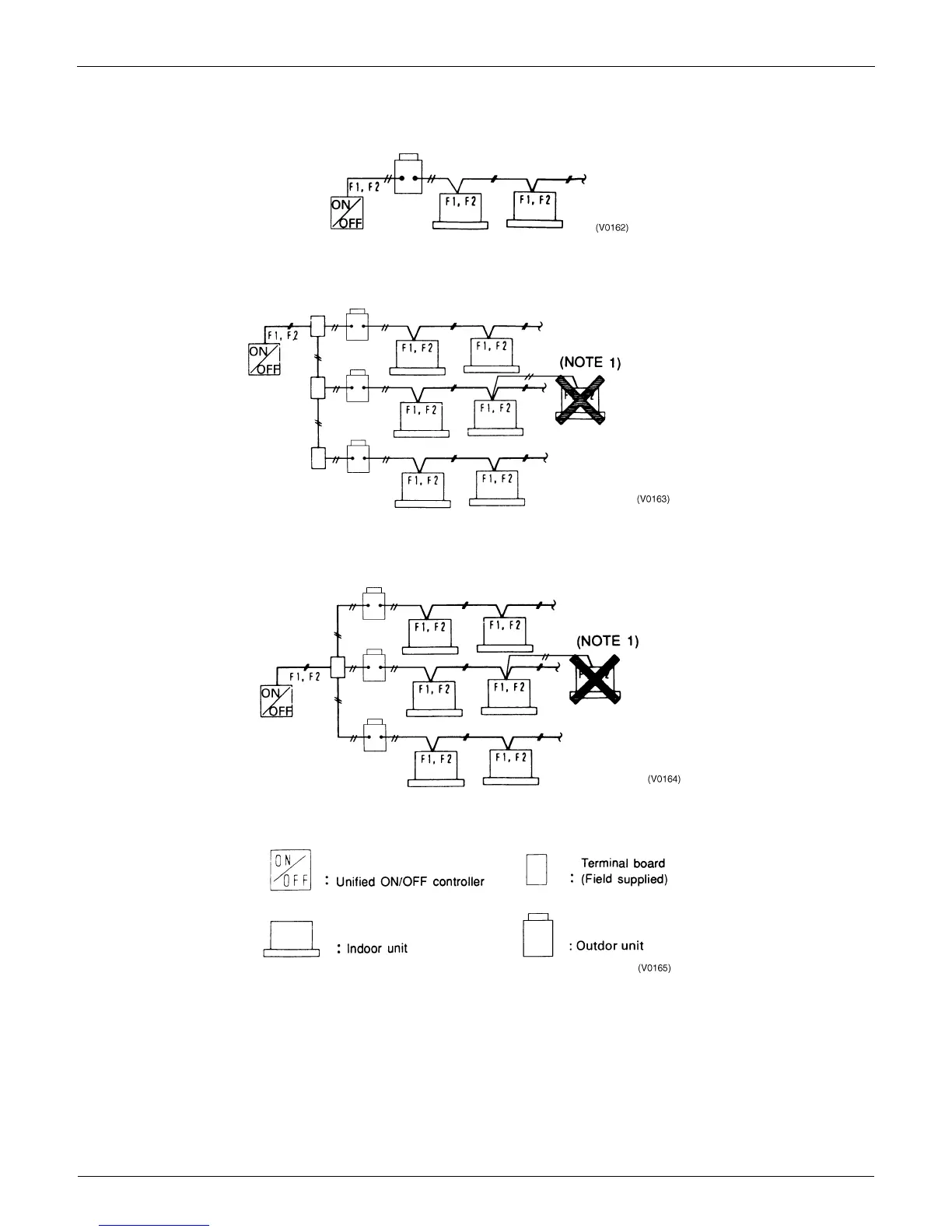

Examples of Wiring for Transmission
1. Series Wiring
2. Bus Type Wiring: Can be branched up to 16 branches
Example of 3 branches
3. Star Type Wiring: Can be branched up to 16 branches
Example of 3 branches
Note:
1. No branching is permitted from the daisy chain.
2. Use a relay terminal board (field supplied) to branch more than 3 control wires from the same terminal board.
To Next Page
