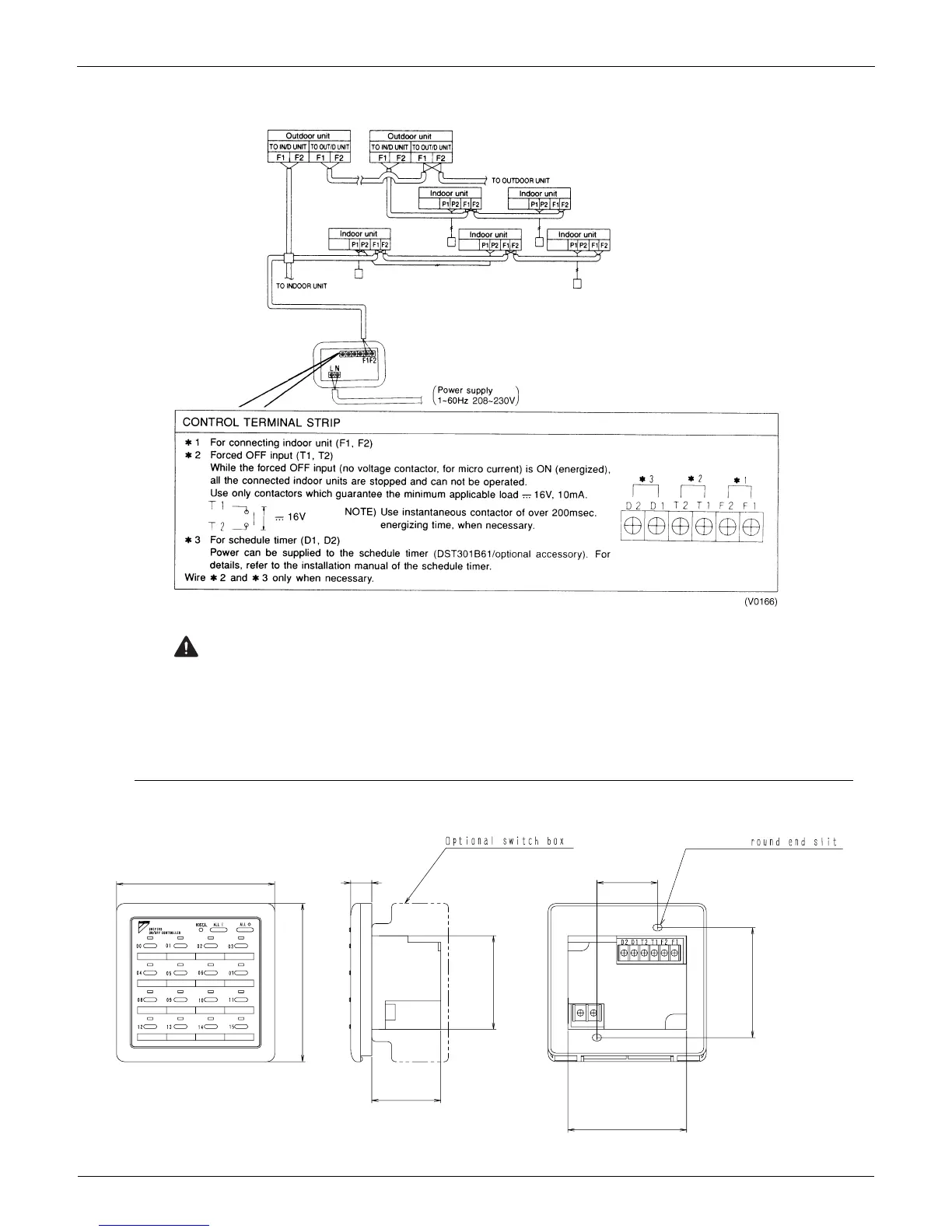

Wiring to the Indoor Unit and Outdoor Unit
WARNING:
Do not connect the power supply wiring to the control terminal strip. If connected by mistake, it may damage or
burn electrical parts of optional controllers for centralized control and indoor unit and can be dangerous. Be
sure to check wirings before turning the power ON.
2.5.3 Dimensions
Unified ON/OFF Controller DCS301C71
2 3/4
3 1/4
4 3/4
4 3/4 5/8 1 3/4
3 1/2
2 1/8
Unit (in.)
2 3/16×1/4
