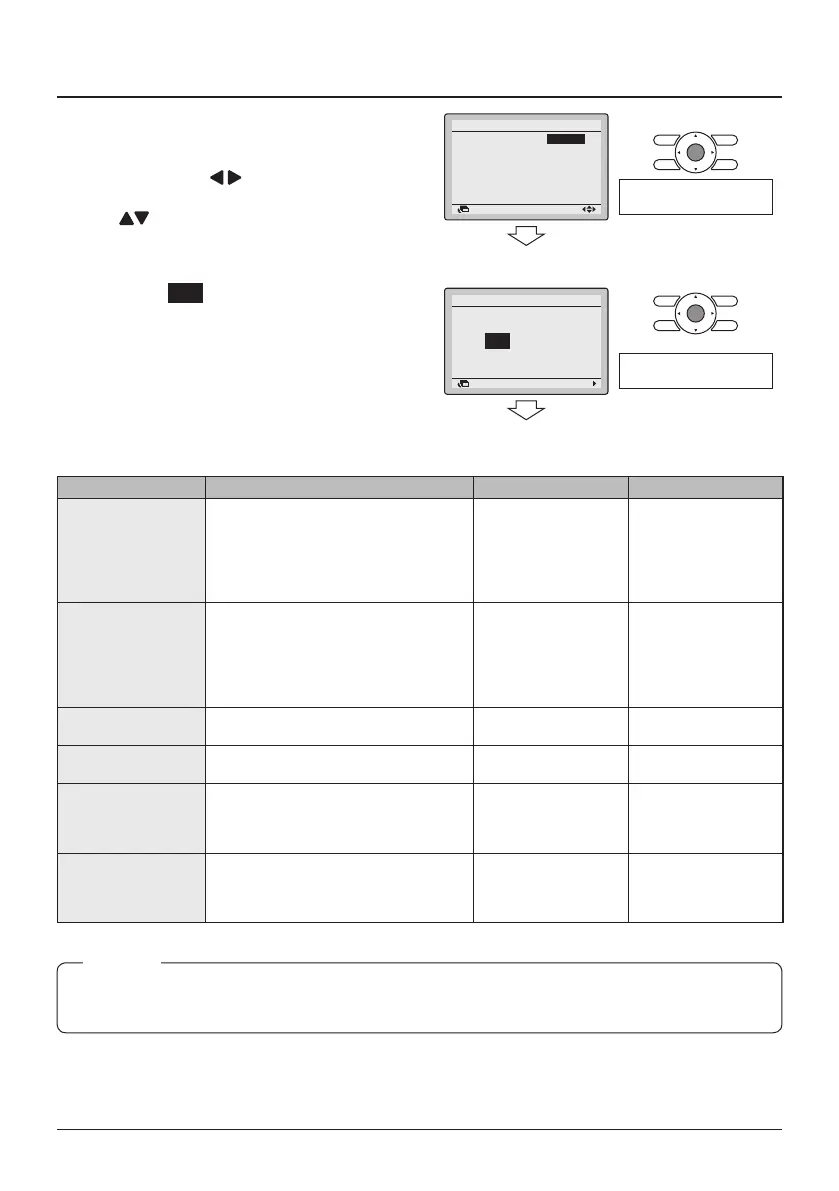

External Input Interlock Function
18-3 Select “B2 Delay Timer”, “B2 Reset
Timer”, “Reset On/Off”, “Reset Mode”,
“Reset Cool SP” or “Reset Heat SP”
by using the (Left/Right) buttons
and change the settings by using the
(Up/ Down) buttons.
18-4 Press the Menu/Enter button. The
conrmation screen is displayed.
18-3
18-4
SettingReturn
B2 Delay Timer
B2 Reset Timer
Reset On/Off
Reset Mode
Reset Cool SP
Reset Heat SP
:1min
:20hrs
:OFF
:--
:22°C
:22°C
External Input Interlock
Press the Menu/Enter
button.
18-5 Select Yes and press the Menu/
Enter button. The settings are
entered and the Service Settings
menu returns.
18-5
SettingReturn
Save the settings?
External Input Interlock
NoYes
<Service Settings>
Press the Menu/Enter
button.
Parameter Explanation Possible values Default value
B2 Delay Timer Timer that starts after removing the Key
Card. As long as this timer does not
expire, the unit continues to operate
normally.
0 - 10 minutes “1 min”
B2 Reset Timer Timer that starts when Delay Timer has
expired. When this timer expires, the
previous state changes to the "Default
Reset Setting" state.
0 – 20 hours “20 hrs”
Reset On/Off "Default Reset Setting" On/Off state. “ON”, “OFF”, “--“ “OFF”
Reset Mode "Default Reset Setting" operation mode. “Auto”, “Cool”, “Heat”,
“Fan”, “--“
“--“
Reset Cool SP "Default Reset Setting" cooling setpoint. See indoor unit’s
setpoint range and
setpoint range
limitation, “--“.
“22°C”
Reset Heat SP "Default Reset Setting" heating setpoint. See indoor unit’s
setpoint range and
setpoint range
limitation, “--“.
“22°C”
● When a parameter is “--“, this means that nothing will be changed for this parameter and the
current active value is kept.
NOTE
