Daikin BRC1E53 - 3. Remote Controller Installation Procedure; 3-1 Location Selection; 3-2 Wiring Through Hole

BRC1E53 Installer reference guide
4P419250-1
–
2015.10
4

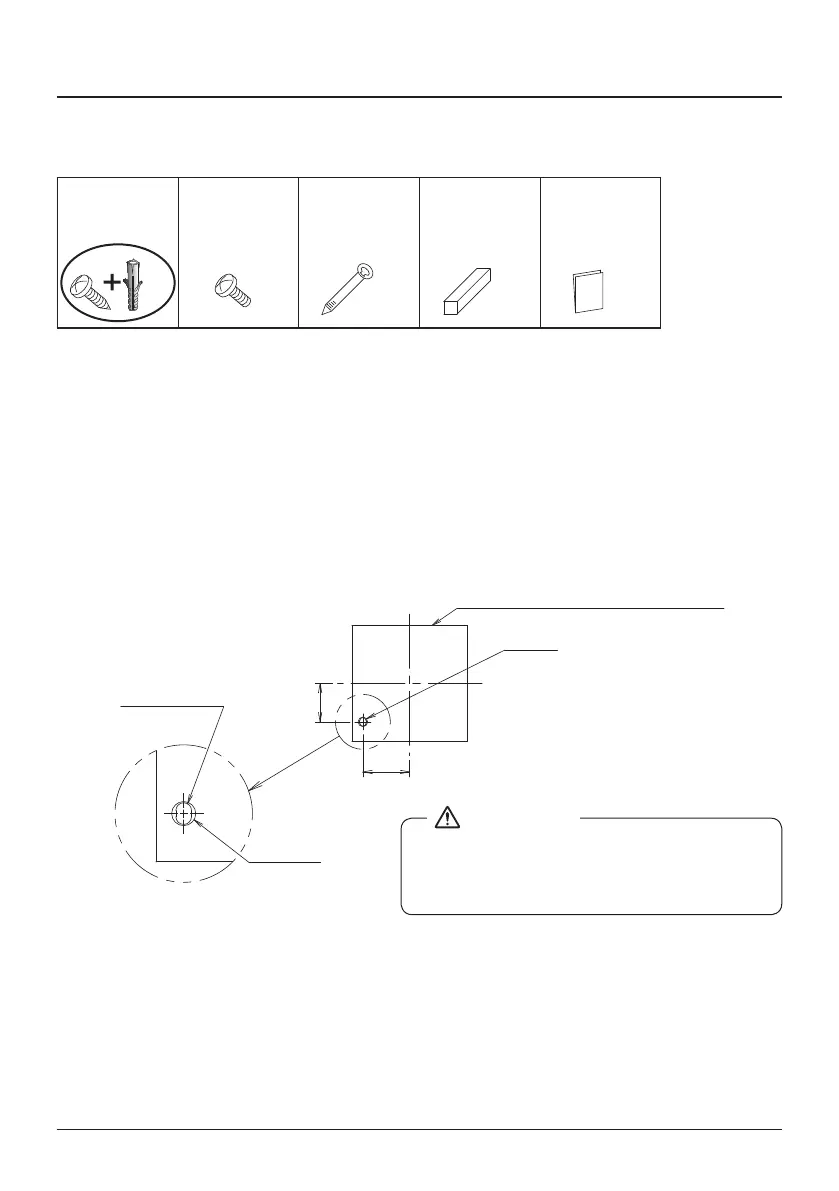

Accessories
2. Accessories
The following accessories are included.
Wood screw +
wall plugs Small screw Clamp Wiring retainer
Installation and
operation
manual(Ø4.0x30) (M4×16)
2x
2x
2x
1x
1x
7x
3. Remote controller installation
procedure
3-1 Determine where to install the remote controller.
Make sure to follow "1. Safety Precautions" when determining the location.
3-2 Make a wiring through hole on the wall if the wires are
coming out from the rear.
Set the center of the wall hole
to the center of the wiring
through hole on the controller
lower case when making the
hole.
40
48.5
Lower case
Through hole
Ø8-10
Through
hole
External view of the remote controller
Ø8-10
If the hole size is too large or the location is not
proper, the hole may come out from the
controller.
CAUTION
