Installer reference guide BRC1E53
5
4P419250-1 – 2015.10
Remote controller installation procedure

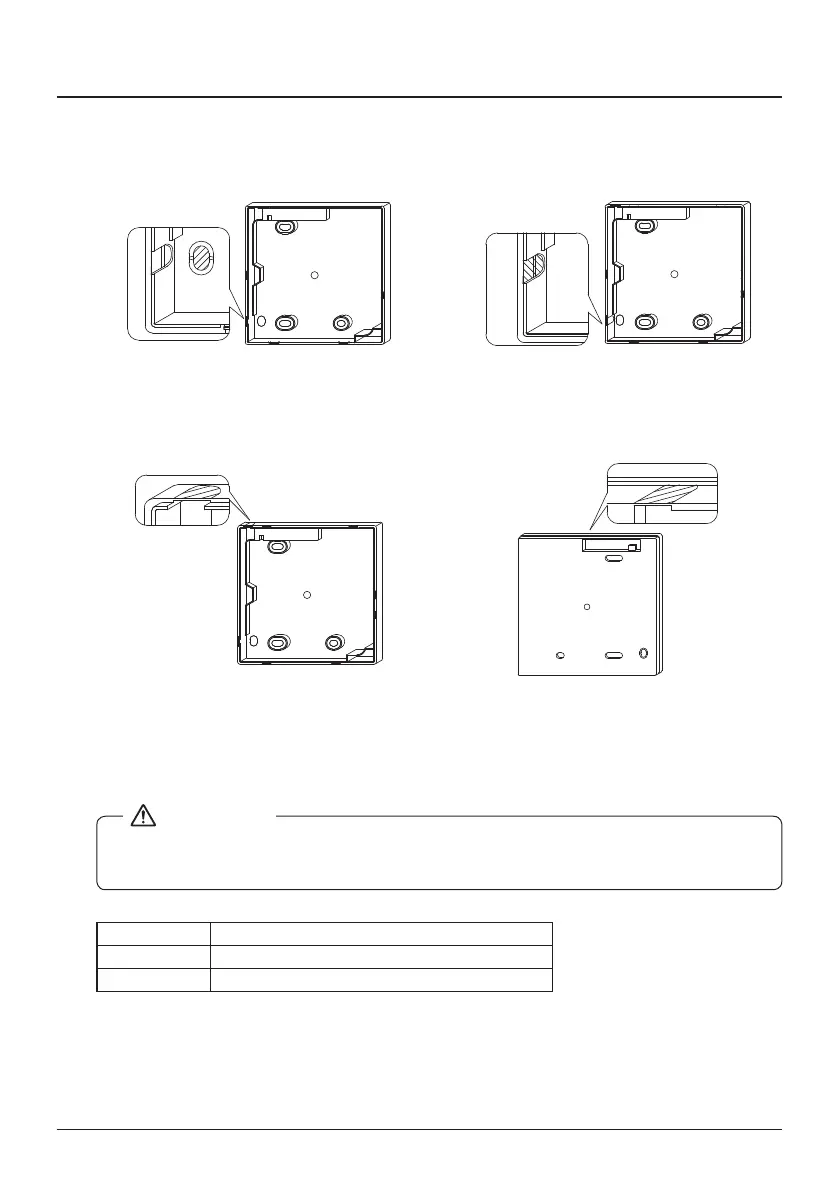

3-3 Determine the direction of the controller wiring outlet (rear
outlet, left outlet, top left outlet, top center outlet).
3-3-1 Rear outlet 3-3-2 Left outlet
Cut off the resin area (hatched area). Cut off the thin area (hatched area) with
nippers or the like and then remove the burrs
with a le or the like.
3-3-3 Top left outlet 3-3-4 Top center outlet
Cut off the thin area (hatched area) with
nippers or the like and then remove the burrs
with a le or the like.
Cut off the thin area (hatched area) with
nippers or the like and then remove the burrs
with a le or the like.
3-4 Conduct wiring.
1. The switchbox and the transmission wiring should not be attached.
2. Do not directly touch the remote controller PCB.
CAUTION
Wiring Specications
Wiring Type Sheathed vinyl cord or cable
Wiring Size 0.75~1.25 mm²
Wiring Length Max. 500 m
(*)
*This is the total length in the system when using group control.
