BRC1E53 Installer reference guide
4P419250-1
–
2015.10
6
Remote controller installation procedure

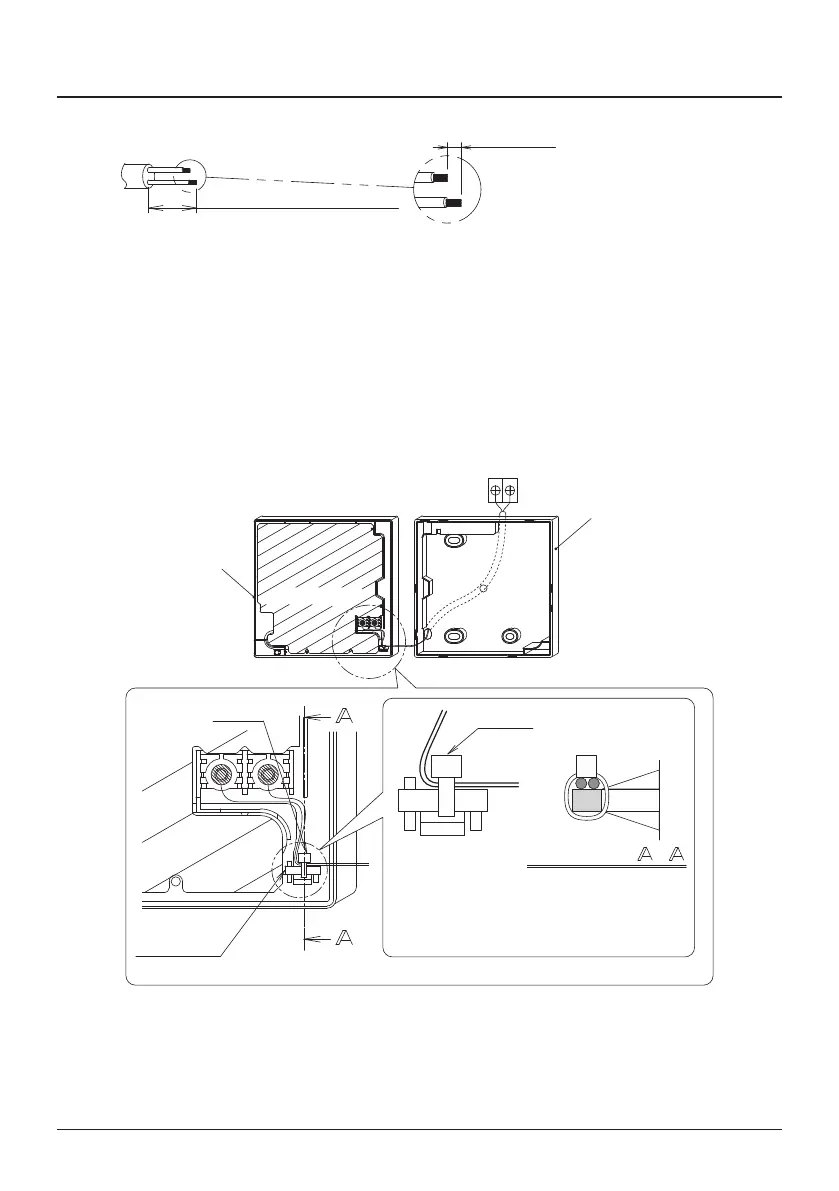

The sheath part in the remote controller case should be stripped following these instructions.
For easy wiring, it is better to
keep ±10 mm difference
between the length of the two
wires.
Cutting guideline
of the wiring
Peel the shield and sheath
Sheath stripping length:
● ±150 mm for top left outlet
● ±200 mm for top center outlet
Connect the terminals (P/P1, N/P2) of the remote controller to the terminals (P1, P2) of the
indoor unit. (P1 and P2 have no polarities.)
3-4-1 Rear outlet
Secure the wiring at
the wiring fixing point
by using the attached
clamp.
Clamp
-Cross-section
Wiring fixing
point
Clamp
PCB
Upper case
P2
P1
Lower case
<Wiring fixing guideline>
To Next Page
