Installation Manual EDUS721438
62 BRC1E73
3P243521-7L
English 7

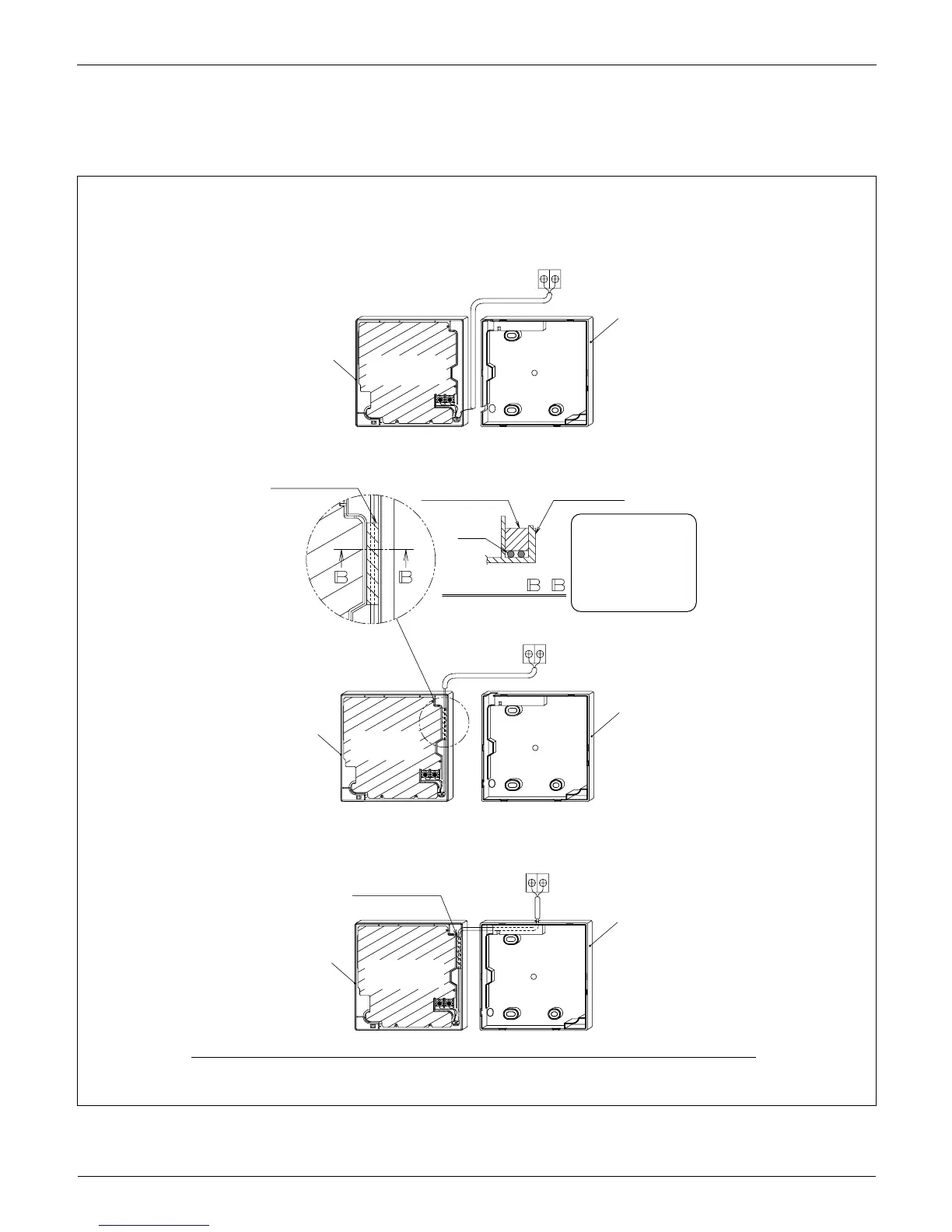

Left outlet3-5-2
Lower case
Upper case
Indoor unit
P1P2
Printed-circuit
board
Top left outlet3-5-3
As shown to the left,
install the furnished
wiring retainer to
prevent the wires
from being pinched
during installation.
Indoor unit
Wiring retainer
Wiring retainer
Upper case
Lower case
Upper case
Wire
Cross-section -
P1P2
Printed-
circuit board
Top center outlet3-5-4
Indoor unit
Wiring retainer
Upper case
Lower case
P1P2
Printed-circuit
board
