6 | Unit installation
Installer reference guide
24
FTXTP-M_FTXTP-N
Daikin room air conditioner
4P728168-4 – 2023.03

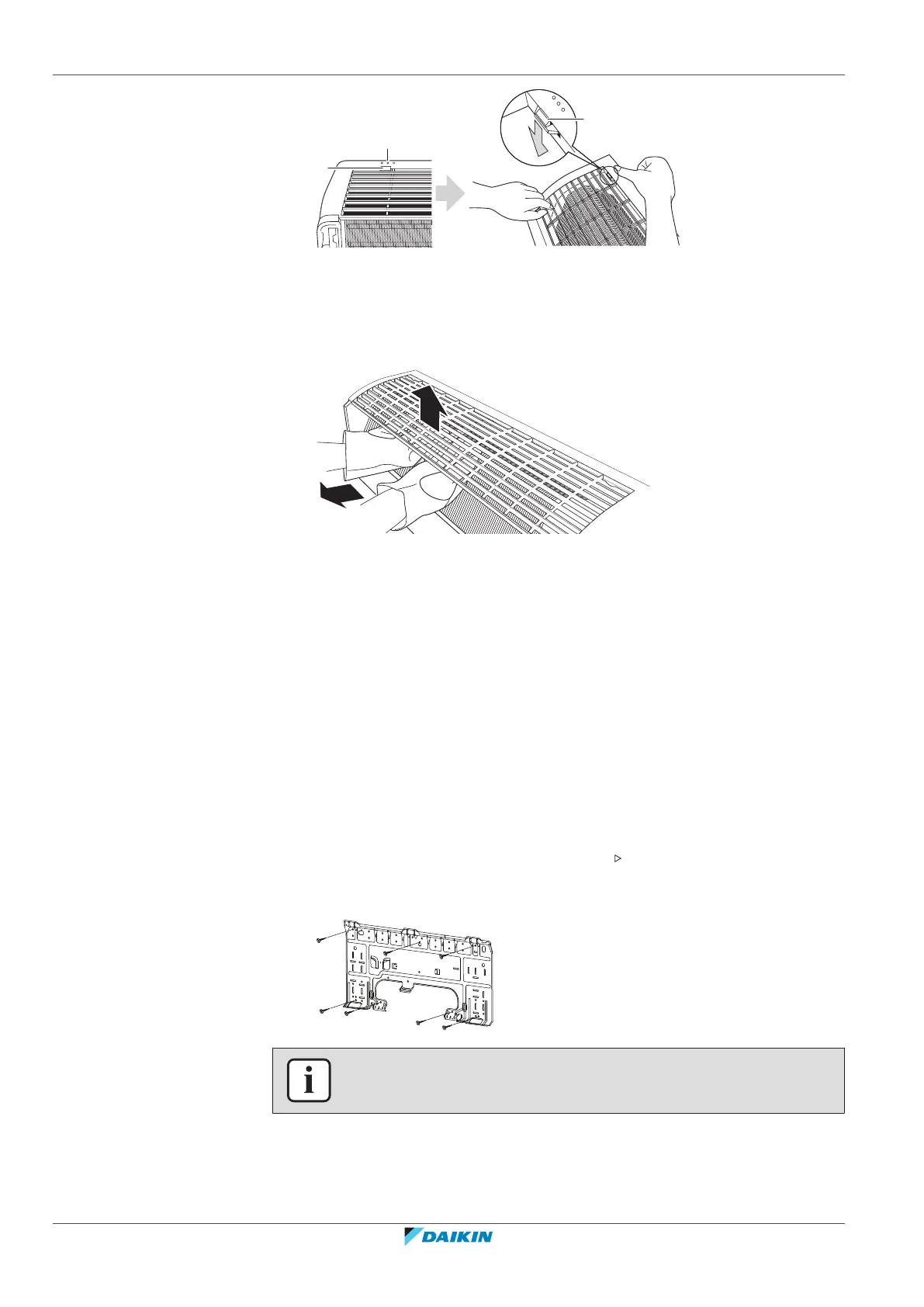

a
b
a
a Upper hook
b Symbol with 3 circles
4 We recommend opening the flap before removing the front grille.
5 Place both hands under the centre of the front grille, push it up and then
toward you.
1
2
6.3 Mounting the indoor unit
In this chapter
6.3.1 To install the mounting plate................................................................................................................................. 24
6.3.2 To drill a wall hole .................................................................................................................................................. 25
6.3.3 To remove the pipe port cover.............................................................................................................................. 25
6.3.1 To install the mounting plate
1 Install the mounting plate temporarily.
2 Level the mounting plate.
3 Mark the centres of the drilling points on the wall using a tape measure.
Position the end of tape measure at symbol " ".
4 Finish the installation by securing the mounting plate on the wall using
M4×25L screws (field supply).
INFORMATION
The removed pipe port cover can be kept in the mounting plate pocket.
