9 | Finishing the indoor unit installation
Installer reference guide
42
FTXTP-M_FTXTP-N
Daikin room air conditioner
4P728168-4 – 2023.03

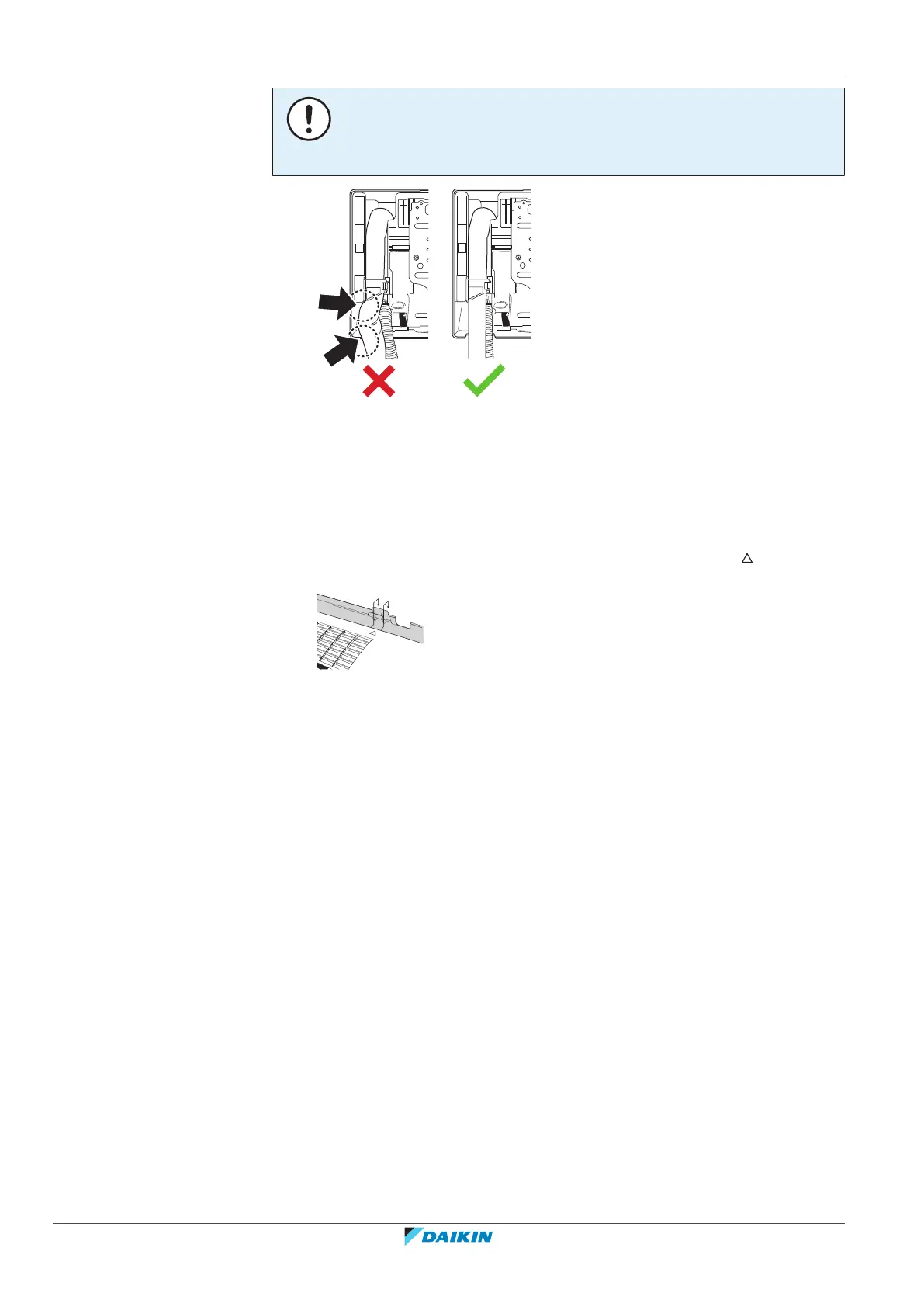

NOTICE
▪ Do NOT bend refrigerant pipes.
▪ Do NOT push the refrigerant pipes onto the bottom frame or the front grille.
2 Pass the drain hose and refrigerant piping through the wall hole and seal the
gap with a putty.
9.3 To fix the unit on the mounting plate
1 Set the indoor unit on the mounting plate hooks. Use the " " marks as a
guide.
2 Press the bottom frame of the unit with both hands to set it on the bottom
hooks of the mounting plate. Make sure that the wires do NOT get squeezed
anywhere.
Note: Take care that the interconnection cable does NOT get caught in the indoor
unit.
3 Press the bottom edge of the indoor unit with both hands until it is firmly
caught by the mounting plate hooks.
4 Secure the indoor unit to the mounting plate using 2 indoor unit fixing screws
M4×12L (accessory).
9.4 Closing the unit
9.4.1 To re-install the front grille
1 Install the front grille and firmly engage the 3 upper hooks.
2 Install 2 screws back on the front grille.
3 Install the air filter and then mount the front panel.
9.4.2 To close the service cover
1 Place the service cover to its original place on the unit.
2 Install 1 screw back on the service cover.
